JGR8775QDS 02 – CAVITY

JGR8775QDS 02 – CAVITY

Written by

in

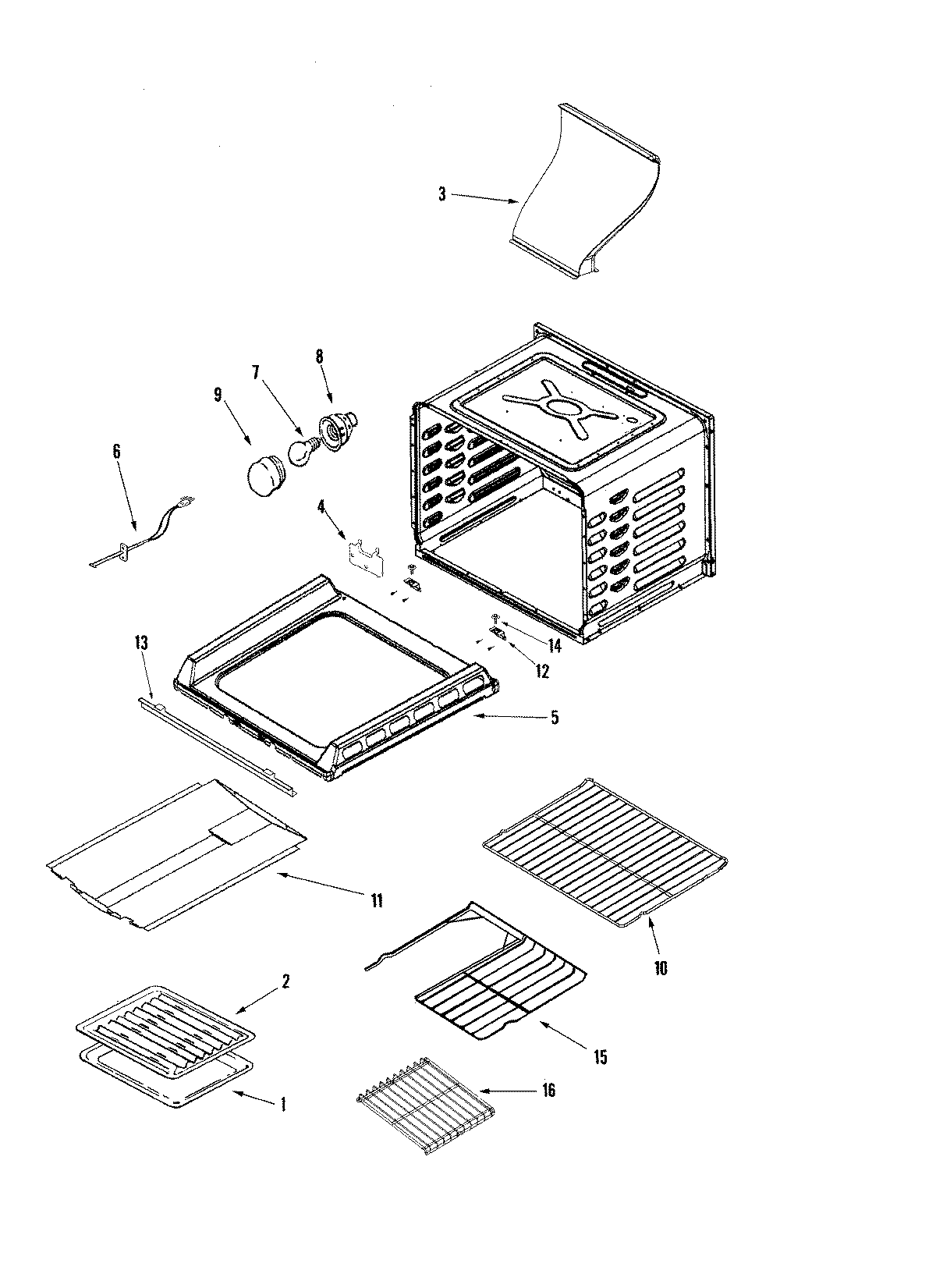

JGR8775QDS 02 – CAVITY

Products

PositionProduct
1MAY Y3401F02019
2MAY Y3413F01619
3MAY 74008817
4MAY 4005F421-45
5WPW10211368 Whirlpool Oven Bottom
612001655 Whirlpool Oven Sensor
7MAY Y707319
8WP74011278 Whirlpool Light
9MAY 71001867
10WP74008763 Whirlpool Oven Rack
11BAFFLE, BAKE BURNER
12SUPPORT, OVEN BOTTOM (REAR)
13SUPPORT, OVEN BOTTOM (FRONT)
14WP74003976 Whirlpool Screw
15MAY 74008924
16INSERT, HALF RACK 30“
