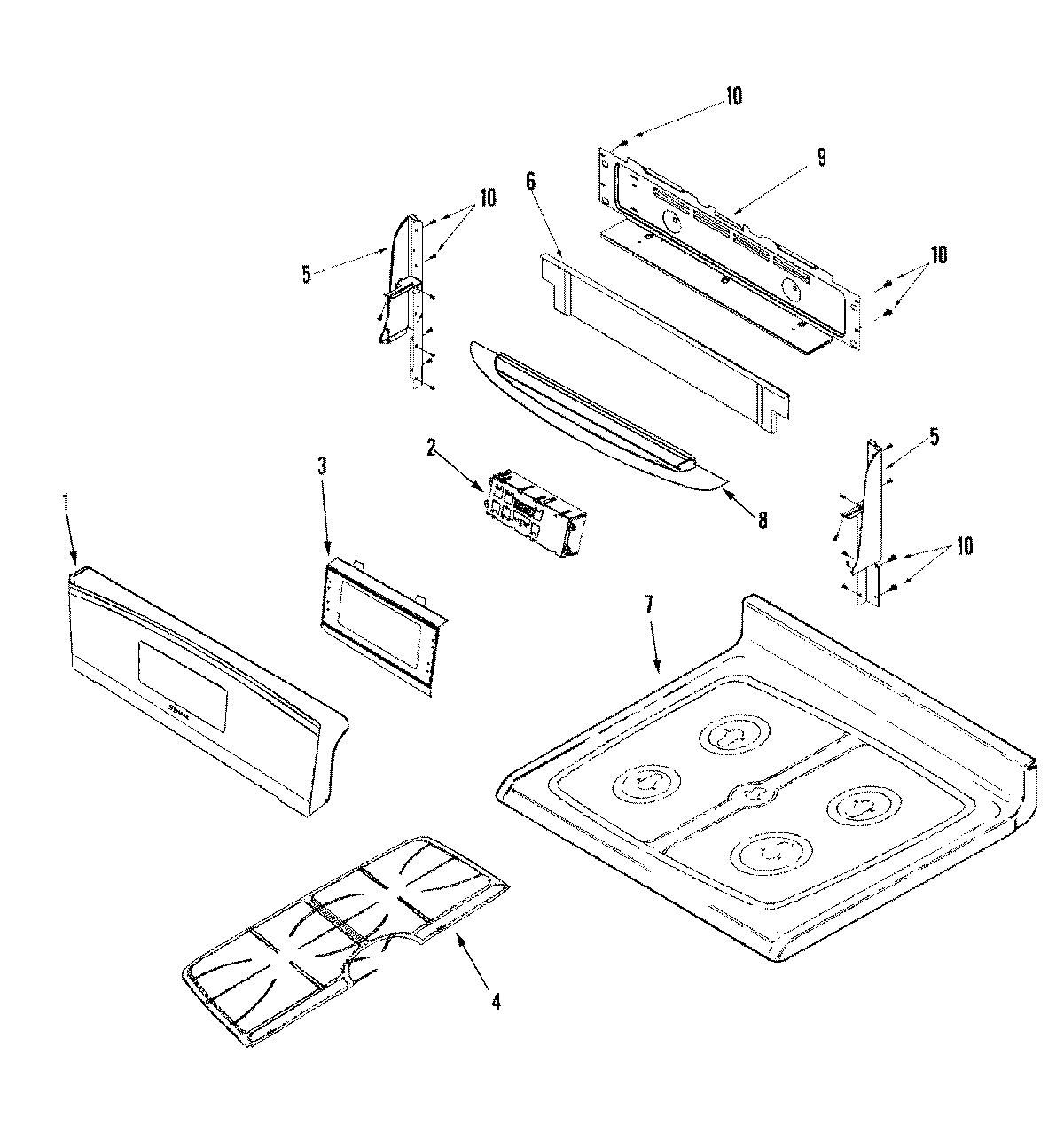

JGR8775QDS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008679
2MAY 74009155
3MAY 74008716
4MAY 74009143
4W10919249 Whirlpool Burner Grate Foot
4MAY M0275597
5End Cap (Left Black)
5End Cap (Right Black)
6MAY 74008725
7MAY 74009086
8SHIELD, HEAT VISOR (BLK)
8MAY 74008825
8SCREW, SHOULDER
9MAY 74009093
9MAY 74008730
9MAY 74008836
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
