JGR8775QDS 04 – DOOR/DRAWER (STL)

JGR8775QDS 04 – DOOR/DRAWER (STL)

Written by

in

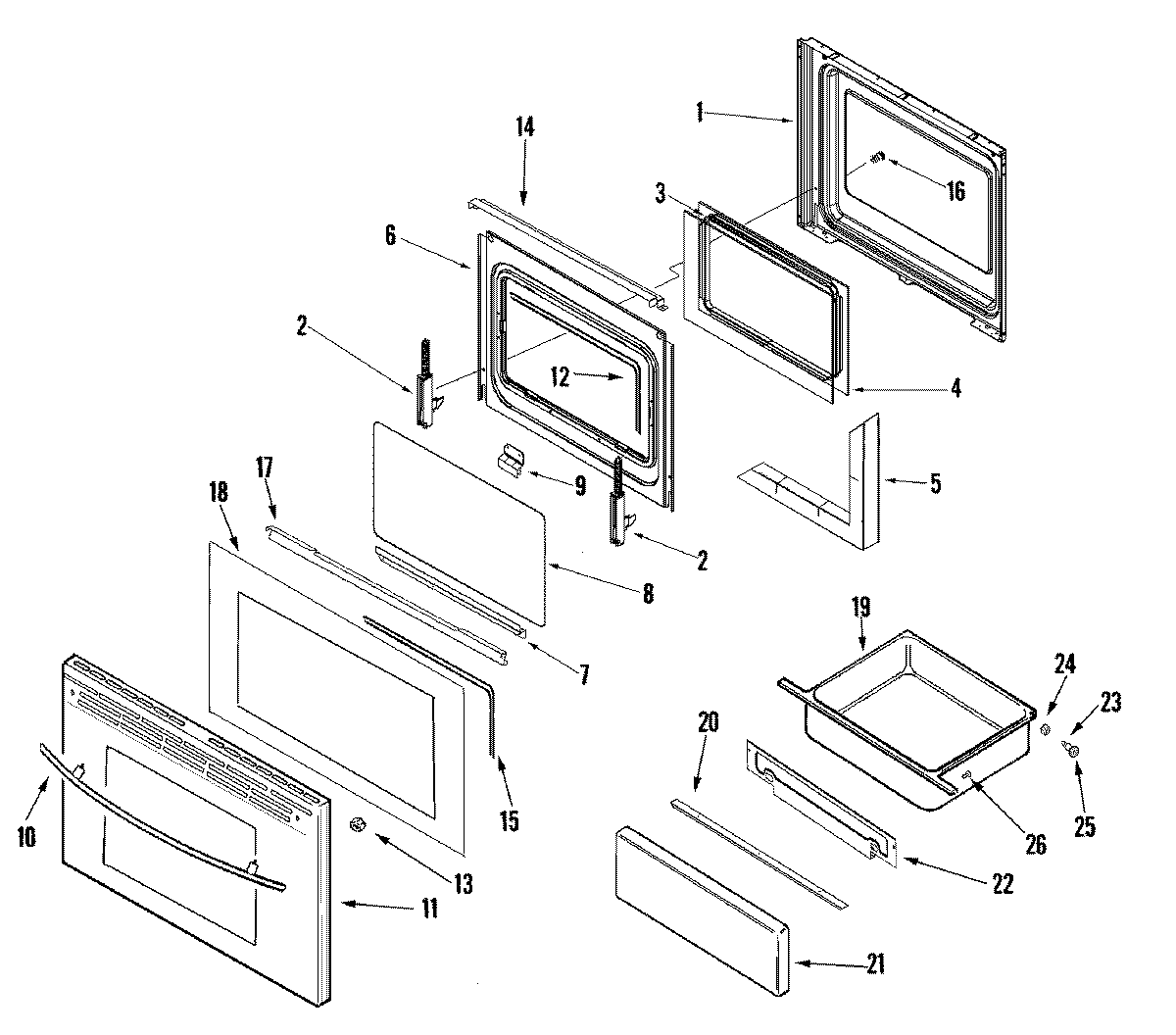

JGR8775QDS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008920
11MAY 74008923
12Gasket, Window
13MAY 715634
14Baffel, Door
1574008916 Whirlpool Window Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008925
19WP3405F037-80 Whirlpool Utility Drawer
20MAY 74008909
21MAY 74009024
22MAY 74009026
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26SCREW
