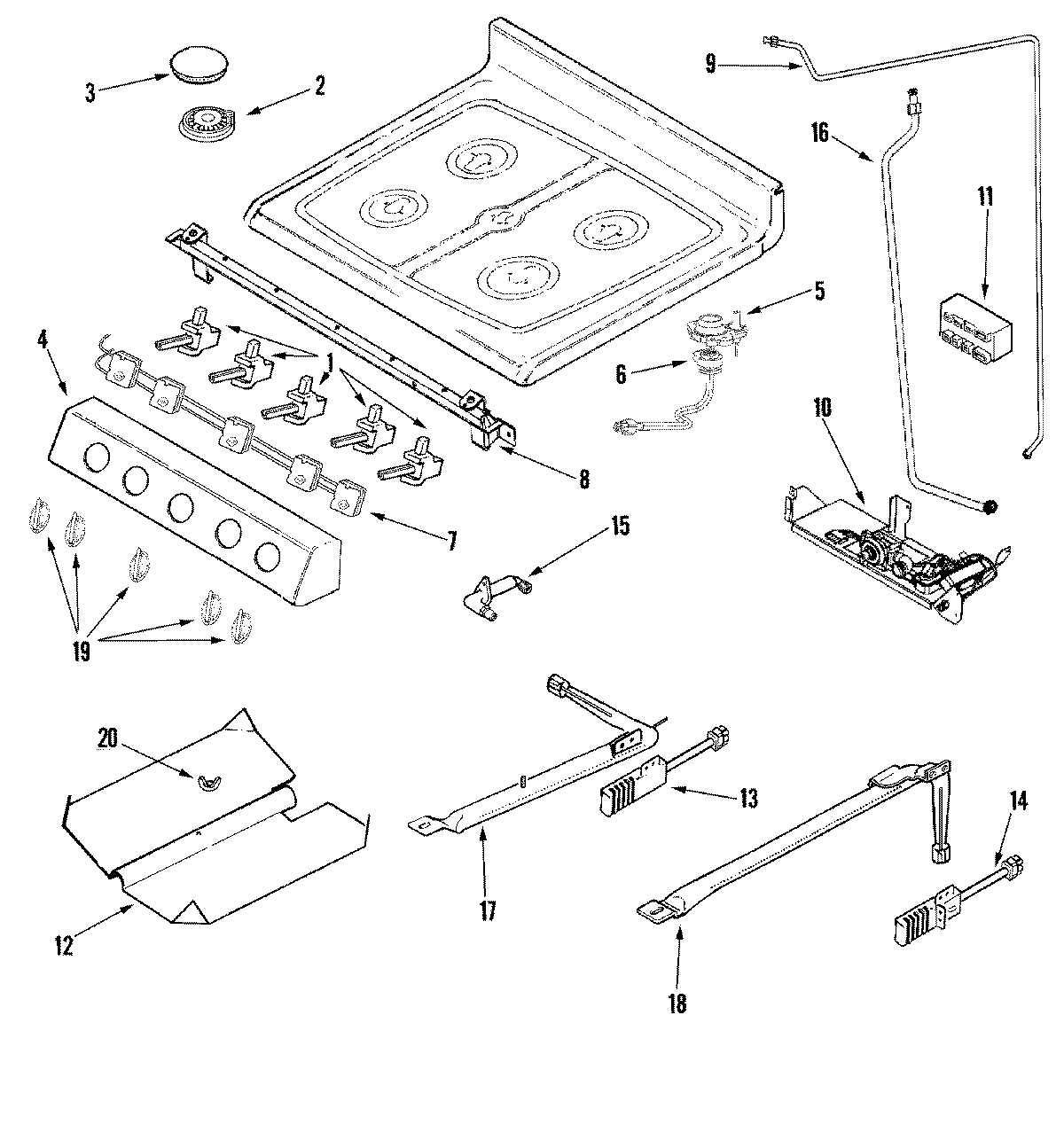

JGR8775QDS 05 – GAS CONTROLS

Products

PositionProduct
1WP74009857 Whirlpool Screw
1MAY 12002236
1MAY 74008810
1MAY 74008811
1MAY 74008812
1MAY 74008814
1MAY 74009391
1VALVE, BURNER (5K COPRECI)
1VALVE, 16K (COPRECI)
1VALVE, 12K (COPRECI)
1MAY 12002235
2WPW10406878 Whirlpool Burner Base (16K)
2WP400021-1 Whirlpool Screw
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
3WP74007925 Whirlpool Burner Cap
3WP3191898 Whirlpool Surface Burner Cap Black
3WPW10154101 Whirlpool Burner Cap
4W11693756 Whirlpool Screw Assembly
4PANEL, MANIFOLD (STL)
5WP74009958 Whirlpool Spark Electrode Assembly
6MAY 74009101
6MAY 74009102
6WP74009099 Whirlpool Orifice Holder
6MAY 74009103
6W10154209 Whirlpool Orifice Holder
7MAY 74009392
7MAY 74008816
7WP74010753 Whirlpool Harness Assembly
8MAY 74008815
9TUBING, SUPPLY
9MAY 71003231
10MAY 74008808
1174009098 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14SCREW (10-24X5/16-NI)
14WP7432P136-60 Whirlpool Oven Igniter
1574008818 Whirlpool Broil Burner Fitting
15SCREW
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19WP74009148 Whirlpool Valve Knob
20NUT, WING
