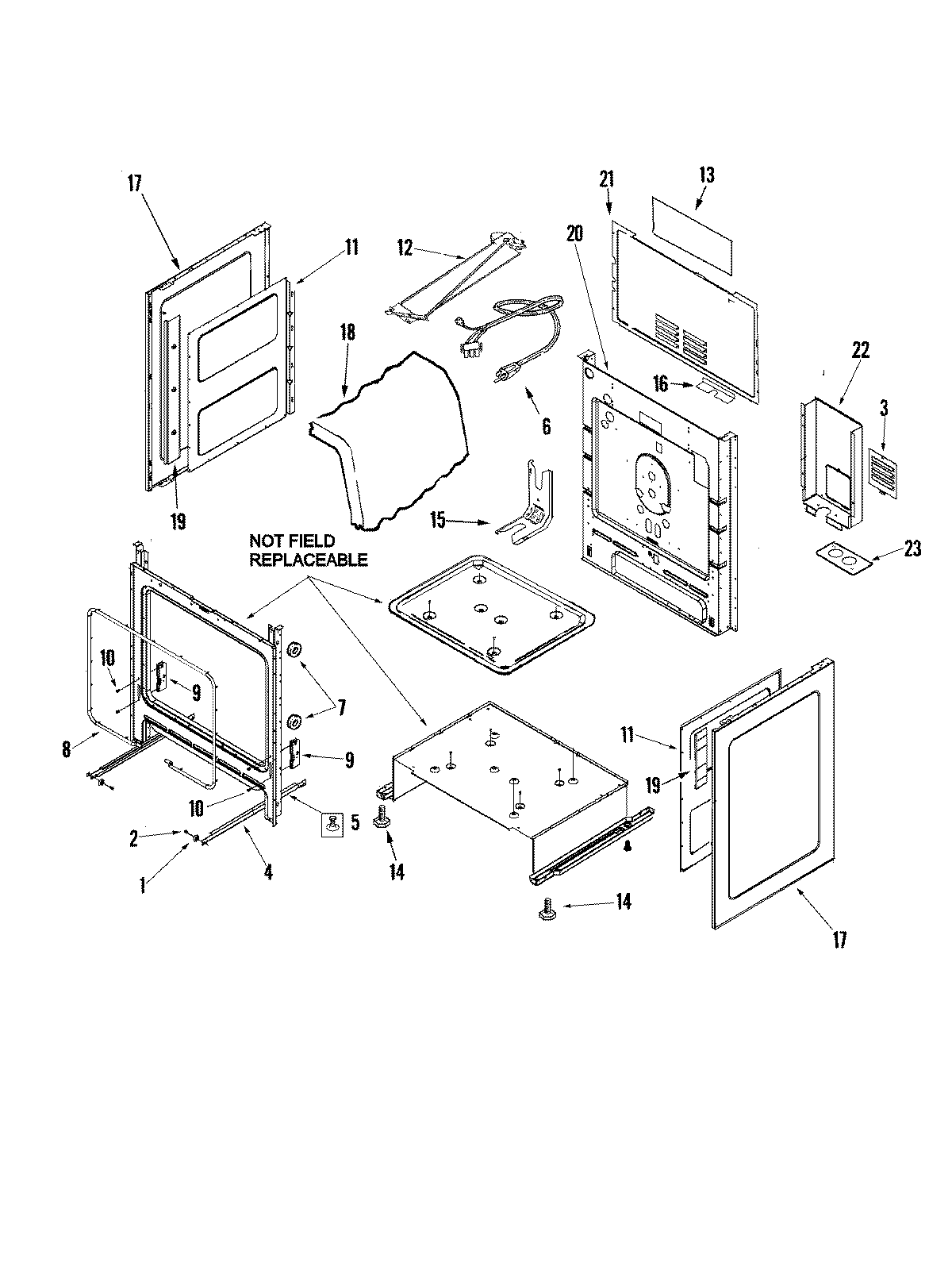

JGR8775RDB 01 – CABINET

JGR8775RDB 01 – CABINET

Written by

in

JGR8775RDB 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
3MAY 74008340
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 7002P494-60
11MAY 3804F316-51
11MAY 74008701
12MAY 74011896
12MAY 8002P104-60
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12SCREW
13MAY 74008858
1474008835 Whirlpool Clip Retainer
14W11665456 Whirlpool Range Level Foot
15WP7101P485-60 Whirlpool Anchor Tip
15WP3801F656-51 Whirlpool Range Anti-Tip Bracket
16BOTTOM, REAR COVER
17WP74003976 Whirlpool Screw
17MAY 74008710
18MAY 74008698
18INSULATION, WRAPPER
19MAY 74009956
20MAY 74008828
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
