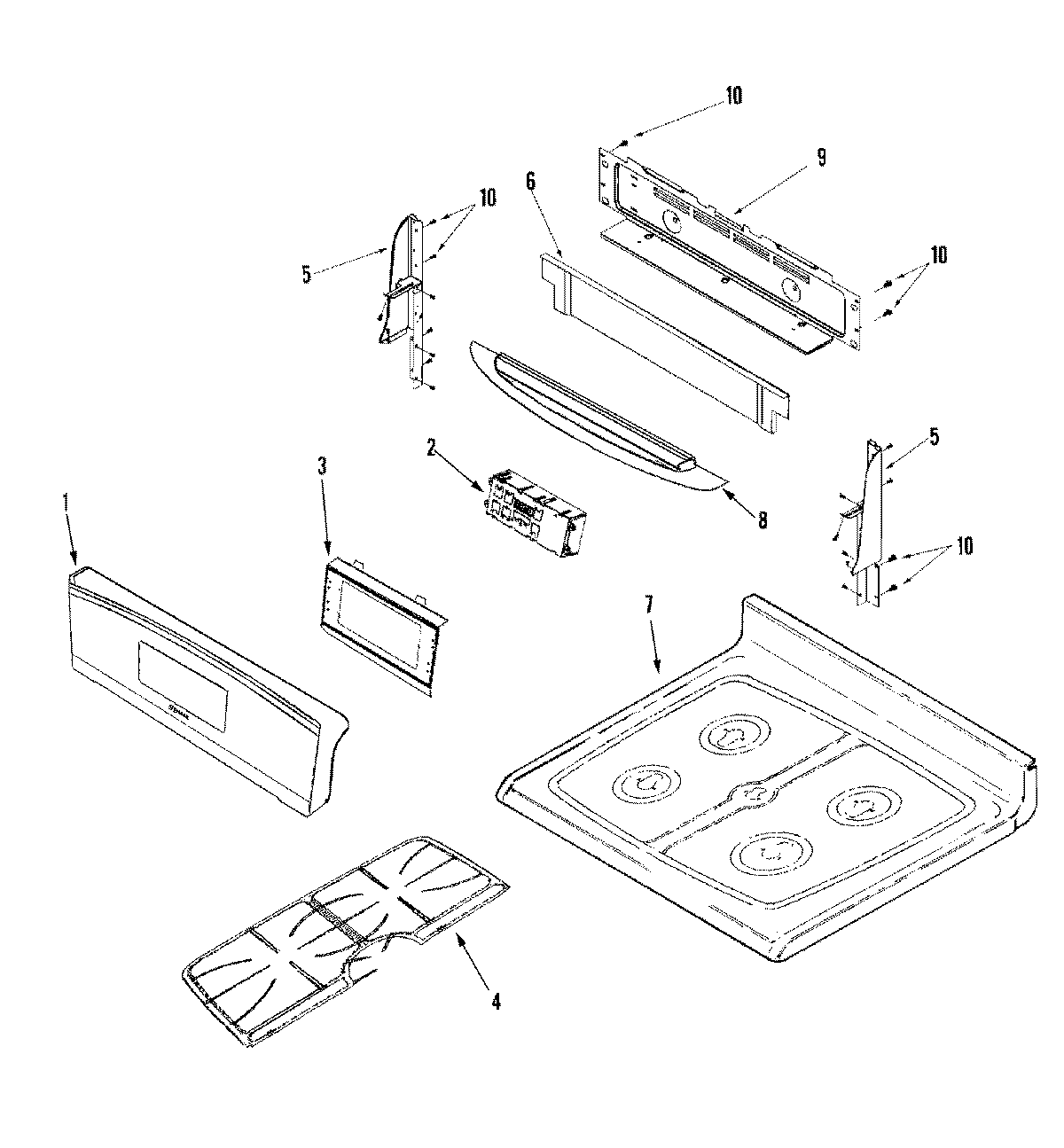

JGR8775RDB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 5751M724-60
2	MAY 8507P329-60
3	MAY 74011982
4	MAY 74009143
4	MAY M0275597
4	W10919249 Whirlpool Burner Grate Foot
5	End Cap (Left Black)
5	End Cap (Right Black)
6	MAY 74009444
7	MAY 74009086
8	SCREW, SHOULDER
8	SHIELD, HEAT VISOR (BLK)
9	MAY 74010983
9	MAY 74008836
9	SCREW (8BX3/8-NI)
10	SCREW
