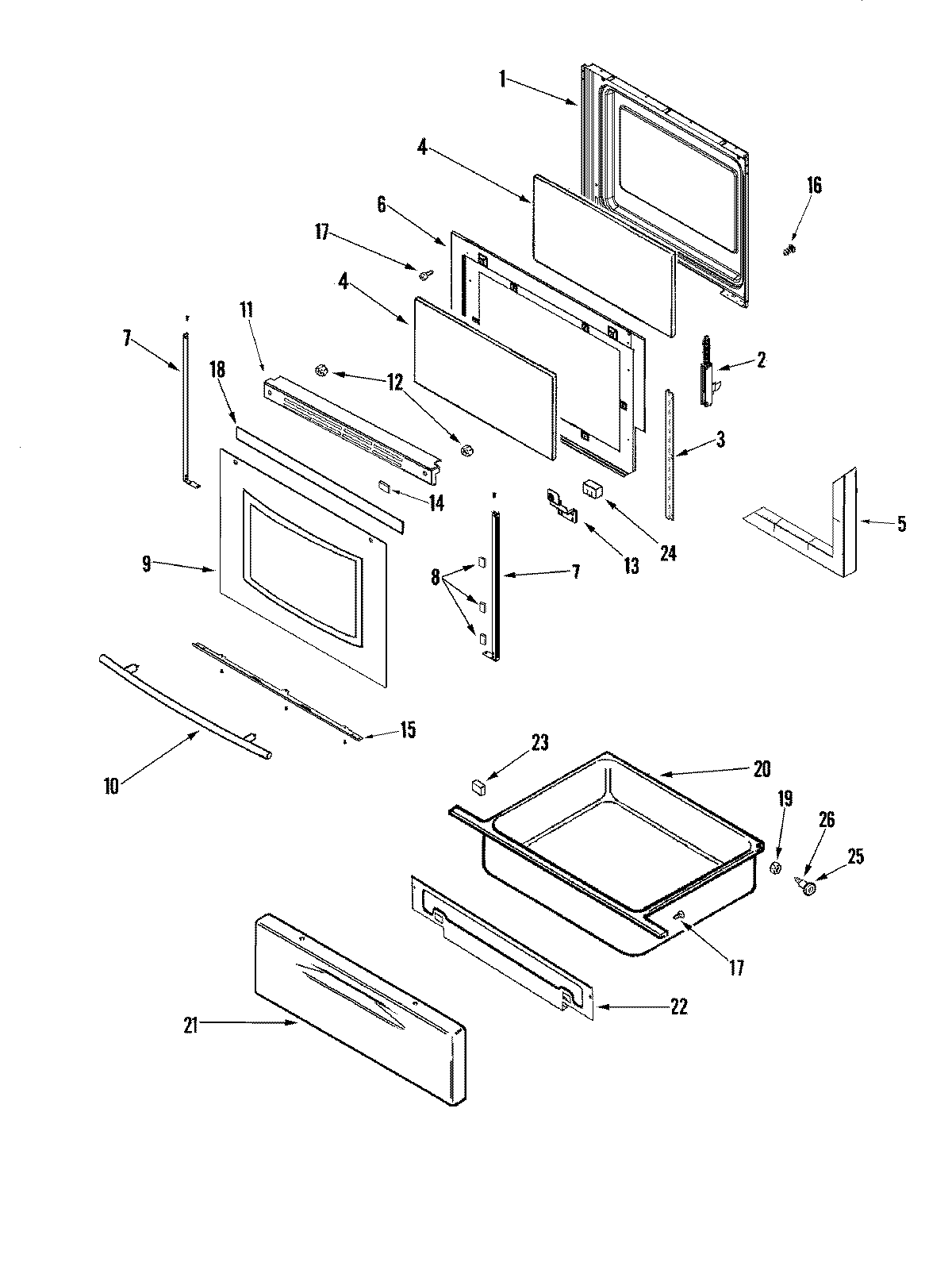

JGR8775RDB 04 – DOOR/DRAWERadmin2025-04-26T09:02:06+00:00JGR8775RDB 04 – DOOR/DRAWER
Products
| Position | Product |
|---|
| 1 | MAY 74008926 |
| 2 | 74010546 Whirlpool Range Oven Door Hinge |
| 3 | 3801F886-51 Whirlpool Mounting Bracket |
| 4 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 5 | INSULATION, OVEN DOOR |
| 6 | Retainer, Side |
| 7 | MAY 74010560 |
| 8 | WP74009025 Whirlpool Double Sided Tape |
| 9 | MAY 74008686 |
| 10 | MAY 74008920 |
| 11 | WP98008545 Whirlpool Screw |
| 11 | MAY 74008890 |
| 12 | WP3400029 Whirlpool Dishwasher Nut |
| 13 | BRACKET, DOOR HANDLE (RT) |
| 13 | BRACKET, DOOR HANDLE (LT) |
| 14 | WP74004224 Whirlpool Tape |
| 15 | TRIM, BOTTOM (BLK) |
| 16 | SCREW (10-24X5/16-NI) |
| 17 | SCREW |
| 18 | TAPE, FOIL (3`` WIDE) |
| 19 | WP488130 Whirlpool Air Conditioner Nut |
| 20 | WP3405F037-80 Whirlpool Utility Drawer |
| 21 | PANEL, DRAWER (BLK) |
| 22 | SHIELD, DRAWER HEAT |
| 23 | WP74005546 Whirlpool RU Spacer |
| 24 | INSULATION, CORNER (DOOR) |
| 25 | SHAFT, STORAGE DRAWER ROLLER |
| 26 | WP74004078 Whirlpool Door Roller |
