JGR8850ADA 01 – BODY

JGR8850ADA 01 – BODY

Written by

in

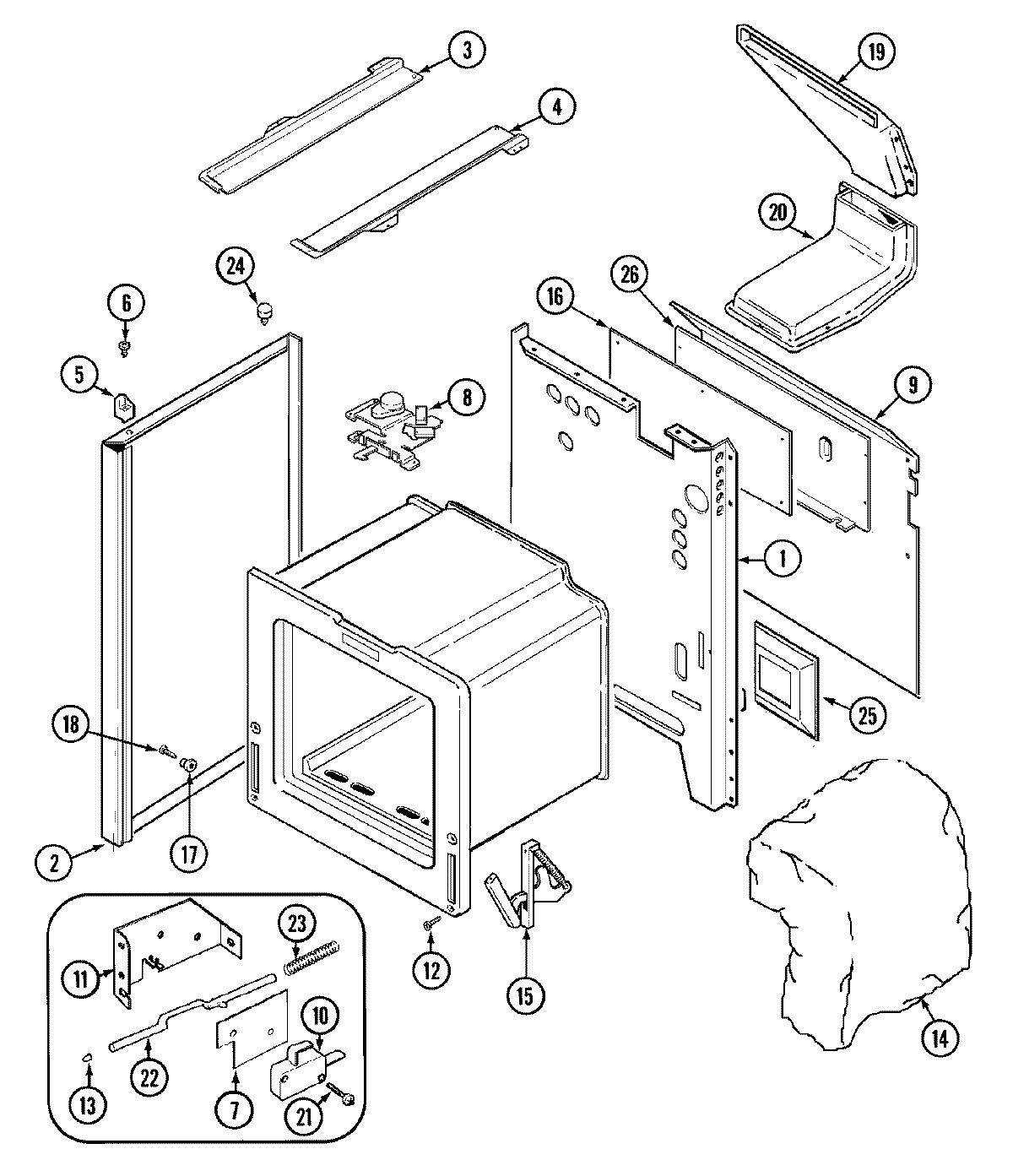

JGR8850ADA 01 – BODY

Products

PositionProduct
1MAY 74003451
2MAY 74003237
2MAY 8270P078-60
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74001872
8MAY 74003559
9MAY 4005F331-51
10MAY 74001802
11BRACKET, SWITCH ACTUATOR
11WPY706189 Whirlpool Stove Screw
12SCREW (10-24X5/16-NI)
13MAY 74001631
14MAY 74003381
14WP74010942 Whirlpool Insulation
15HINGE-OVEN DOOR
16SCREW
16MAY 3604F165-51
17MAY 8004P024-60
18MAY 74001449
18W11693756 Whirlpool Screw Assembly
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20MAY 74002367
20WP74003976 Whirlpool Screw
21MAY 7101P330-60
22ROD, DOOR LIGHT SWITCH
24MAY 8010P048-60
25MAY 74001801
26MAY 74002598
