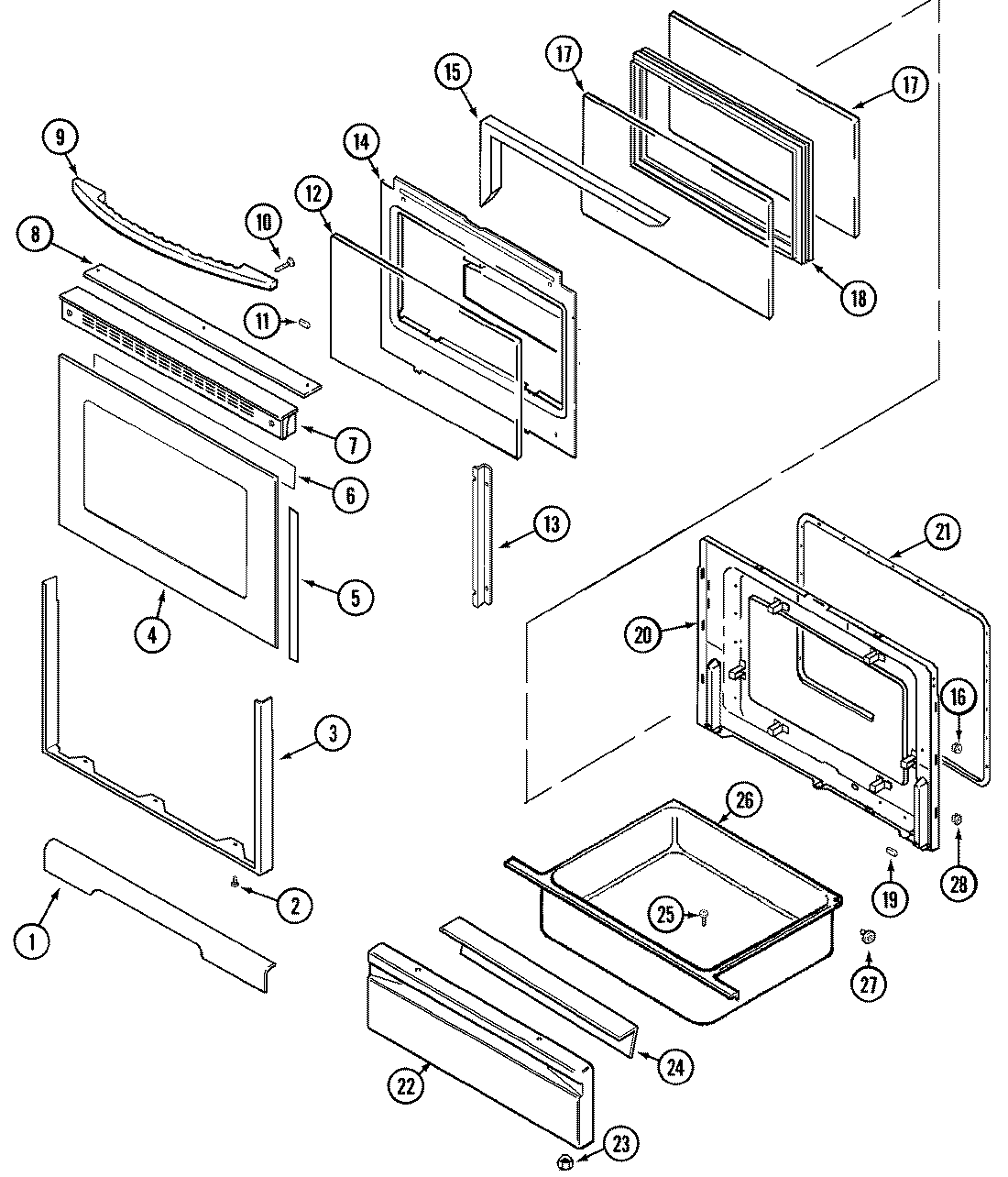

JGR8850ADB 03 – DOOR/DRAWER
Written by
in
JGR8850ADB 03 – DOOR/DRAWER
Products
Position
Product
1
MAY 74003669
1
WP4159193 Whirlpool Screw
3
MAY 74004841
3
MAY 74004324
4
MAY 74003662
5
MAY 74003660
6
TAPE, FOIL 29“ X 2“
7
WP74003652 Whirlpool Door Trim
7
WP98008545 Whirlpool Screw
9
MAY 74003655
10
WP179051 Whirlpool Screw
11
MAY 71002092
12
GLASS, DOOR
13
MAY 74003650
14
MAY 74003648
15
INSULATION, OVEN DOOR
16
NUT, SNAP (ROUND-BLK)
17
74003645 Whirlpool Range Oven Door Inner Glass
18
FRAME, GLASS
19
MAY 8010P085-60
20
MAY 74003642
21
GASKT-DOOR OVEN
22
MAY 71003056
23
WPW10131078 Whirlpool Nut Assembly
24
LINING, DRAWER PANEL
25
SCREW
26
MAY 71003042
27
WP488130 Whirlpool Air Conditioner Nut
27
MAY 74003566
28
MAY 74003643
←
