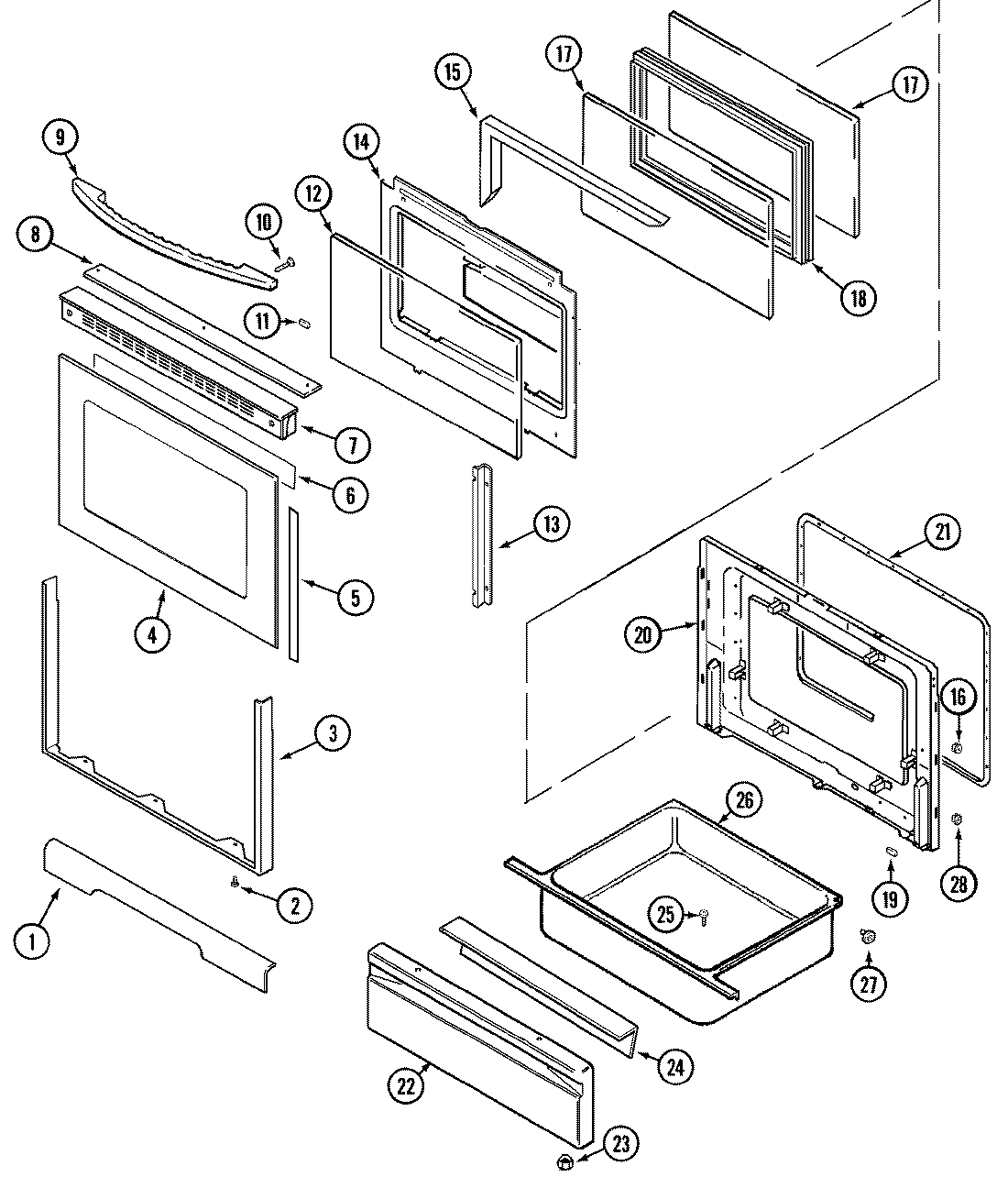

JGR8850ADW 03 – DOOR/DRAWER
Written by
in
JGR8850ADW 03 – DOOR/DRAWER
Products
Position
Product
1
MAY 74003670
1
WP4159193 Whirlpool Screw
3
MAY 74004325
3
MAY 74004842
4
MAY 74003663
5
MAY 74003660
6
TAPE, FOIL 29“ X 2“
7
WP98008544 Whirlpool Screw Assembly
7
WP74003653 Whirlpool Door Trim
8
MAY 7728P094-60
8
MAY 74001278
9
MAY 74003656
10
WP179051 Whirlpool Screw
11
MAY 71002092
12
GLASS, DOOR
13
MAY 74003650
14
MAY 74003648
15
INSULATION, OVEN DOOR
16
NUT, SNAP (ROUND-BLK)
17
74003645 Whirlpool Range Oven Door Inner Glass
18
FRAME, GLASS
19
MAY 8010P085-60
20
MAY 74003642
21
GASKT-DOOR OVEN
22
MAY 71003055
23
WPW10131078 Whirlpool Nut Assembly
24
LINING, DRAWER PANEL
25
SCREW
26
MAY 71003042
27
MAY 74003566
27
WP488130 Whirlpool Air Conditioner Nut
28
MAY 74003643
←
