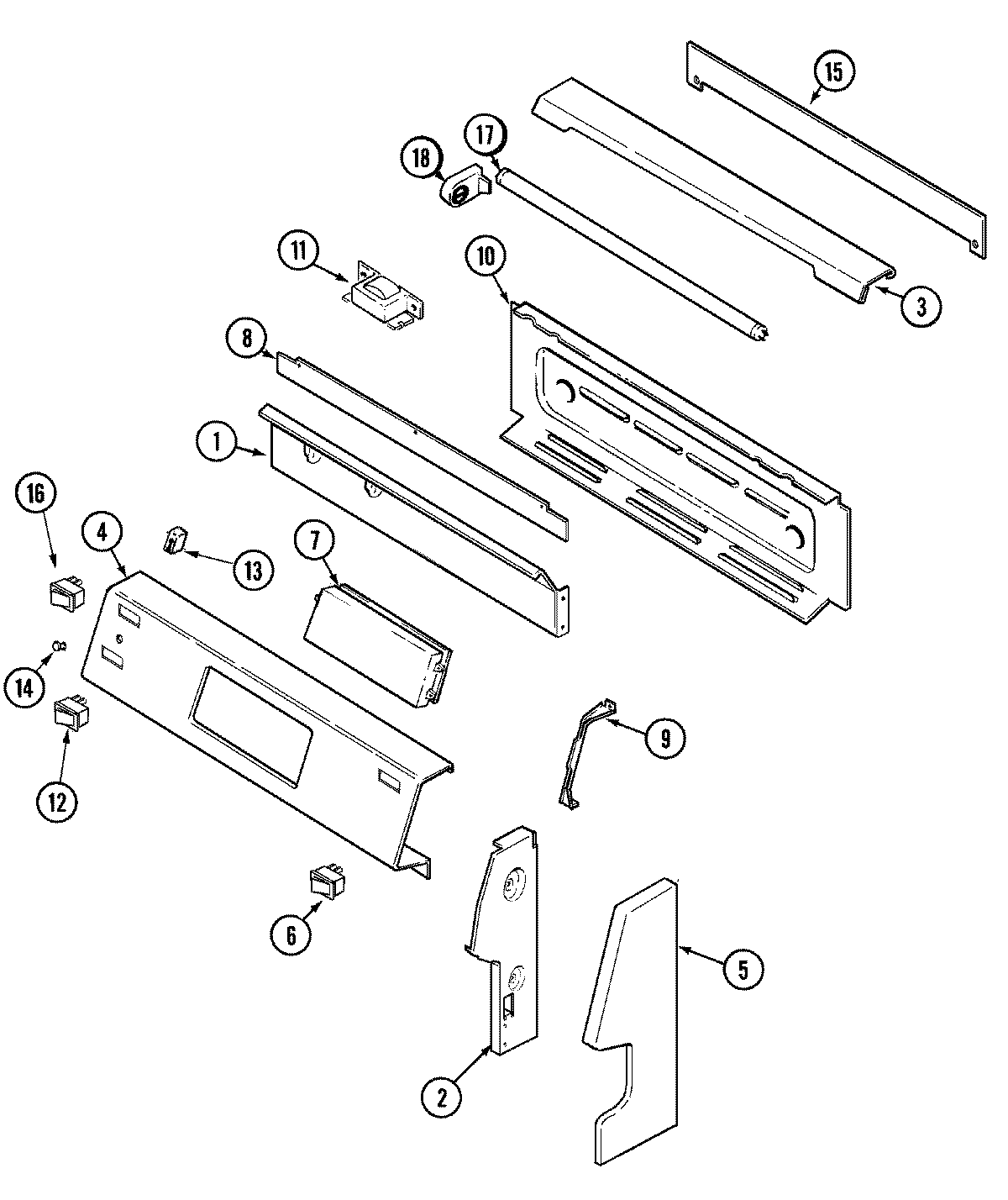

JGR8850BDB 02 – CONTROL PANEL

JGR8850BDB 02 – CONTROL PANEL

Written by

in

JGR8850BDB 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74003488
2MAY 74003489
2MAY 74003490
3MAY 74003573
4MAY 74006732
5MAY 74003575
5MAY 74003574
5WP98008545 Whirlpool Screw
5MAY 74002432
6MAY 74003363
7MAY 74006227
7WP59002061 Whirlpool Microwave Screw
8MAY 8036P003-60
9MAY 74003550
9WPY706189 Whirlpool Stove Screw
10MAY 74004963
10SCREW (8BX3/8-NI)
10MAY 74006536
11MAY 74003033
11SCREW
12MAY 74006701
13WP903115 Whirlpool Dishwasher Indicator Light
14WP7730P011-60 Whirlpool Indicator Lens
15MAY 74003558
16MAY 74003571
17WP95292 Whirlpool Fluorescent Light Bulb
18MAY 7408P030-60
19MAY 74005475
19MAY 74005921
20MAY 16010161
21MAY 74006516
21MAY 12001323
21MAY 74006709
21MAY 74006710
21MAY 74006693
