JGR8855ADS 03 – DOOR/DRAWER

JGR8855ADS 03 – DOOR/DRAWER

Written by

in

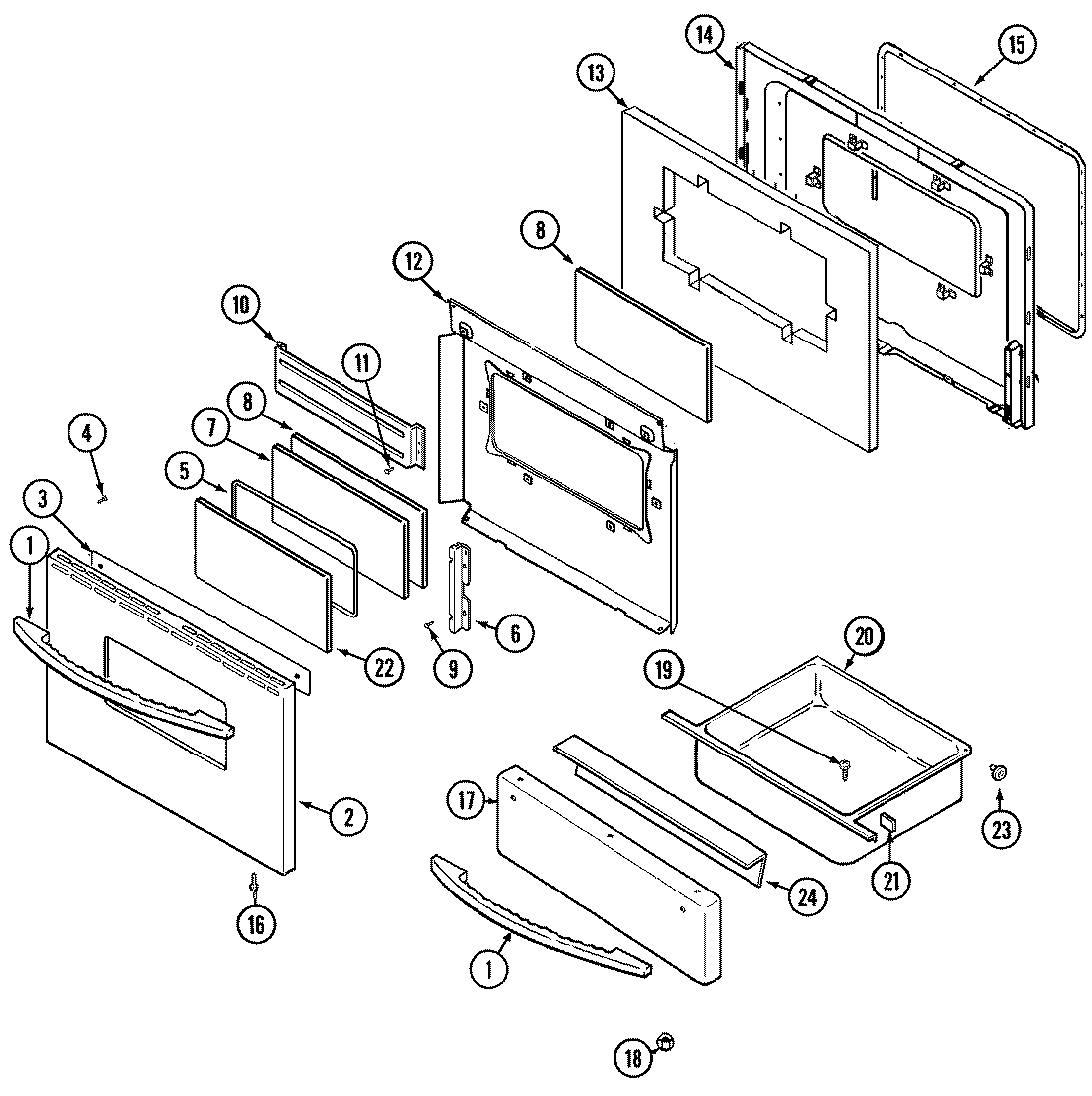

JGR8855ADS 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 71003204
2MAY 74003698
3MAY 74003146
4WP179051 Whirlpool Screw
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8MAY 74001841
10MAY 74003050
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14MAY 74003244
15GASKT-DOOR OVEN
16SCREW
17MAY 74004045
18WPW10131078 Whirlpool Nut Assembly
19WP7101P072-60 Whirlpool Screw
20MAY 71003042
21MAY 8010P085-60
22MAY 74001072
23MAY 74003566
23WP488130 Whirlpool Air Conditioner Nut
24LINING, DRAWER PANEL
