JGR8875QDW 04 – DOOR/DRAWER
Written by
in

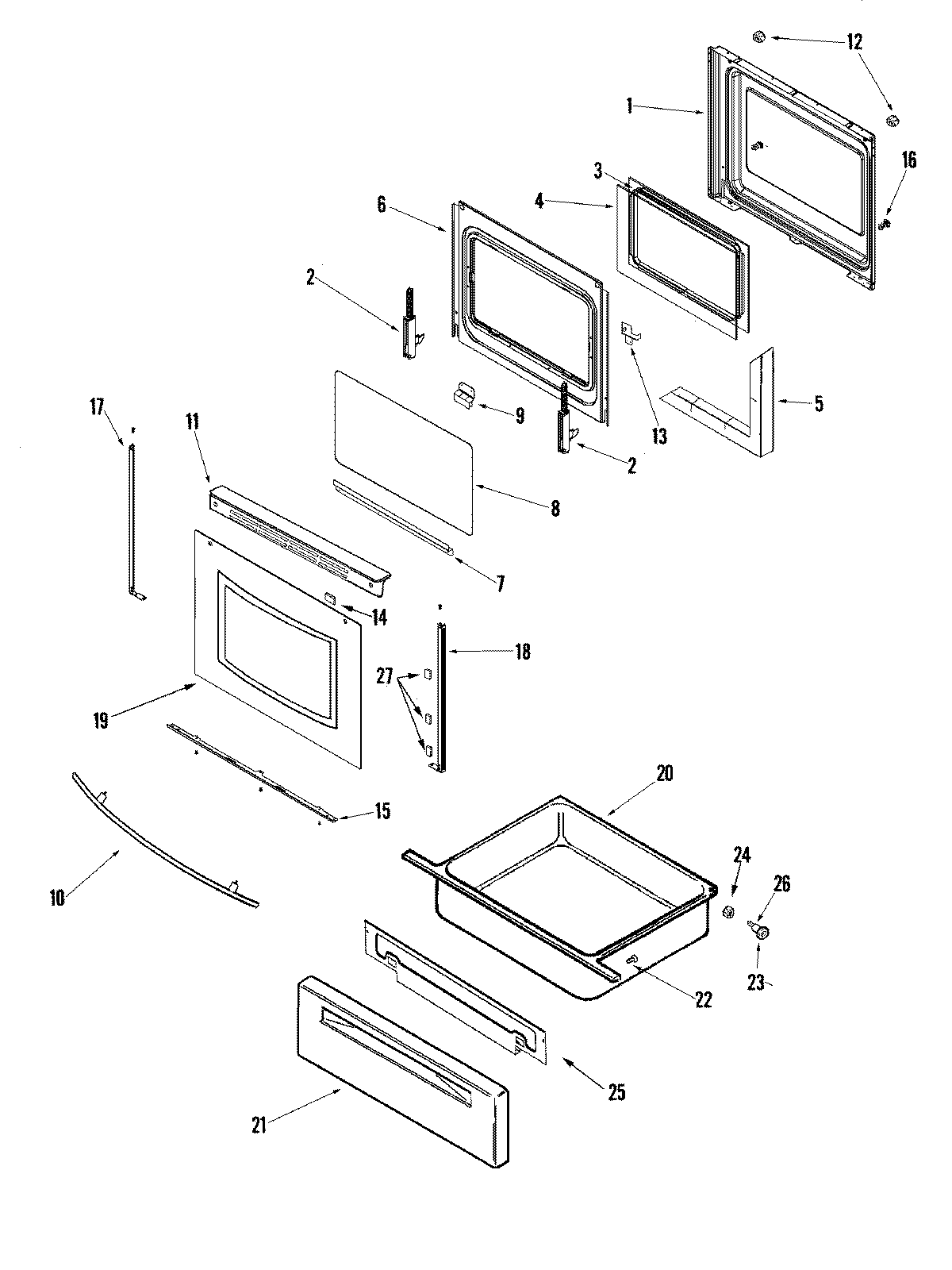

JGR8875QDW 04 – DOOR/DRAWER
Products
Position
Product
1
MAY 74008926
2
74010546 Whirlpool Range Oven Door Hinge
3
FRAME, GLASS
4
74003645 Whirlpool Range Oven Door Inner Glass
5
INSULATION, OVEN DOOR
6
MAY 74008744
7
MAY 74008745
8
GLASS, DOOR
9
Trim, Door Top (Black)
10
MAY 74008920
11
MAY 74008747
11
WP98008544 Whirlpool Screw Assembly
12
MAY 715634
13
MAY 74008750
13
MAY 74008749
14
WP74004224 Whirlpool Tape
15
WP3608F092-71 Whirlpool Bottom Trim
16
SCREW (10-24X5/16-NI)
17
MAY 74008753
18
MAY 74008751
18
MAY 74010561
19
GLASS, DOOR (WHT)
20
WP3405F037-80 Whirlpool Utility Drawer
21
PANEL, DRAWER (WHT)
22
SCREW
23
WP74004078 Whirlpool Door Roller
24
WP488130 Whirlpool Air Conditioner Nut
25
MAY 74009026
26
SHAFT, STORAGE DRAWER ROLLER
27
WP74009014 Whirlpool Double Tape
28
74007237 Whirlpool Spacer
←
