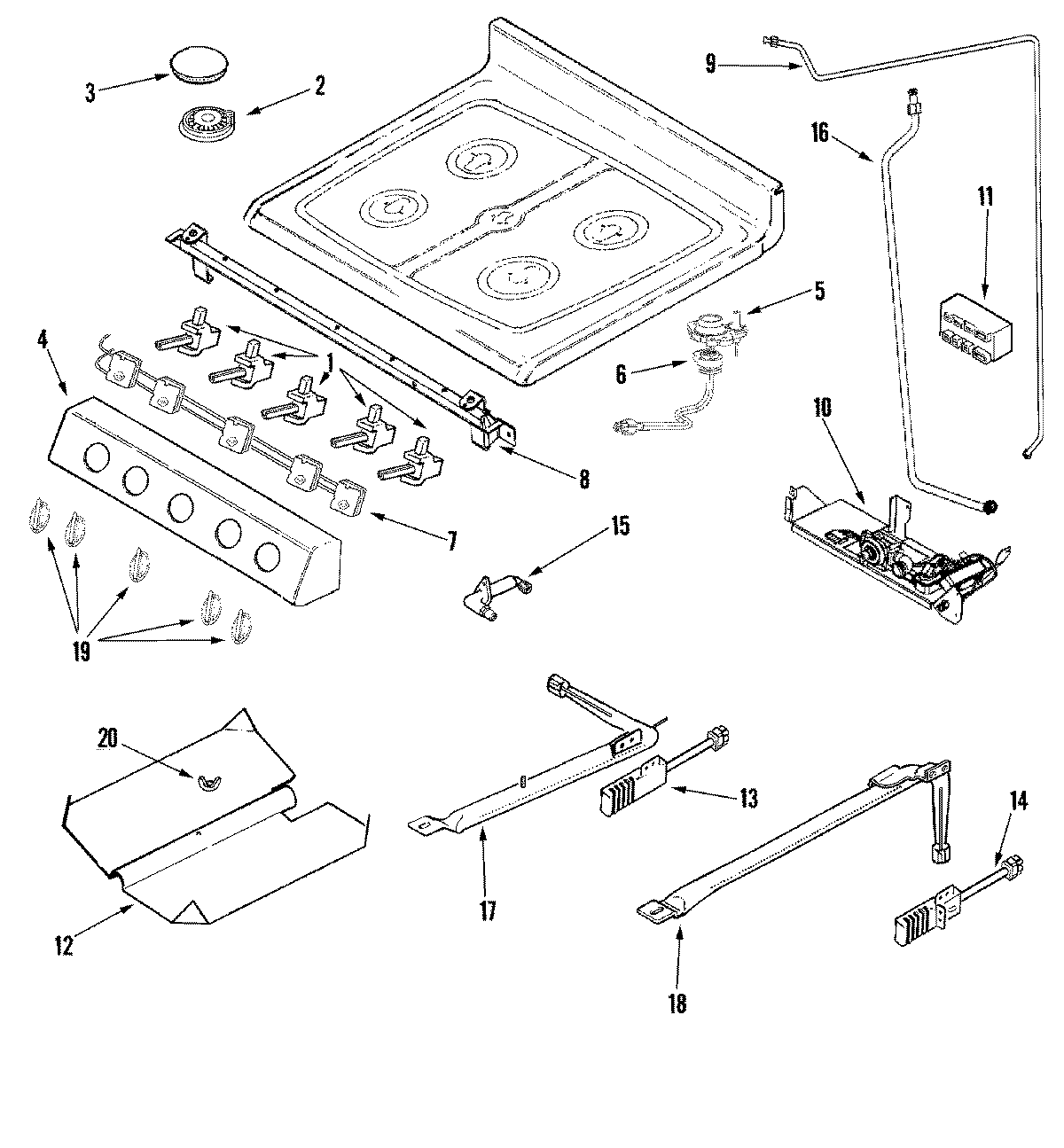

JGR8875RDS 05 – GAS CONTROLS

Products

Position	Product
1	WP74009857 Whirlpool Screw
1	VALVE, 12K (COPRECI)
1	VALVE, 16K (COPRECI)
1	VALVE, BURNER (5K COPRECI)
2	WPW10406878 Whirlpool Burner Base (16K)
2	WP400021-1 Whirlpool Screw
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
3	WP74007925 Whirlpool Burner Cap
3	WP3191898 Whirlpool Surface Burner Cap Black
3	WPW10154101 Whirlpool Burner Cap
4	PANEL, MANIFOLD (STL)
4	74008761 Whirlpool Spacer Snap-In
4	W11693756 Whirlpool Screw Assembly
5	WP74009958 Whirlpool Spark Electrode Assembly
6	ORIFICE HOLDER/TUBE ASY (LF)
6	W10154209 Whirlpool Orifice Holder
6	WP74009099 Whirlpool Orifice Holder
6	ORIFICE HOLDER/TUBE ASY (CTR)
6	MAY 7527P100-60
7	WP74010753 Whirlpool Harness Assembly
8	MAY 74008815
9	TUBING, SUPPLY
10	VALVE/REGULATOR ASSEMBLY
11	74009098 Whirlpool Spark Module
12	MAY 74008819
13	74007498 Whirlpool Range Flat Igniter
14	SCREW (10-24X5/16-NI)
14	WP7432P136-60 Whirlpool Oven Igniter
15	74008818 Whirlpool Broil Burner Fitting
15	SCREW
16	74008830 Whirlpool Oven Broil Tubing
17	BURNER, BROIL
18	MAY 31945701
19	WP74009147 Whirlpool Control Knob
20	NUT, WING
