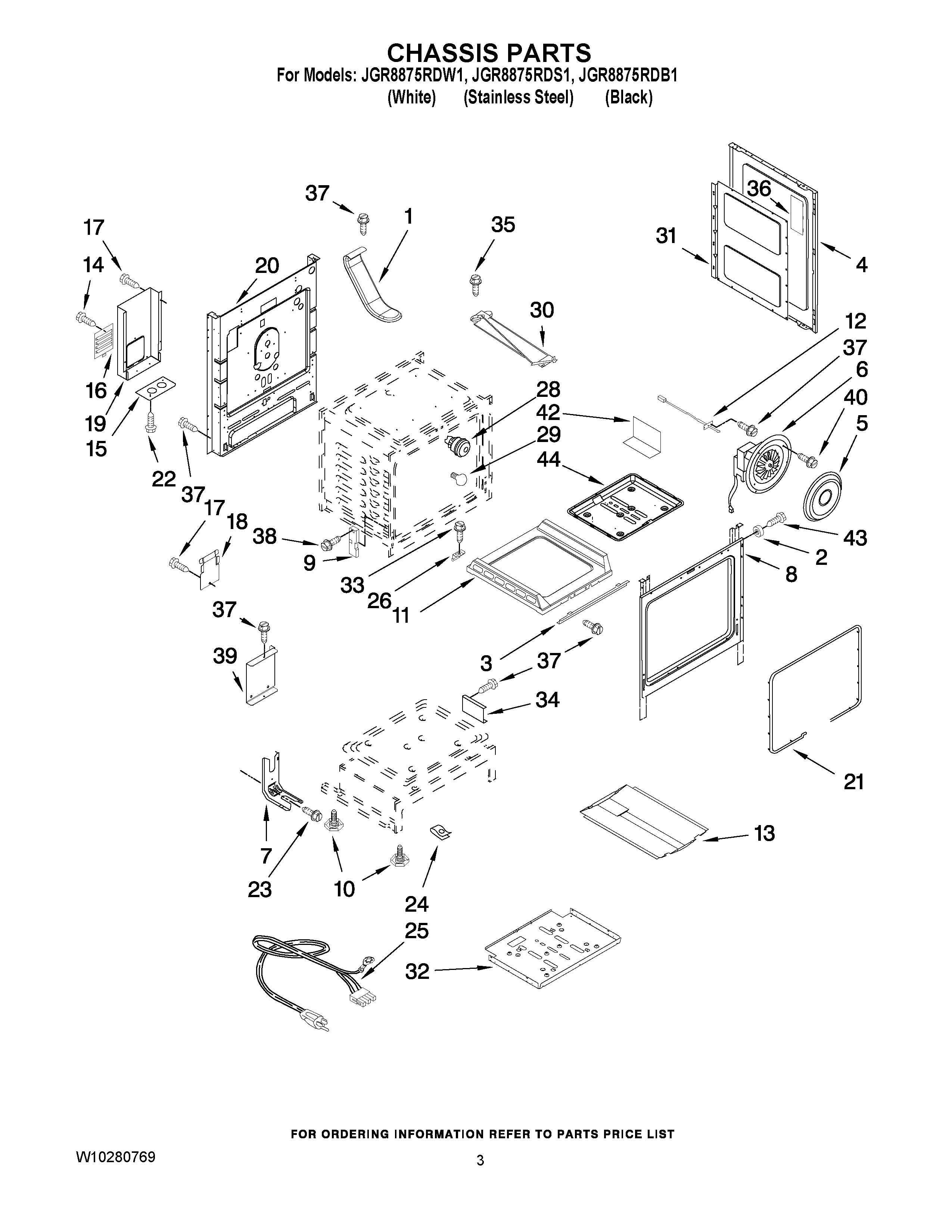

JGR8875RDS1 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P492-60
NI	MAY 7002P424-60
1	MAY 8026P080-60
2	MAY 8010P148-60
3	MAY 3807P680-45
4	MAY 2618F172-69
4	MAY 2618F172-58
5	MAY 3605F305-19
6	MAY 7427P108-60
7	BRACKET, ANTI-TIP
8	LINER (NOT A SERVICEABLE PART)
9	MAY 7106P125-60
10	Leg, Leveling
11	MAY 2205F053-19
12	Sensor, Oven
13	MAY 3601P356-45
14	MAY 3196160
15	PLATE, CONDUIT REINFORCEMENT
16	MAY 4005P704-51
17	MAY 71001394
18	MAY 4005F753-45
19	MAY 4005P703-51
20	MAY 4002F347-51
21	MAY W10162385
22	MAY 7101P336-60
23	SCREW, ANTI-TIP KIT
24	CLIP
25	MAY 7402P109-60
26	MAY 3801P822-45
28	MAY 7407P181-60
29	RANGE ONLY 40W 120V APPL BULB
30	MAY 8002P104-60
31	INSULATION
32	MAY 3604P409-51
33	WP74003976 Whirlpool Screw
34	BRACKET, OVEN SUPPORT
35	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
36	MAY 7002P494-60
37	SCREW, 8 X 1/2
38	SCREW (10-24X5/16-NI)
39	MAY 3801P798-51
42	MAY 7003P142-60
43	SCREW W/SHOULDER (No.8)
44	MAY 3401F082-45
