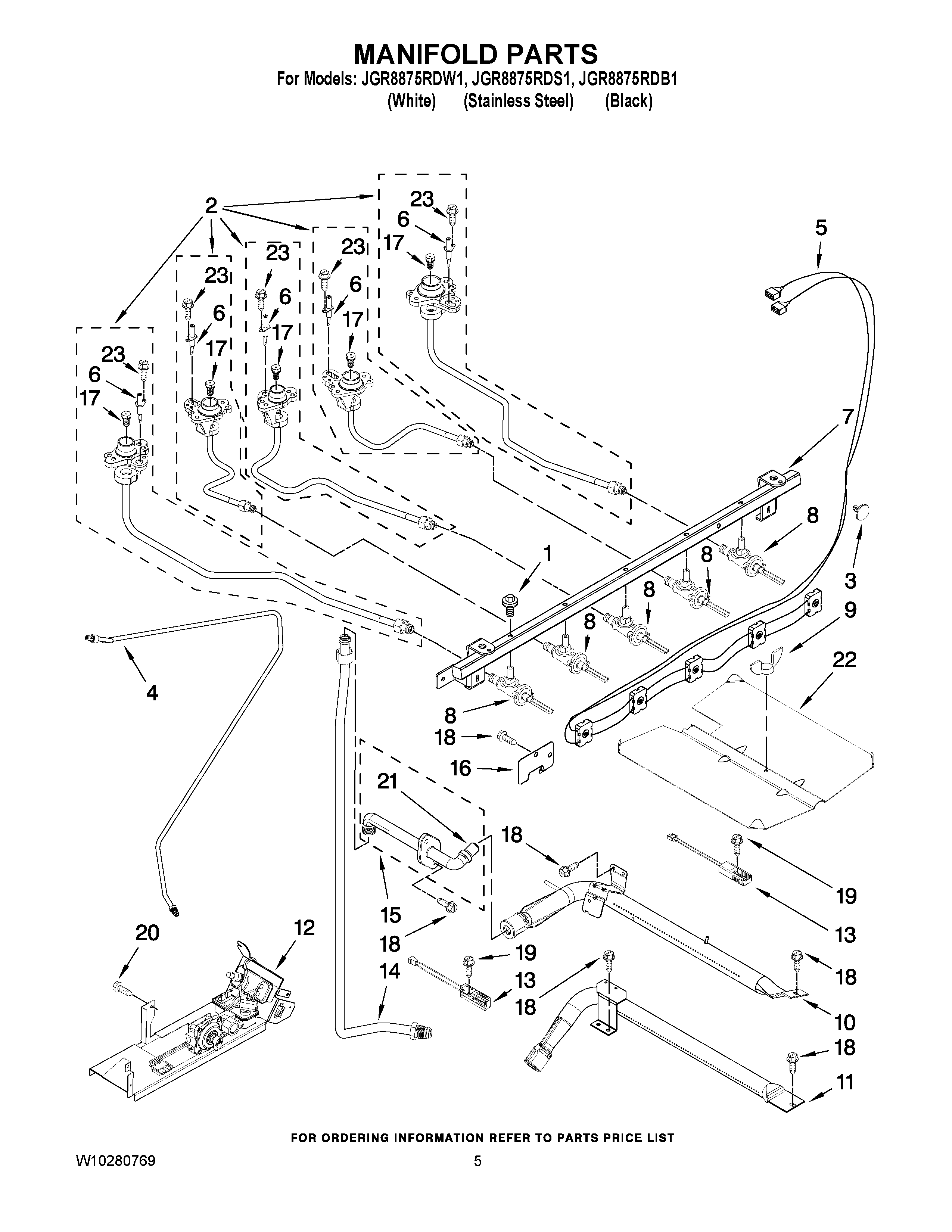

JGR8875RDS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP CONVERSION
1	MAY 71003231
2	ORIFICE HOLDER/TUBE ASY (CTR)
2	MAY 7527P124-60
2	MAY 7527P125-60
2	ORIFICE HOLDER/TUBE ASY (LF)
2	MAY 7527P095-60
3	MAY 8010P149-60
4	MAY 7506P361-60
5	MAY W10173438
6	MAY 2616F328-81
7	MAY 7513P524-60
8	VALVE (CENTER)
8	VALVE (LR,LF,RR)
8	MAY 7502P501-60
9	NUT, WING
10	MAY W10160904
11	MAY 31945701
12	MAY 7501P233-60
13	MAY 7432P136-60
13	74007498 Whirlpool Range Flat Igniter
14	MAY 7506P368-60
15	MAY 7507P357-60
16	MAY 4005F421-45
17	ORIFICE, BURNER (LEFT REAR)
17	MAY 7509P123-60
17	ORIFICE, BURNER (RIGHT FRONT)
18	SCREW, 8 X 1/2
19	SCREW (10-24X5/16-NI)
20	SCREW, GROUND (GRN)
21	MAY 7507P366-60
22	MAY 3601P336-45
23	MAY 8273062
