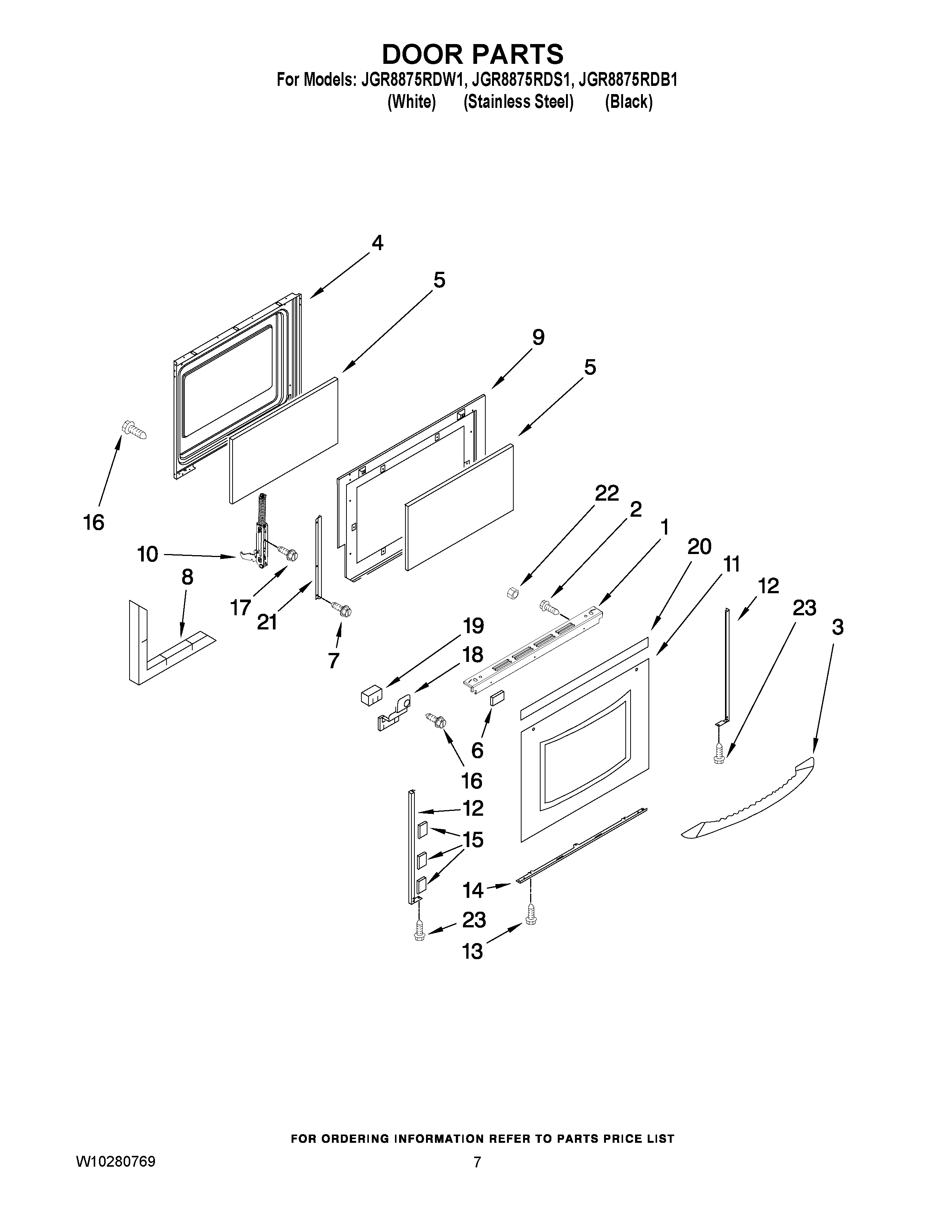

JGR8875RDS1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP
1	MAY 3608F139-70
2	MAY W10176584
3	HANDLE, DOOR (WHITE)
4	MAY 2402W297-19
5	Glass, Inner
6	MAY 8270P139-60
7	MAY 7101P376-60
8	MAY 7002P246-60
9	Retainer, Side
10	MAY 7106P124-60
11	MAY 7902P784-60
11	GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
12	MAY 3608F126-71
12	MAY 3608F126-70
13	Screw (2) (Black)
14	MAY 3608F092-71
14	MAY 3608F092-70
15	Tape, Double Sided (White)
15	MAY W10208307
16	SCREW
17	SCREW (10-24X5/16-NI)
18	MAY 3801P858-45
18	MAY 3801P857-45
19	INSULATION, CORNER (DOOR)
20	TAPE, FOIL (3“ WIDE)
21	BRACKET, INNER GLASS
22	MAY 7103P176-60
23	Screw (White)
23	Screw (Black)
