JGR8875RDW 02 – CAVITY

JGR8875RDW 02 – CAVITY

Written by

in

JGR8875RDW 02 – CAVITY

Products

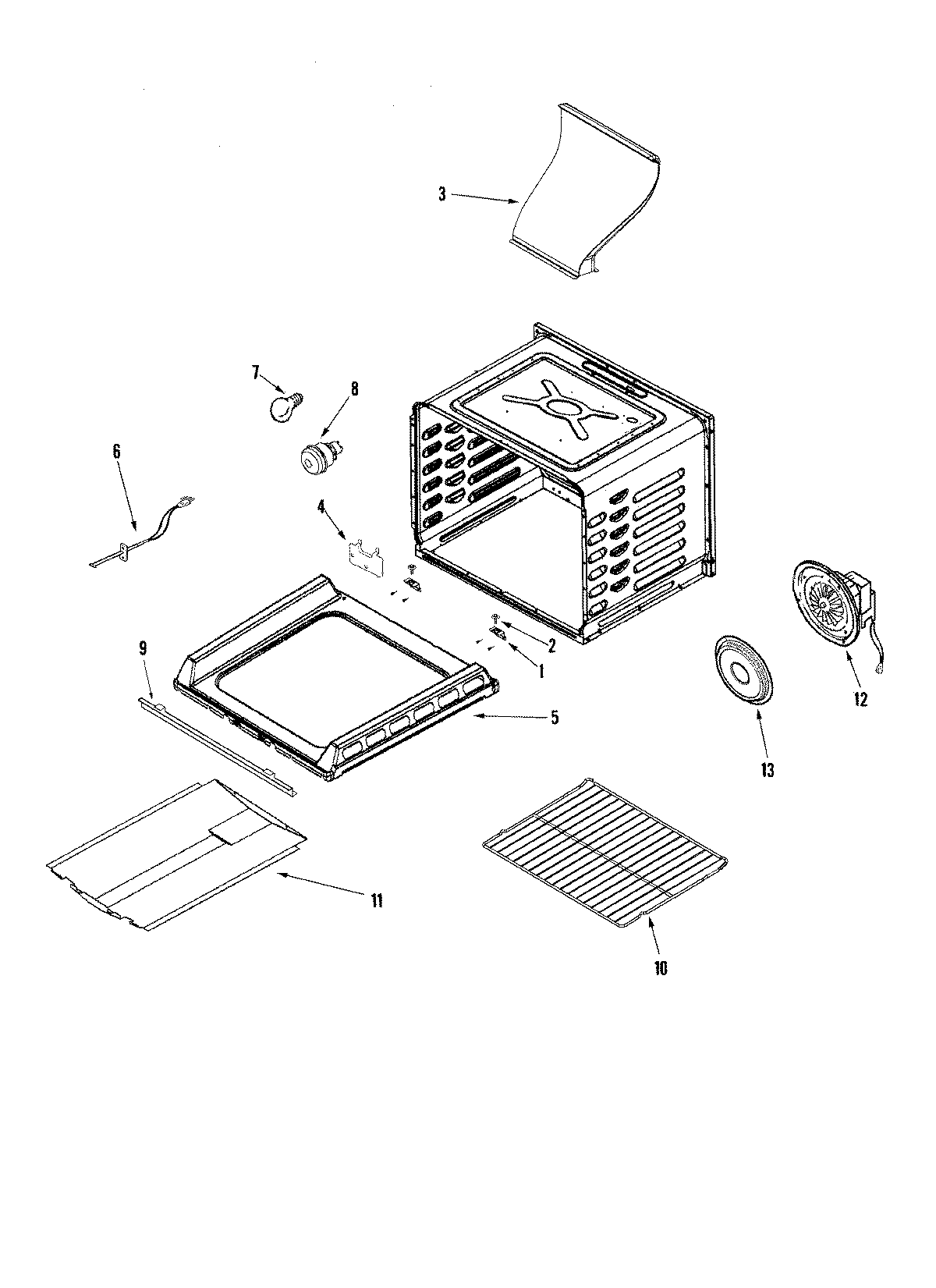

PositionProduct
1SCREW, 8 X 1/2
1SUPPORT, OVEN BOTTOM (REAR)
2WP74003976 Whirlpool Screw
3MAY 74008817
4MAY 4005F421-45
5WPW10211368 Whirlpool Oven Bottom
612001655 Whirlpool Oven Sensor
7RANGE ONLY 40W 120V APPL BULB
8WP74011278 Whirlpool Light
9SUPPORT, OVEN BOTTOM (FRONT)
10WP74008763 Whirlpool Oven Rack
11BAFFLE, BAKE BURNER
12MAY 74011176
13MAY 71001394
13COVER, CONVECT
