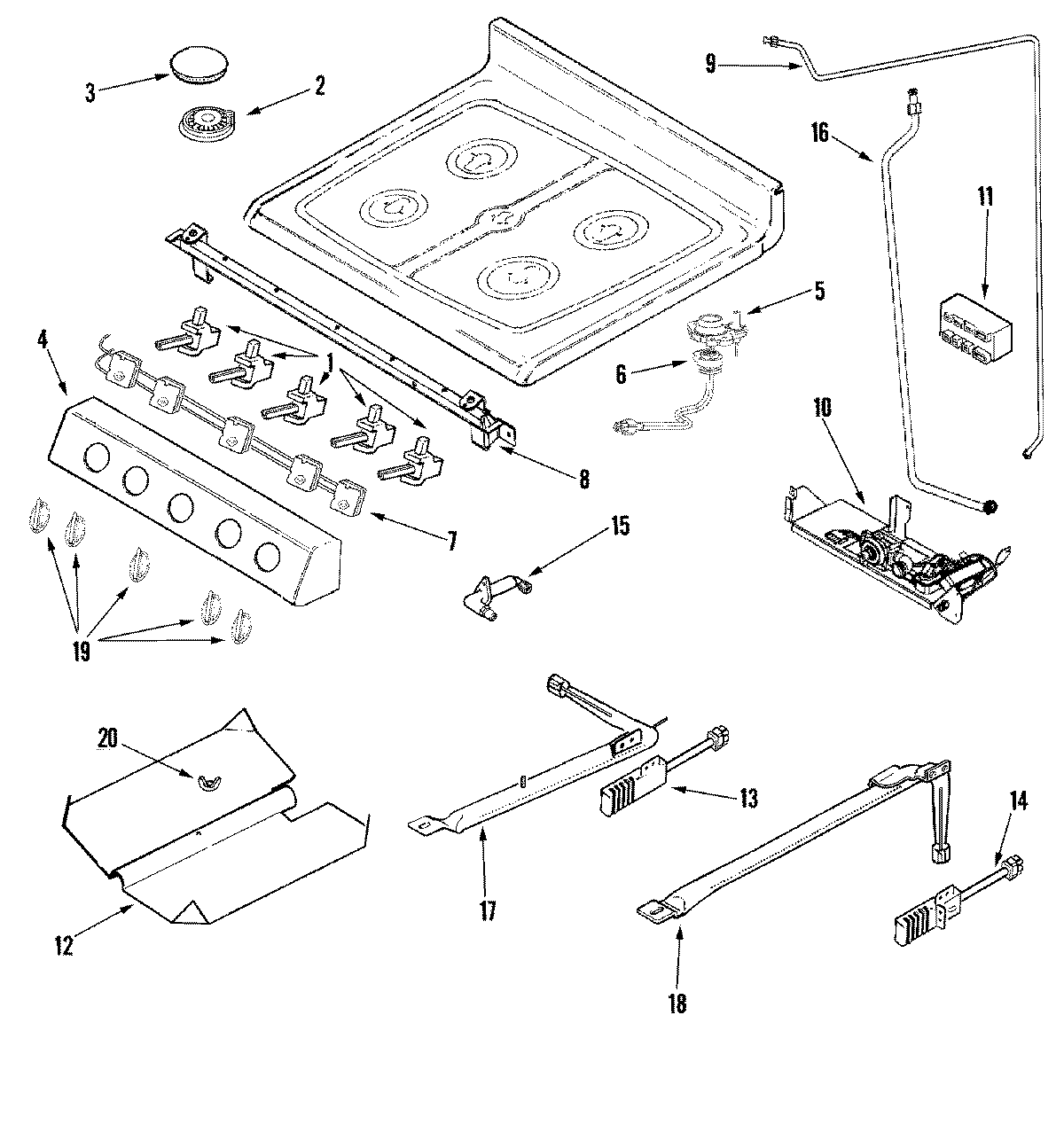

JGR8875RDW 05 – GAS CONTROLS

Products

PositionProduct
1WP74009857 Whirlpool Screw
1VALVE, 12K (COPRECI)
1VALVE, 16K (COPRECI)
1VALVE, BURNER (5K COPRECI)
2WPW10406878 Whirlpool Burner Base (16K)
2WP400021-1 Whirlpool Screw
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74007420 Whirlpool Large Gray Burner Cap
3CAP, BURNER (SMR-GRY)
474008761 Whirlpool Spacer Snap-In
4W11693756 Whirlpool Screw Assembly
4PANEL, MANIFOLD (WHT)
5WP74009958 Whirlpool Spark Electrode Assembly
6ORIFICE HOLDER/TUBE ASY (LF)
6WP74009099 Whirlpool Orifice Holder
6W10154209 Whirlpool Orifice Holder
6ORIFICE HOLDER/TUBE ASY (CTR)
6MAY 7527P100-60
7WP74010753 Whirlpool Harness Assembly
8MAY 74008815
9TUBING, SUPPLY
10VALVE/REGULATOR ASSEMBLY
1174009098 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14SCREW (10-24X5/16-NI)
14WP7432P136-60 Whirlpool Oven Igniter
1574008818 Whirlpool Broil Burner Fitting
15SCREW
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19WP74009147 Whirlpool Control Knob
20NUT, WING
