JGR8885RDP 01 – CABINET

JGR8885RDP 01 – CABINET

Written by

in

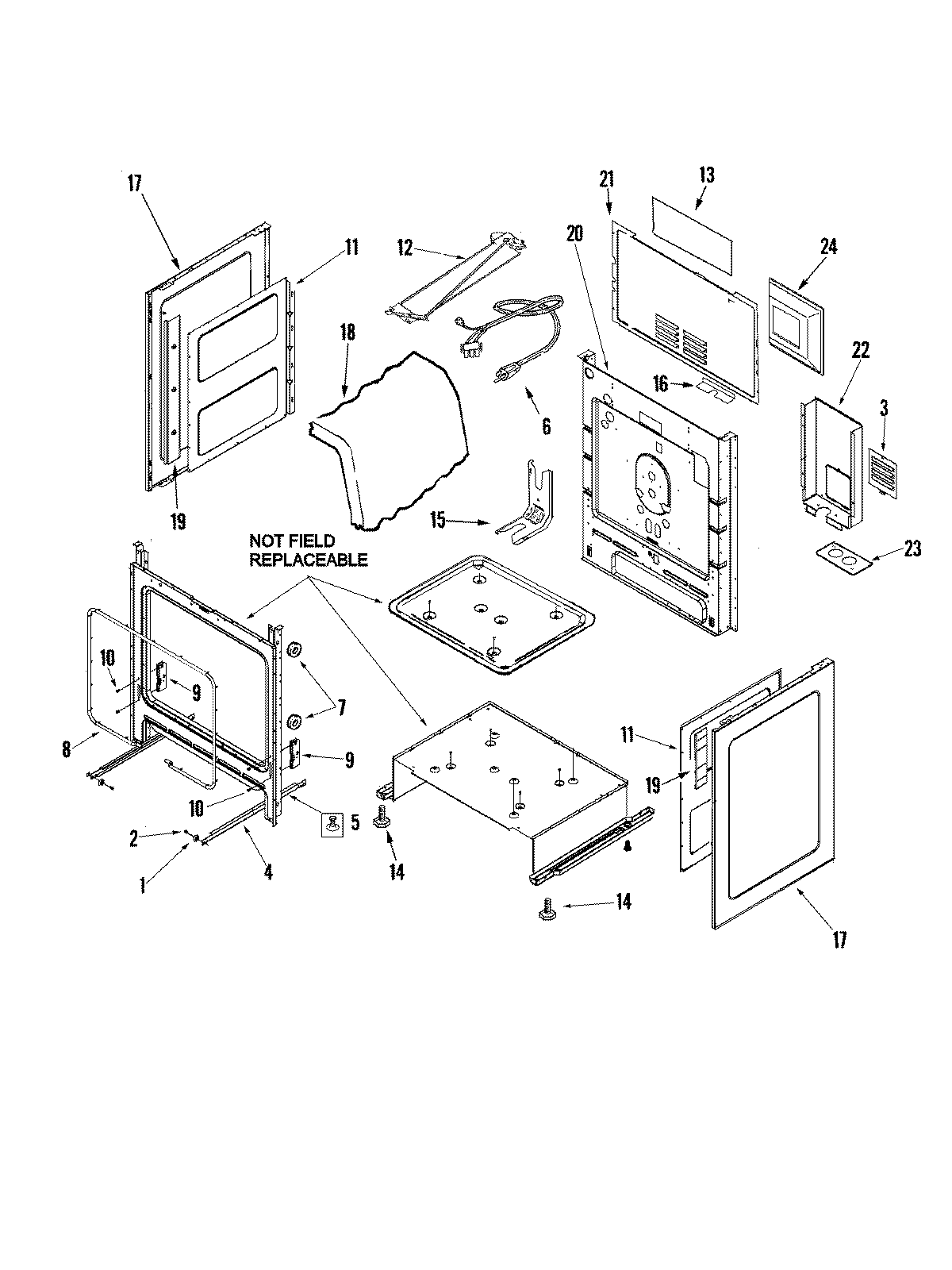

JGR8885RDP 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
3MAY 74008340
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SPACER, SIDE PANEL
7SCREW W/SHOULDER (No.8)
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
11MAY 7002P494-60
11MAY 3804F316-51
12MAY 8002P104-60
12MAY 74011896
12SCREW
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13MAY 74008858
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15WP7101P485-60 Whirlpool Anchor Tip
15WP3801F656-51 Whirlpool Range Anti-Tip Bracket
16BOTTOM, REAR COVER
17MAY 74008710
17WP74003976 Whirlpool Screw
18INSULATION, WRAPPER
18MAY 7002P492-60
19MAY 74009956
20MAY 74011911
21COVER, MAIN WIRE (GAS)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74010814
