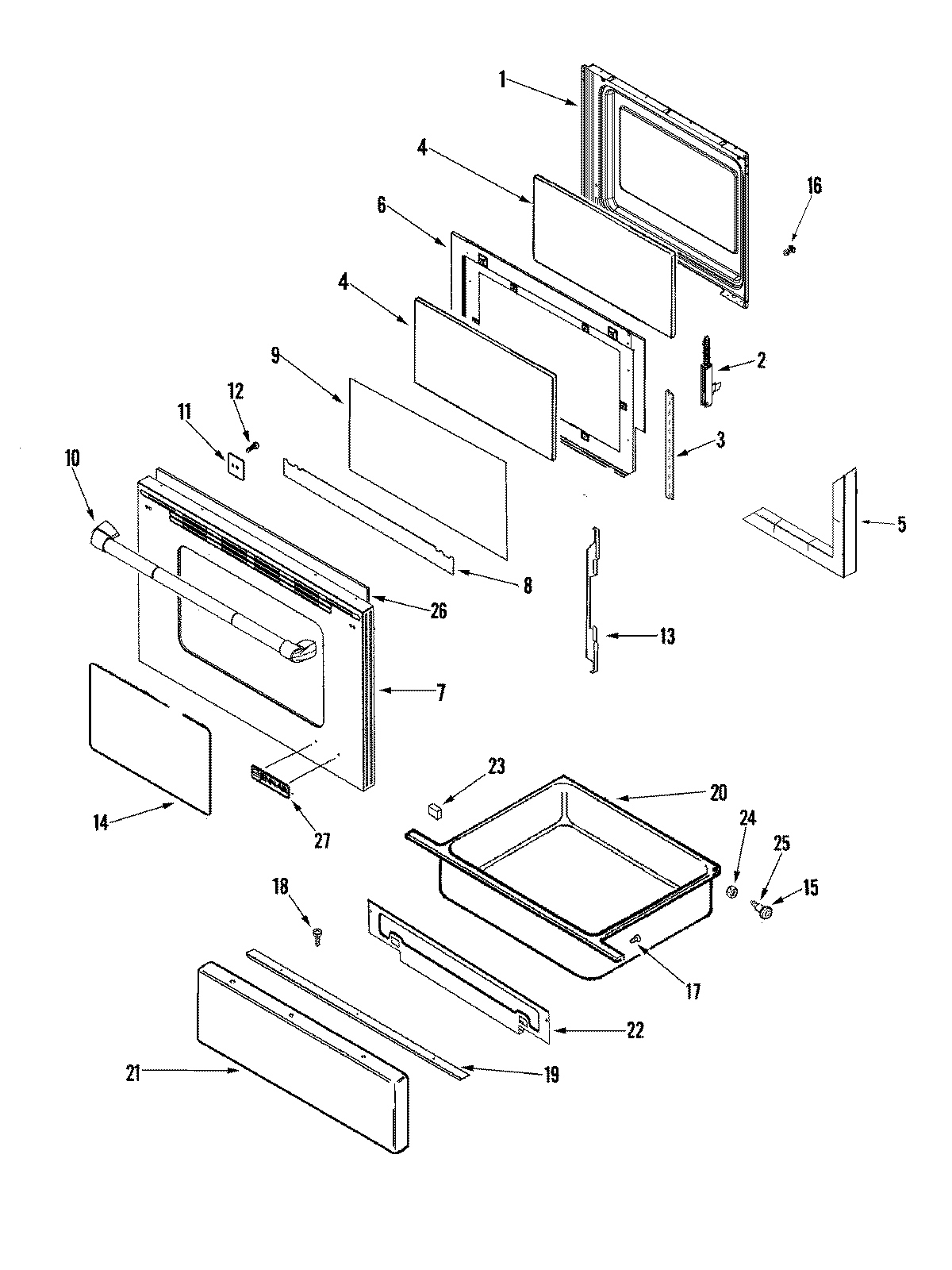

JGR8885RDP 04 – DOOR/DRAWER

JGR8885RDP 04 – DOOR/DRAWER

Written by

in

JGR8885RDP 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
33801F886-51 Whirlpool Mounting Bracket
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
6SCREW
7MAY 7760P216-60
8TAPE, FOIL
9MAY 7902P805-60
10MAY 7701P534-60
11MAY 74010785
12MAY 74011751
13MAY 3801F918-51
1474008916 Whirlpool Window Gasket
15WP74004078 Whirlpool Door Roller
16SCREW (10-24X5/16-NI)
17WP7101P072-60 Whirlpool Screw
19MAY 74008909
19HANDLE, DRAWER
20WP3405F037-80 Whirlpool Utility Drawer
21Panel, Drawer Frnt (Stainless)
22MAY 74009105
23WP74005546 Whirlpool RU Spacer
24WP488130 Whirlpool Air Conditioner Nut
25SHAFT, STORAGE DRAWER ROLLER
26TAPE, FOIL (3“ WIDE)
277103P166-60 Whirlpool Nut
27MAY 74006889
