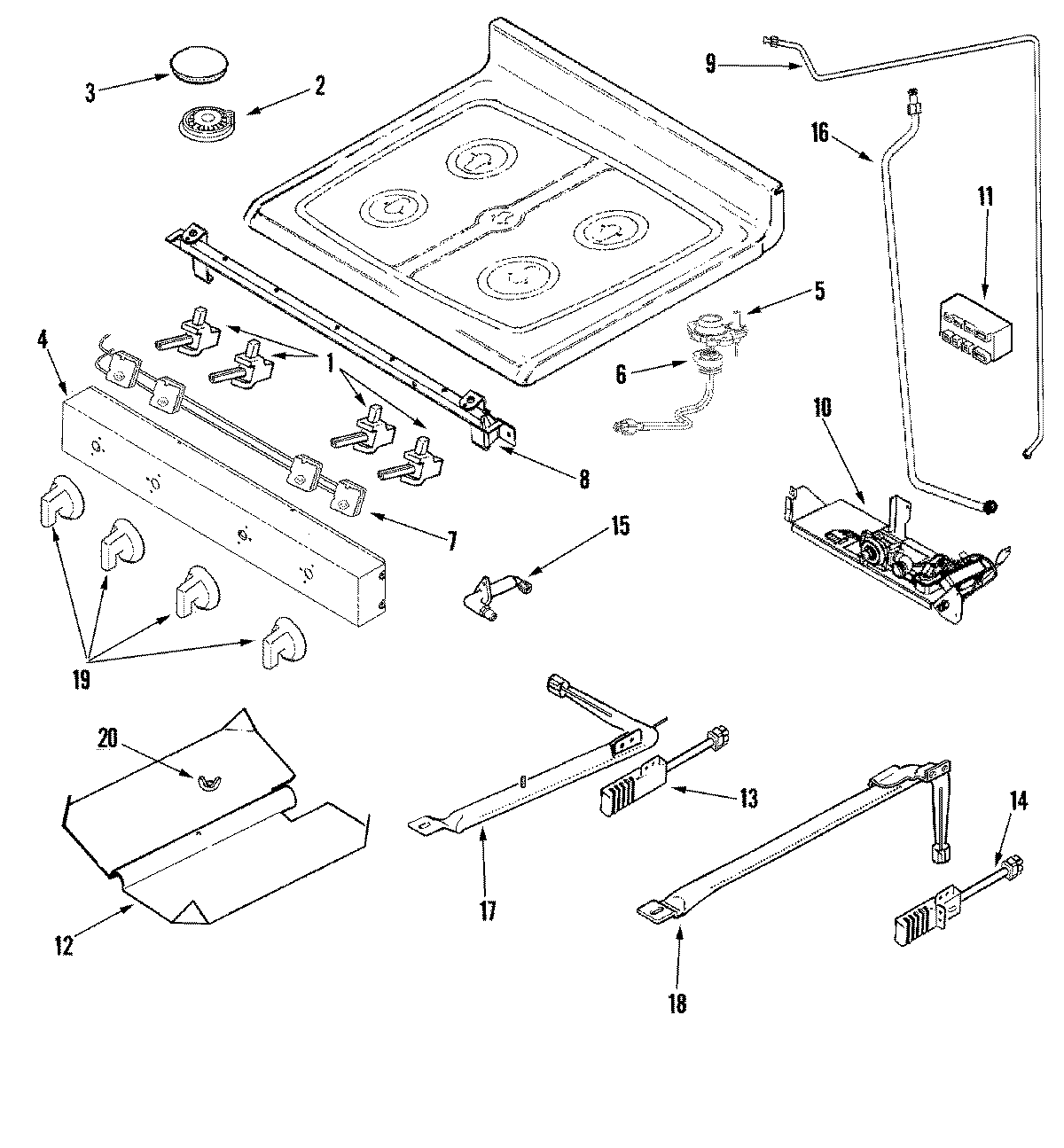

JGR8885RDP 05 – GAS CONTROLS

JGR8885RDP 05 – GAS CONTROLS

Written by

in

JGR8885RDP 05 – GAS CONTROLS

Products

PositionProduct
1VALVE, 12K (COPRECI)
1VALVE, 16K (COPRECI)
1VALVE, BURNER (5K COPRECI)
1WP74009857 Whirlpool Screw
2WPW10406878 Whirlpool Burner Base (16K)
2BASE, BURNER(9.2K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WP400021-1 Whirlpool Screw
3MAY 74010189
3CAP, BURNER (EX-LRG/BLK)
3WP8284669 Whirlpool Burner Cap
4W11693756 Whirlpool Screw Assembly
4MAY 2616N391-50
474008761 Whirlpool Spacer Snap-In
5WP74009958 Whirlpool Spark Electrode Assembly
6MAY 7527P098-60
6WP74009099 Whirlpool Orifice Holder
6W10154209 Whirlpool Orifice Holder
6MAY 7527P113-60
7WP74010630 Whirlpool Switch Harness
8MAY 74008809
9TUBING, SUPPLY
10VALVE/REGULATOR ASSEMBLY
1174008821 Whirlpool Spark Module
12MAY 74008819
1374007498 Whirlpool Range Flat Igniter
14WP7432P136-60 Whirlpool Oven Igniter
14SCREW (10-24X5/16-NI)
1574008818 Whirlpool Broil Burner Fitting
15SCREW
1674008830 Whirlpool Oven Broil Tubing
17BURNER, BROIL
18MAY 31945701
19MAY 7733P499-60
20NUT, WING
