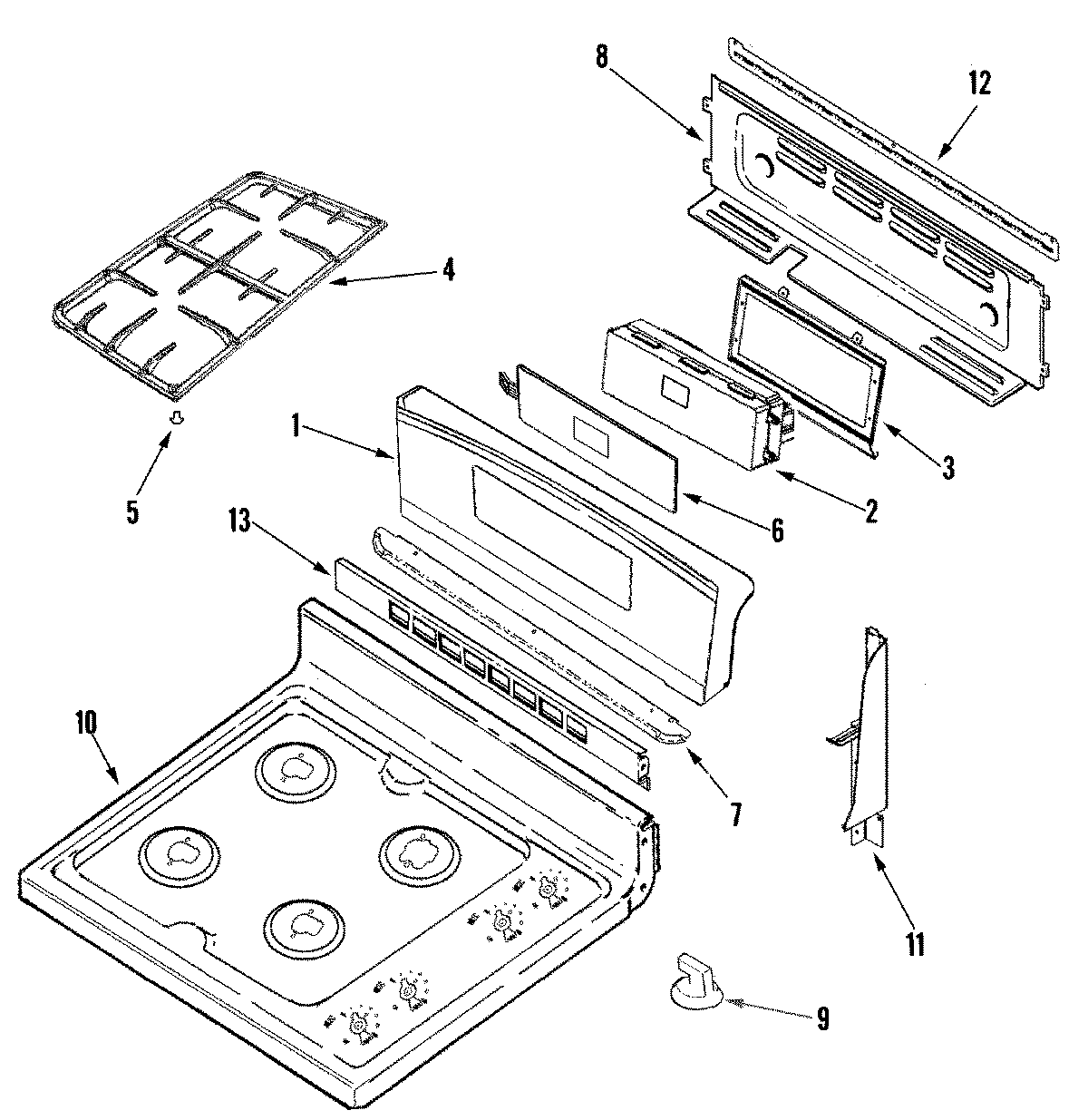

JGR8890ADP 02 – CONTROL PANEL/TOP ASSEMBLY

JGR8890ADP 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JGR8890ADP 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010180
2MAY 74011884
3MAY 74010217
3MAY 71001394
4Grate, Burner (2) (Incl. Bumpers)
5W10919249 Whirlpool Burner Grate Foot
6MAY 74011883
7MAY 74010183
7MAY 74009978
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8SCREW (8BX3/8-NI)
8SCREW
8WP400021-1 Whirlpool Screw
8MAY 74010983
9W11252480 Whirlpool Knob
9WP74005934 Whirlpool Grommet
10Cooktop (BLK)
11WP98008545 Whirlpool Screw
11MAY 74010201
11WP74003976 Whirlpool Screw
11MAY 74010202
12MAY 74009701
13MAY 74009797
13MAY 7101P147-60
