JGR8890ADP 05 – GAS CONTROLS

JGR8890ADP 05 – GAS CONTROLS

Written by

in

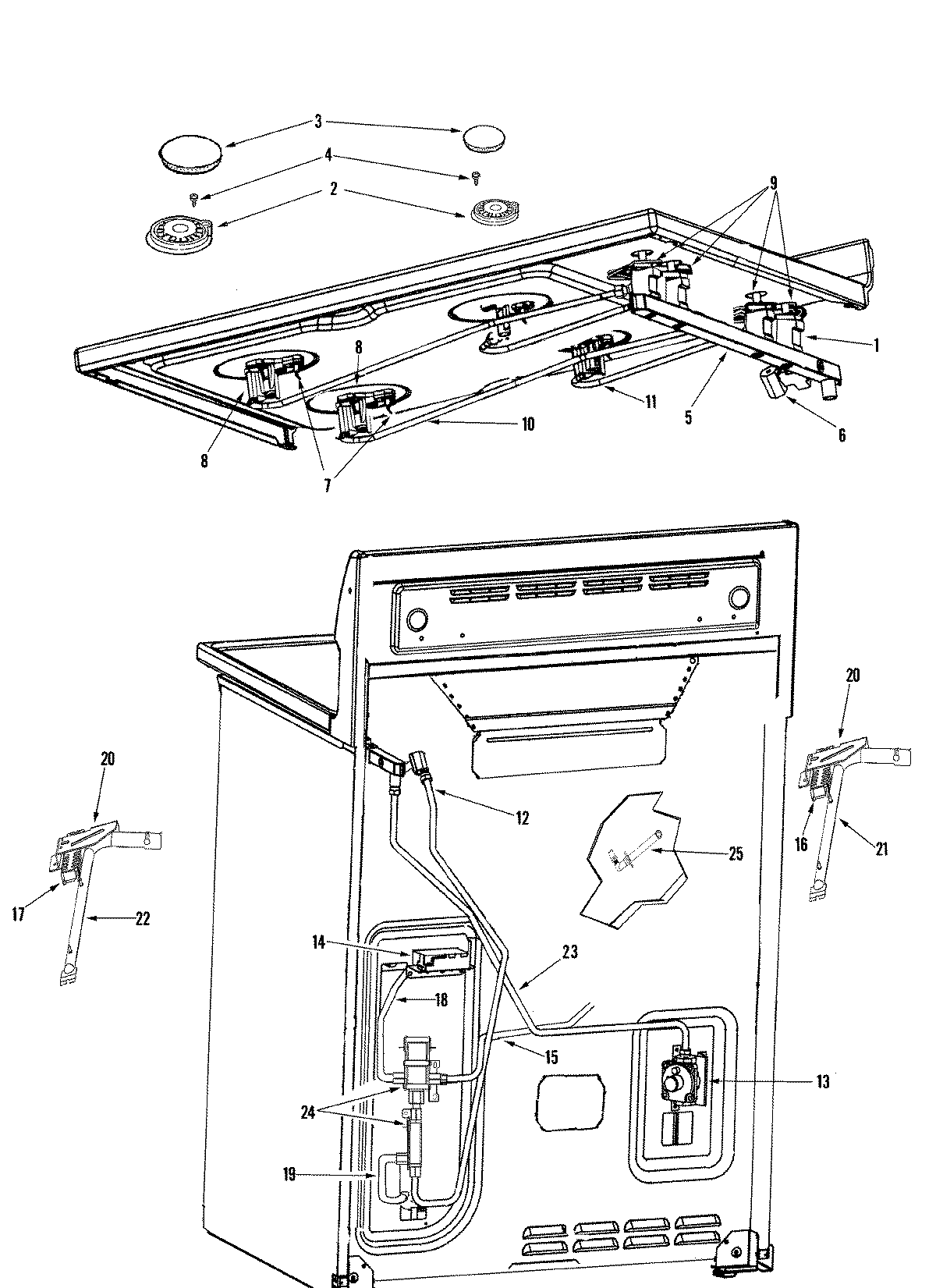

JGR8890ADP 05 – GAS CONTROLS

Products

PositionProduct
1MAY 74011867
1MAY 12002269
1MAY 12002268
1MAY 74009416
2WPW10406878 Whirlpool Burner Base (16K)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WP8284669 Whirlpool Burner Cap
3CAP, BURNER (EX-LRG/BLK)
3MAY 74010189
4WP400021-1 Whirlpool Screw
5MAY 74009902
6MAY 12002271
7WP8523793 Whirlpool Oven Surface Igniter
8WP74007961 Whirlpool Holder
8WP7527P021-60 Whirlpool Orifice Holder
8WP7527P023-60 Whirlpool Orifice Holder
9HARNESS, SWITCH/COMPLETE ASSY
912002790 Whirlpool Igniter Switch with Shield AS
9WP74008212 Whirlpool Seal Switch
11MAY 74010097
11MAY 74009240
12MAY 74011291
13MAY 74007387
1474009098 Whirlpool Spark Module
15MAY 74011292
16WP74007966 Whirlpool Broil Igniter
17SCREW (10-24X5/16-NI)
17IGNTR-OVEN
18MAY 74011293
19MAY 74011296
19MAY 74007451
20MAY 74007426
21MAY 74010093
22NUT, WING
22MAY 74010094
23MAY 74010098
24MAY 74011297
24WP74011290 Whirlpool Bake Valve
25WP3387230 Whirlpool Screw
25MAY 74010612
