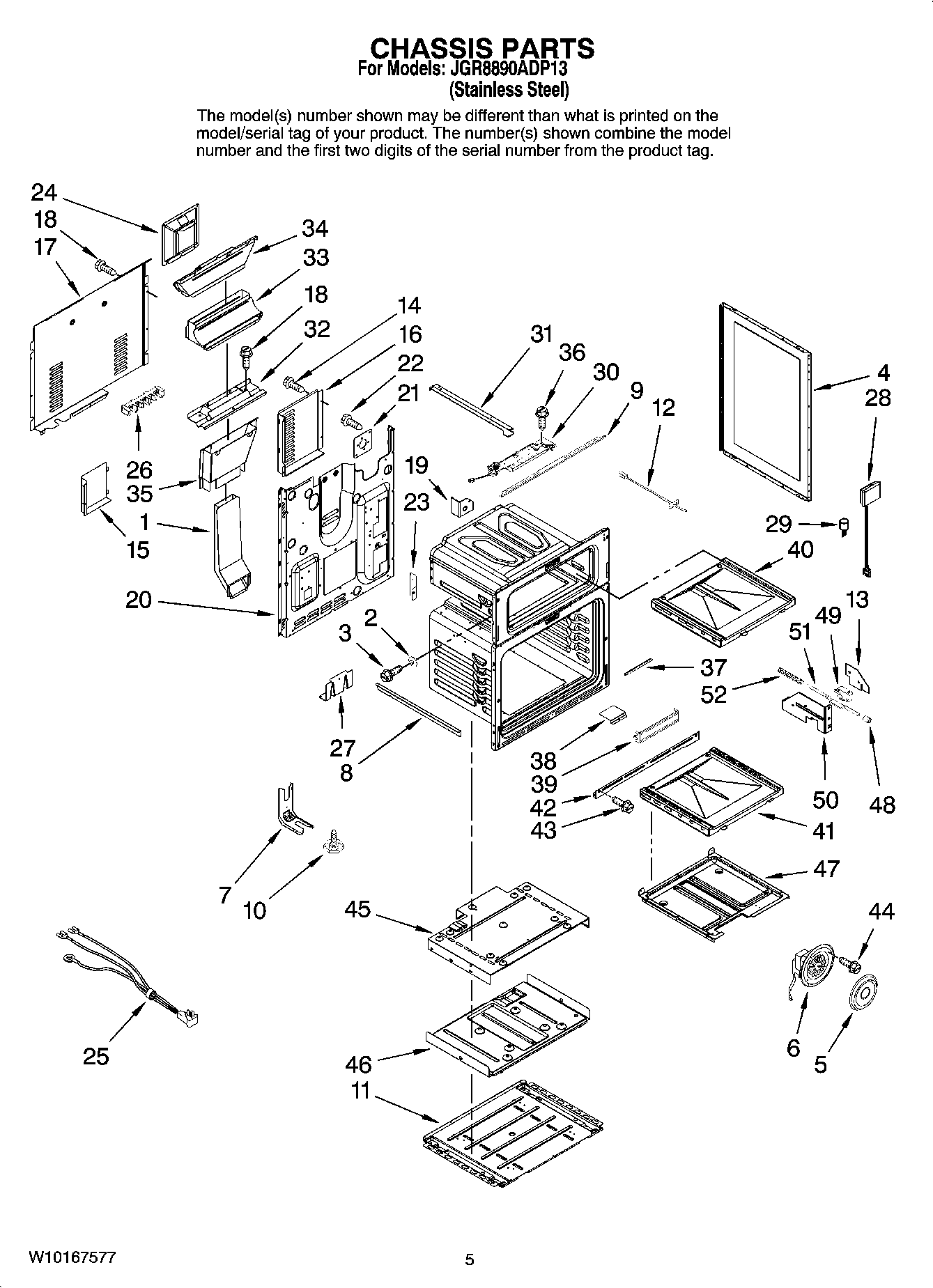

JGR8890ADP13 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 74010089
NI	74010091 Whirlpool Lower Back Insulation
NI	74007440 Whirlpool Oven Upper Insulation Wrap
NI	MAY 74010090
1	MAY 74007374
2	MAY 8004P024-60
4	MAY 74003283
5	MAY 74010119
6	WPW10206589 Whirlpool Convection Fan
7	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
8	3823F015-51 Whirlpool Spacer
9	MAY 74003384
10	W11665456 Whirlpool Range Level Foot
11	MAY 74009962
12	WP74011433 Whirlpool Sensor
12	12001655 Whirlpool Oven Sensor
13	MAY 74001872
15	MAY 74010120
16	MAY 74010121
17	MAY 74007431
19	MAY 74007446
19	MAY 74007447
20	MAY 74011298
21	MAY 74007450
22	SCREW
23	MAY 74007499
23	MAY 74007500
24	MAY 74011858
25	MAY 74011890
26	WPW10245259 Whirlpool Terminal Block
27	MAY 74005500
28	MAY 74009970
29	WP74009925 Whirlpool Halogen Light Bulb
30	74007429 Whirlpool Door Latch Assembly Primary Lock
31	MAY W10163331
31	MAY W10163332
32	MAY 74007377
33	MAY 74007376
34	MAY 74007955
35	MAY 74007956
36	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37	MAY 74007428
38	MAY 74010102
39	MAY 74007383
40	MAY 74010085
41	2205F051-19 Whirlpool Oven Bottom
42	MAY 74007436
43	WP98008545 Whirlpool Screw
45	MAY 74007577
46	MAY 74007443
47	MAY 74010103
47	MAY 74010101
48	MAY 74001631
50	BRACKET, SWITCH ACTUATOR
51	ROD, DOOR LIGHT SWITCH
