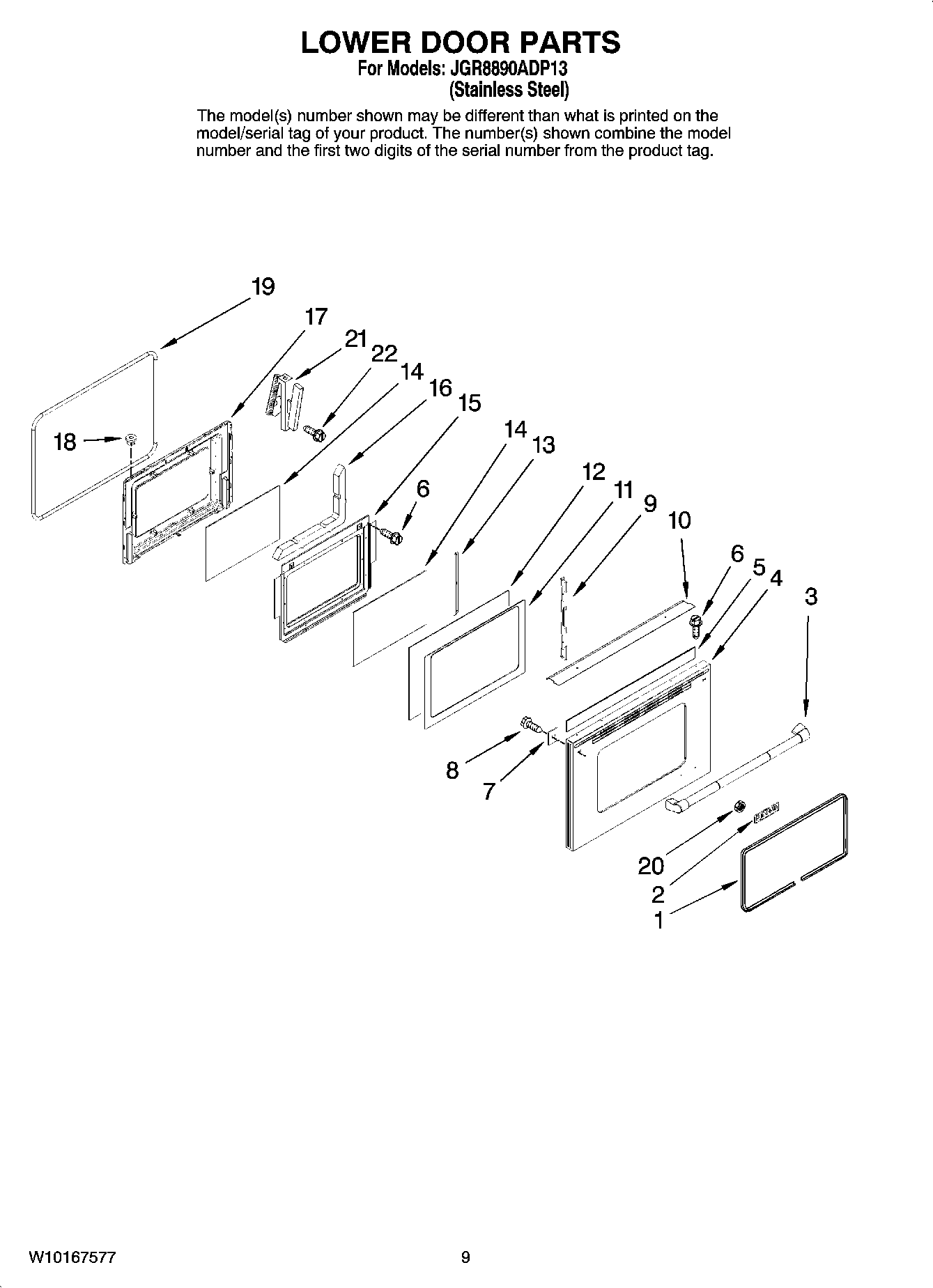

JGR8890ADP13 06 – LOWER DOOR PARTS

JGR8890ADP13 06 – LOWER DOOR PARTS

Written by

in

JGR8890ADP13 06 – LOWER DOOR PARTS

Products

PositionProduct
174008916 Whirlpool Window Gasket
2MAY 74006889
3WP7701P475-60 Whirlpool Door Handle
4MAY 74011887
5Insulation, Foil
6SCREW, 8 X 1/2
7MAY 74010785
8MAY 74011751
9MAY 74010041
10MAY W10163149
11MAY 74010196
12GLASS, DOOR
133801F886-51 Whirlpool Mounting Bracket
1474003645 Whirlpool Range Oven Door Inner Glass
153601F373-51 Whirlpool Baffle
16INSULATION, OVEN DOOR
17LINING, DOOR
18NUT, SNAP (ROUND-BLK)
19GASKT-DOOR OVEN
207103P166-60 Whirlpool Nut
2174011475 Whirlpool Range Oven Door Hinge Assembly
22SCREW (10-24X5/16-NI)
