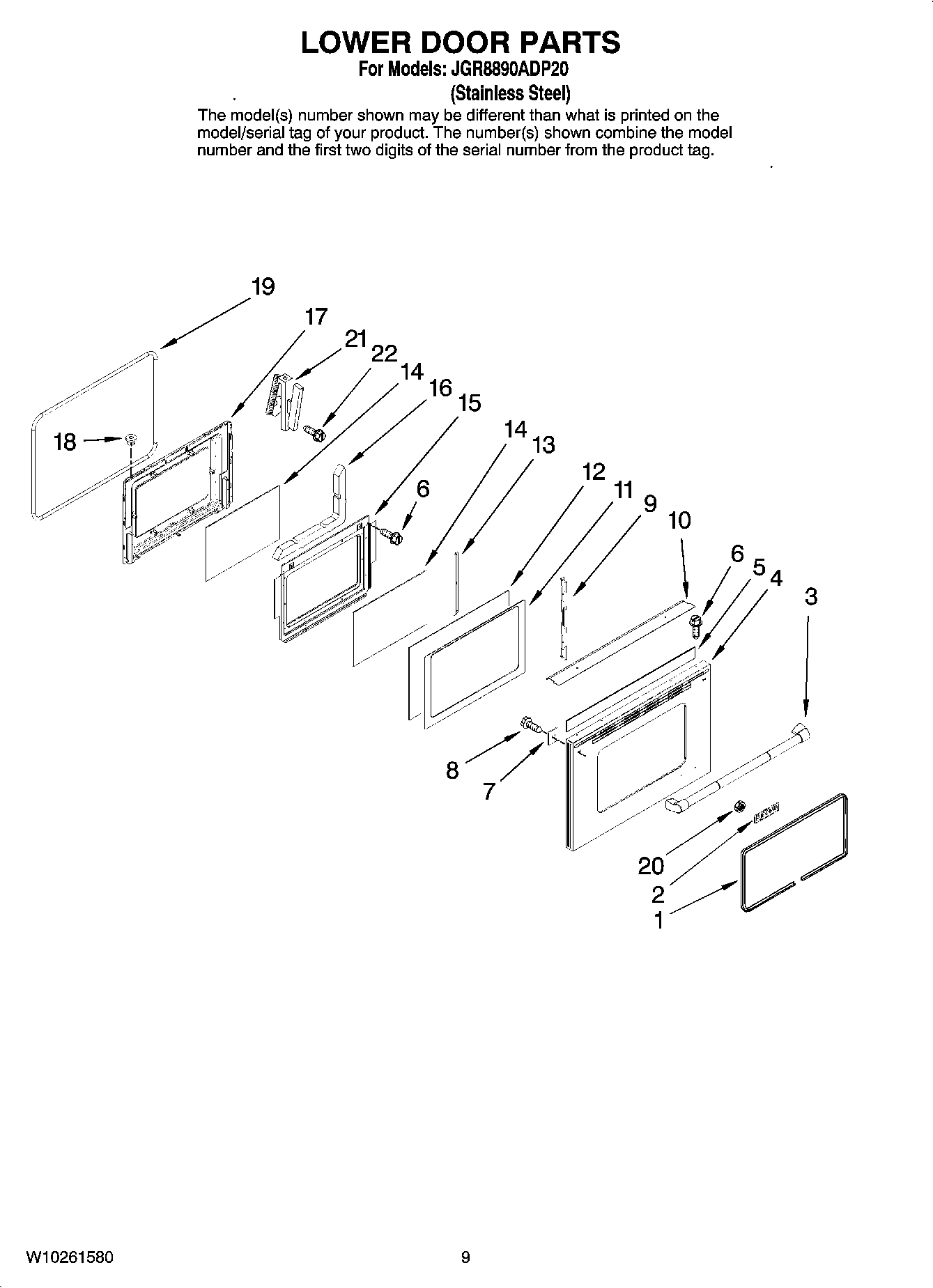

JGR8890ADP20 06 – LOWER DOOR PARTS

JGR8890ADP20 06 – LOWER DOOR PARTS

Written by

in

JGR8890ADP20 06 – LOWER DOOR PARTS

Products

Position	Product
1	MAY 7201P140-60
2	MAY 7719P087-60
3	MAY 7701P475-60
4	MAY 7760P158-60
5	Insulation, Foil
6	MAY 7101P376-60
7	MAY 8038P040-60
8	Screw
9	Retainer, Glass Support (2)
10	MAY W10163149
11	Glass, Door Outer
12	Glass, Door
13	BRACKET, INNER GLASS
14	Glass, Inner
15	MAY 3601F373-51
16	MAY 7002P246-60
17	MAY 2402W312-19
18	MAY 7103P141-60
19	MAY W10162384
20	NUT, HEX
21	Hinge, Door (2)
22	SCREW (10-24X5/16-NI)
