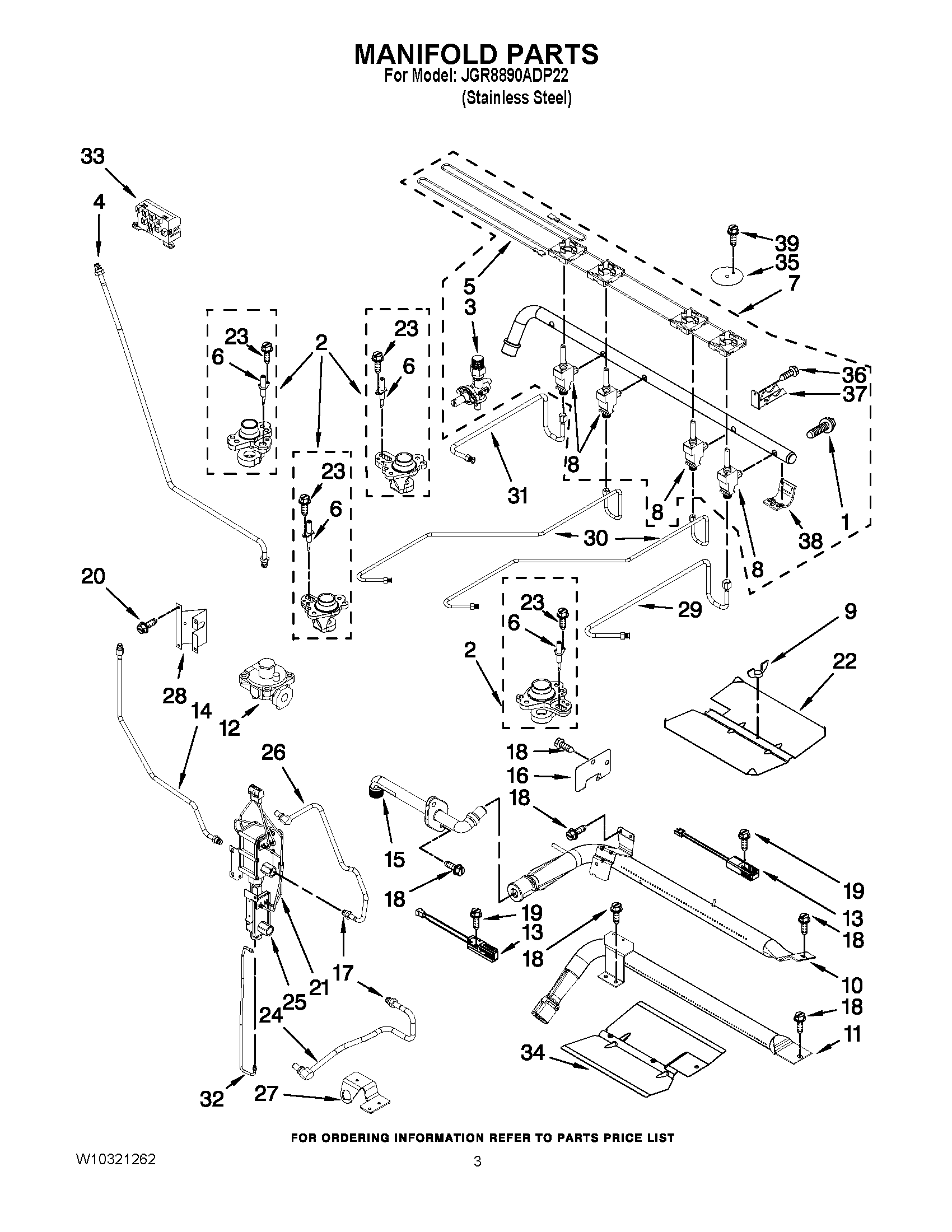

JGR8890ADP22 03 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP GAS CONVERSION ORIFICE
NI	KIT, LP
1	MAY W10284377
2	HOLDER, ORIFICE ((LF))
2	HOLDER, ORIFICE (LR/RR/RF)
2	HOLDER, ORIFICE ((RR))
3	VALVE, SHUT OFF
4	TUBING, MANIFOLD TO VALVE
5	MAY W10213454
6	Ignitor, Top Burner (4)
7	MAY W10296560
8	MAY W10213443
8	VALVE (LR/RR/RF)
8	VALVE ((CENTER))
9	NUT, WING
10	MAY 7505P323-60
11	MAY 7505P324-60
12	MAY 7510P089-60
13	MAY 7432P130-60
13	Igniter (Bake)
14	MAY 7506P429-60
16	MAY 4005F421-45
17	MAY 7103P195-60
18	SCREW, 10AB X 1/2
19	SCREW (10-24X5/16-NI)
20	MAY 7101P388-60
21	MAY 5171P603-60
22	MAY 3601F358-45
23	MAY 8273062
24	MAY 7507P395-60
24	MAY 7507P396-60
25	MAY 7501P221-60
26	MAY 7507P400-60
27	MAY 3801F681-45
28	MAY 3801F691-51
29	Tubing (RF)
30	Tubing (LR & LF)
31	TUBING, TOP BURNER
32	MAY 7506P428-60
33	MODULE, SPARK
34	MAY 3601F339-45
35	COVER, VALVE SW
36	MAY W10213456
37	BRACKET, VALVE
38	MAY W10213445
39	SCREW, 8-32X.375
