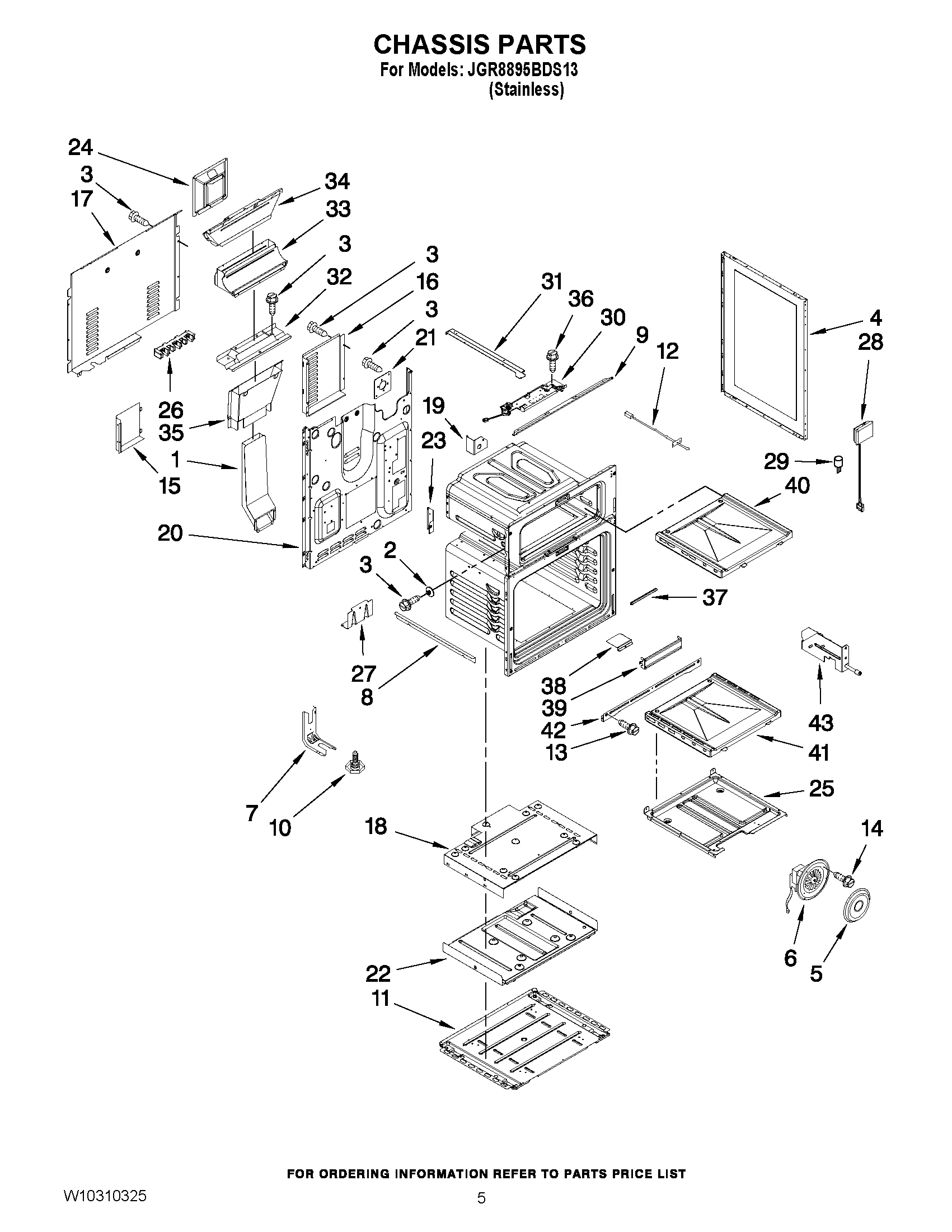

JGR8895BDS13 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P310-60
NI	MAY 7002P419-60
NI	MAY 7002P413-60
NI	MAY 7002P415-60
1	MAY 3826W047-45
2	MAY 8004P024-60
3	MAY 7101P388-60
4	Panel, Side (Black) (2)
5	MAY 3605F338-19
6	MAY W10206589
7	BRACKET, ANTI-TIP
8	MAY 3823F015-51
9	MAY 3801F924-80
10	Leg, Leveling
11	MAY W10312768
12	Sensor, Oven
12	MAY 7430P045-60
13	Screw (2) (Black)
14	MAY 7101P385-60
15	COVER, CONVECTION MOTOR – REAR
16	MAY 4005F743-51
17	COVER, MAIN WIRE
18	COVER, RETAINER
19	MAY 3801F706-51
19	MAY 3801F705-51
20	MAY W10180198
21	MAY 3807F647-45
22	RETAINER, INSUL BOTTOM
23	MAY 3807F644-45
23	MAY 3807F643-45
24	MAY 3804F270-45
25	MAY 3401F091-45
25	MAY 3401F090-45
26	WPW10245259 Whirlpool Terminal Block
27	MAY W10260703
28	ASSEMBLY, LIGHT
29	BULB, OVEN
30	MAY 8002P077-60
31	BOTTOM, BURNER BOX (RIGHT)
31	BOTTOM, BURNER BOX (LEFT)
32	MAY 3601F321-50
33	MAY 3826W042-45
34	MAY 4022W055-45
35	MAY 3826W052-45
36	Screw (Black) (2)
37	MAY 7212P066-60
38	MAY 4005F736-45
39	MAY 3601F308-19
40	MAY 2205F055-19
41	MAY 2205F051-19
42	TRIM, KICKPLATE (BLACK)
43	MAY 7450P108-60
