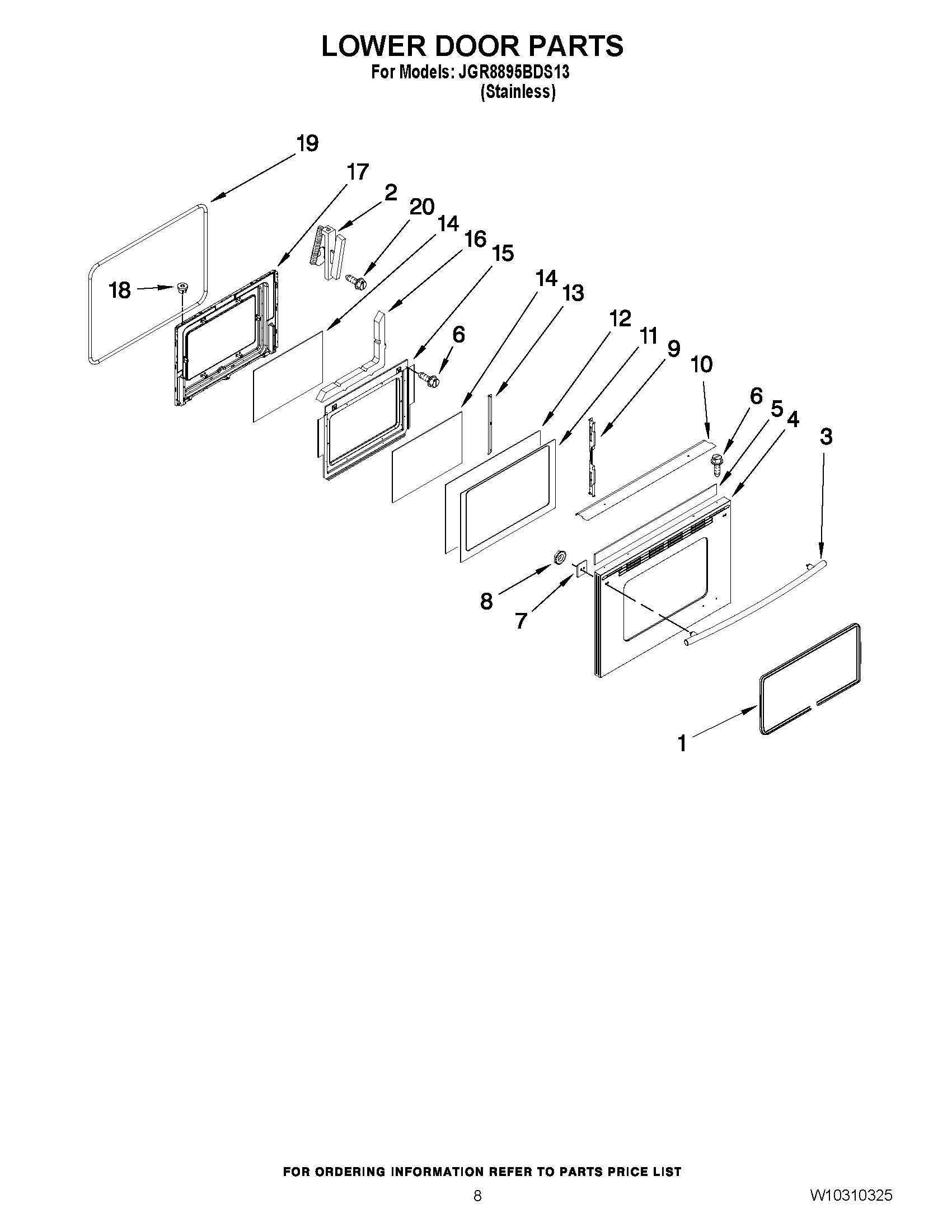

JGR8895BDS13 06 – LOWER DOOR PARTS
Written by
in
JGR8895BDS13 06 – LOWER DOOR PARTS
Products
Position
Product
1
MAY 7201P141-60
2
MAY 7106P141-60
3
HANDLE, DOOR (WHITE)
4
Panel, Door
5
Insulation, Foil
6
MAY 7101P376-60
7
MAY 3823F017-45
8
MAY 7103P176-60
9
Retainer, Glass Support (2)
10
MAY 3604F441-51
11
Glass, Door Outer
12
Glass, Door
13
BRACKET, INNER GLASS
14
Glass, Inner
15
MAY 3601F373-51
16
MAY 7002P246-60
17
MAY 2402W312-19
18
MAY 7103P141-60
19
MAY W10162384
20
SCREW (10-24X5/16-NI)
←
