JGRP17BEW1BB CONTROL PANEL

JGRP17BEW1BB CONTROL PANEL

Written by

in

JGRP17BEW1BB CONTROL PANEL

Products

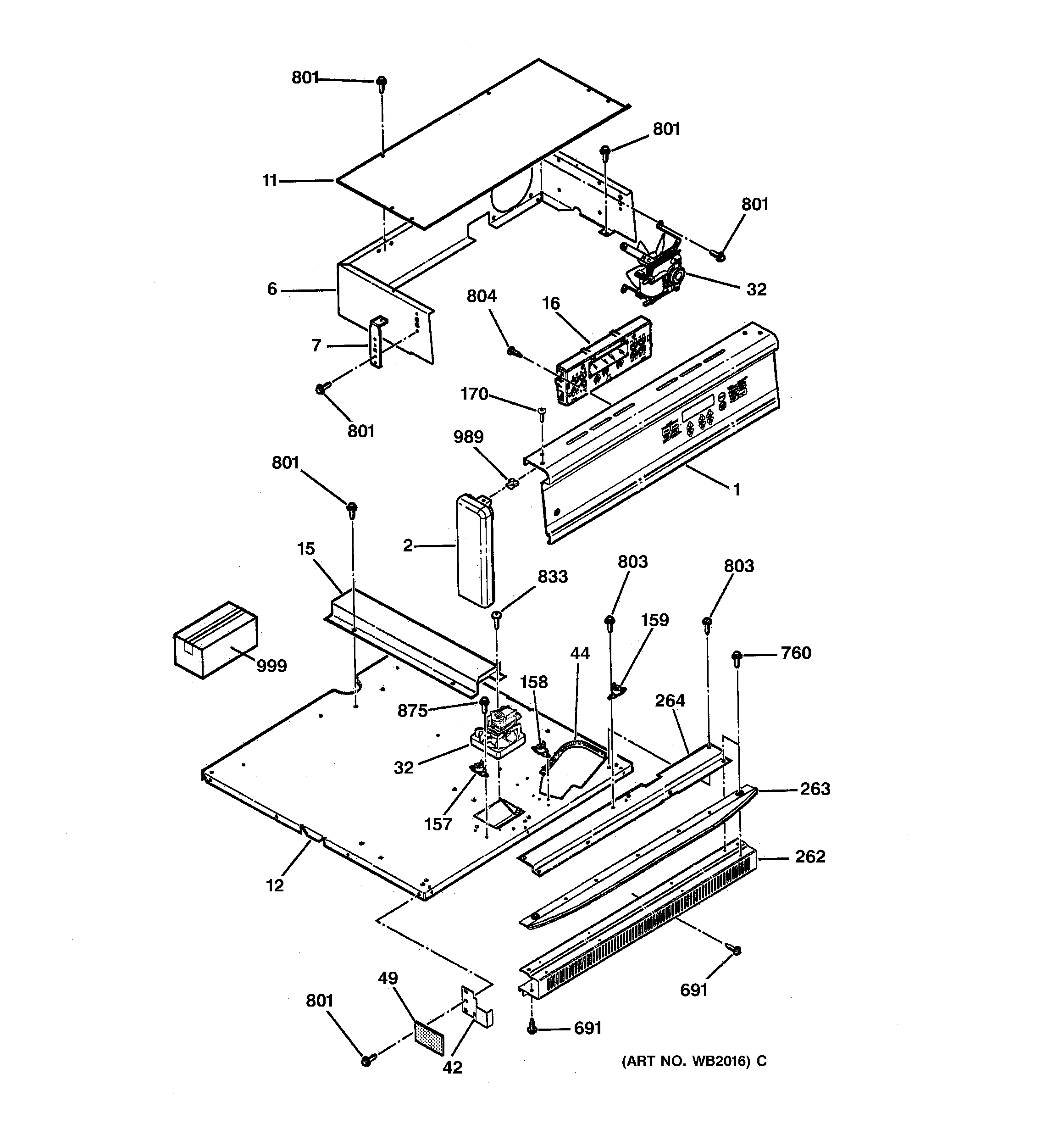

PositionProduct
1WB36T10542 GE Oven Control Panel Assembly
2GEN WB36K5681
2GEN WB36K5682
6WB36K5699 GE Oven Control Panel Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12WB63K5198 GE Oven Cabinet Top
15WB2X9665 GE Wire Cover
16GEN WB27K5329
32WB26X114 GE Oven Lower Fan Assembly
32WB26K5061 GE Oven Upper Fan Assembly
42GEN WB34K5249
44GEN WB02K5408
46WB34K5263 GE Wire Shield
49WB35K5129 GE Heat Shield Insulation
157WB24K5041 GE Oven Fan Limit Switch
158LIMIT SWITCH-TO CAB TOP
159WB24K5085 GE Oven Limit Switch
170WB1K60 GE Screw 8-18
262WB7K5278 GE Vertical Side Trim
262GEN WB07K5477
263I-BROW TRIM-BLK
530WB48X10056 GE Broil Pan Set, Large Porcelain
691WB1K5177 GE Oven Trim Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
803WB1K5162 GE Oven Black Screw
803WB1X1149 GE Oven Screw
804WB1X681 GE Oven Screw
821GEN WB01M0005
833WB1X1131 GE Screw 6-32
875WH2X930 GE Screw
890WB1X1118 GE Oven Screw 6-32T
950CABLE CLIP
989WB1K5209 GE Oven Clip
999GEN WB18K5642
999GEN 31-13332
999WB18K5490 GE Oven Door Switch Wire Harness
999GEN WB18K5600
999GEN 31-10155
999WB18K5422 GE Oven Control Valve Wire Harness
999USE CARE MANUAL
