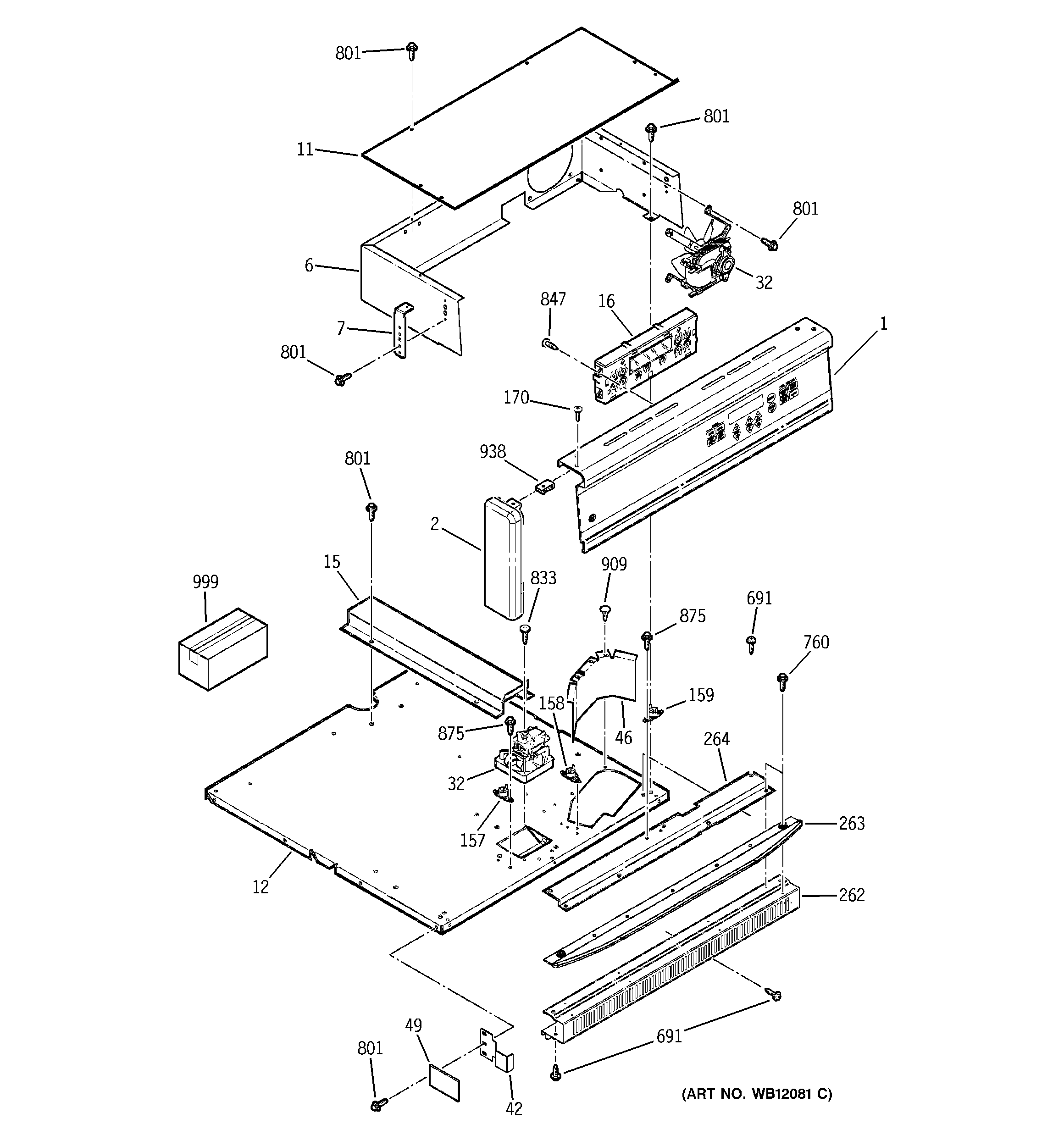

JGRP17BEW5BB CONTROL PANEL

JGRP17BEW5BB CONTROL PANEL

Written by

in

JGRP17BEW5BB CONTROL PANEL

Products

PositionProduct
1WB36T10542 GE Oven Control Panel Assembly
2GEN WB36T10065
2GEN WB36T10064
6WB36K5699 GE Oven Control Panel Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12WB63K5198 GE Oven Cabinet Top
15WB2X9665 GE Wire Cover
16GEN WB27T10267
32WB26K5061 GE Oven Upper Fan Assembly
32WB26X114 GE Oven Lower Fan Assembly
42GEN WB34K5249
46WB34K5263 GE Wire Shield
49WB35K5129 GE Heat Shield Insulation
157WB24K5041 GE Oven Fan Limit Switch
158LIMIT SWITCH-TO CAB TOP
159WB24K5085 GE Oven Limit Switch
170WB1K60 GE Screw 8-18
262GEN WB07K5477
262WB7K5278 GE Vertical Side Trim
263I-BROW TRIM-BLK
691WB1K5177 GE Oven Trim Screw
691WB1K5162 GE Oven Black Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
833WB1X1131 GE Screw 6-32
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
909WB1X1173 GE Rivet
938WB1K5209 GE Oven Clip
999GEN WB18K5600
999GEN WB18K5642
999USE CARE MANUAL
999GEN 31-13905
999GEN 31-10298
999WB18K5422 GE Oven Control Valve Wire Harness
999WB18K5490 GE Oven Door Switch Wire Harness
