JGRP17WEW1WW CONTROL PANEL

JGRP17WEW1WW CONTROL PANEL

Written by

in

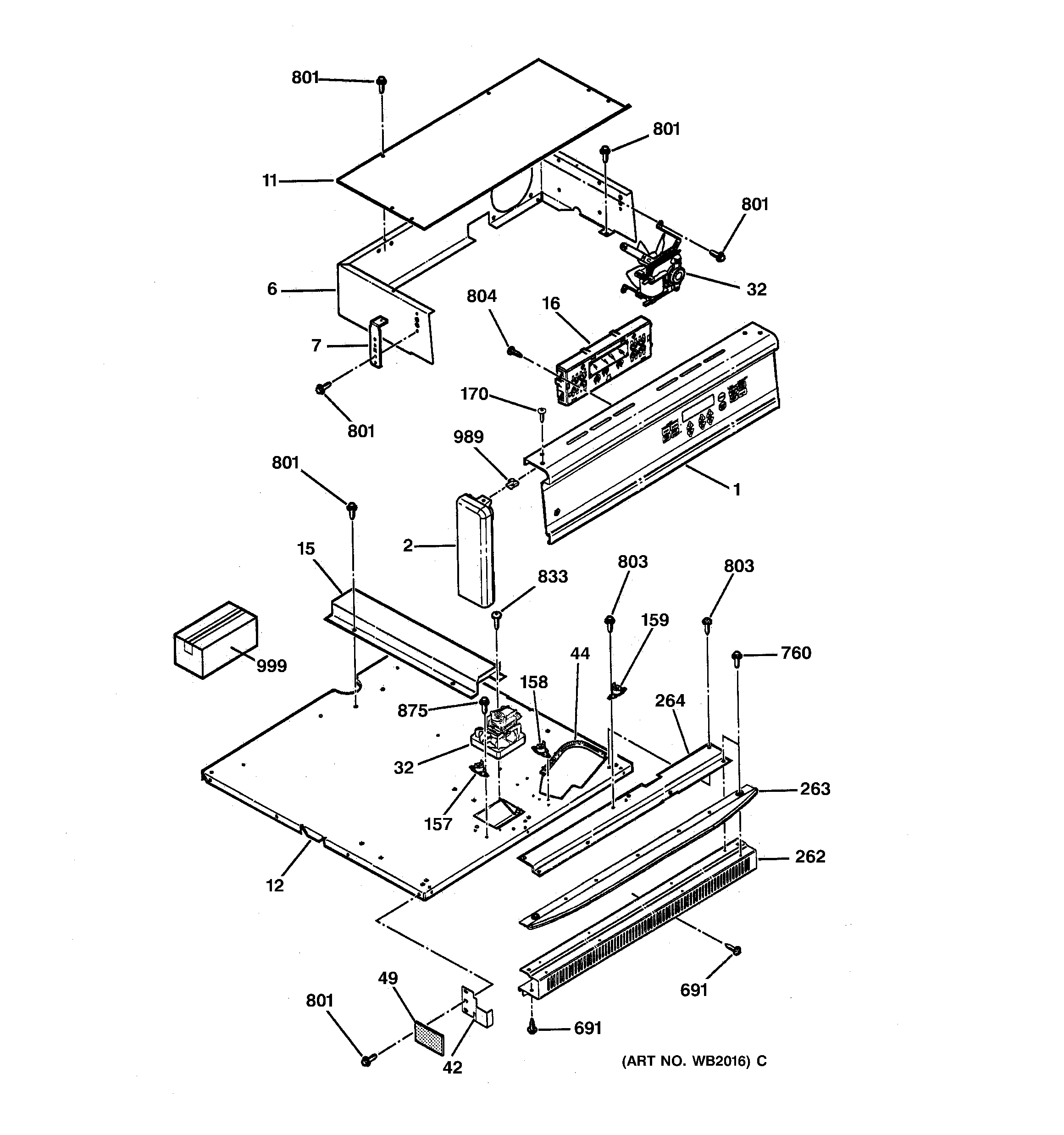

JGRP17WEW1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36K5703
2GEN WB36K5697
2GEN WB36K5696
6WB36K5699 GE Oven Control Panel Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12WB63K5198 GE Oven Cabinet Top
15WB2X9665 GE Wire Cover
16GEN WB27K5329
32WB26K5061 GE Oven Upper Fan Assembly
32WB26X114 GE Oven Lower Fan Assembly
42GEN WB34K5249
46WB34K5263 GE Wire Shield
49WB35K5129 GE Heat Shield Insulation
68SPACER FRT TRIM-WHITE
121GLASS OVEN DR OUTER-WHT
136GEN WB15K5088
140GEN WB56K5043
158WB24K5041 GE Oven Fan Limit Switch
158LIMIT SWITCH-TO CAB TOP
159WB24K5085 GE Oven Limit Switch
170WB1K58 GE Screw 8-18
213GEN WB02K5167
226WB15K5028 GE Oven Door Handle
231GEN WB35K5059
262GEN WB07K5021
263GEN WB07K5494
274LO FRAME TRIM-1"-WHITE
274LO FRAME TRIM-2 1/2"-WHT
397GEN WB07K5319
551WB18K5422 GE Oven Control Valve Wire Harness
690WB1K5167 GE Screw 8-18 X 3/8"
691WB1K5162 GE Oven Black Screw
691WB1K5177 GE Oven Trim Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
803GEN WB01K5163
803WB1X1149 GE Oven Screw
807WB1K5165 GE Oven Black Screw
808WB1X1116 GE Oven Screw
820WB1X1424D GE Oven Screw Package
821GEN WB01M0005
830WB1X1130 GE Oven Screw 10-32
833WB1X1131 GE Screw 6-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
890WB1X1118 GE Oven Screw 6-32T
896AIR SHUTTER SCREW-OVEN
909WB1X1173 GE Rivet
935WB1K5174 GE Oven Washer
938WB1K5209 GE Oven Clip
941GEN WB01X1399
950CABLE CLIP
967GEN WB02X9020
967GEN WB02X1422
999GEN 31-10155
999GEN 31-13332
999GEN WB18K5642
999GEN WB18K5600
999WB18K5490 GE Oven Door Switch Wire Harness
999USE CARE MANUAL
