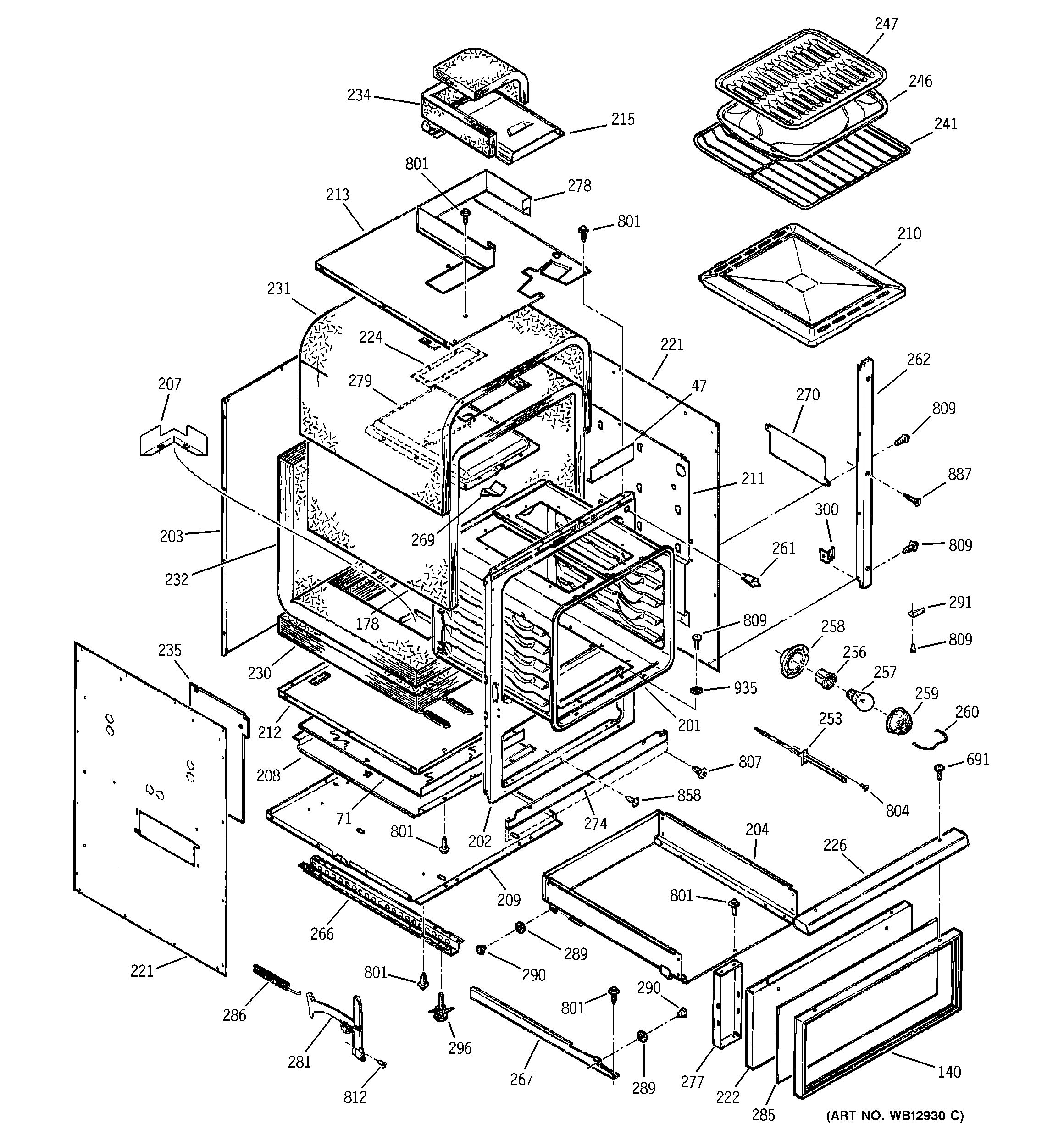

JGRP17WEW6WW BODY PARTS

JGRP17WEW6WW BODY PARTS

Written by

in

JGRP17WEW6WW BODY PARTS

Products

PositionProduct
47GEN WB38K5036
71GEN WB35K5128
140WB07T10062 GE Oven Lower Front Panel
140GEN WB55K5078
178GEN WB35K5059
201WB63T10020 GE Oven Body
202GEN WB63T10017
203GEN WB63K5095
204WB58T10002 GE Oven Storage Drawer Assembly
207WB34K5238 GE Bottom Insulation Cover
208WB34K5253 GE Compartment Shield
209WB63T10038 GE Main Bottom
210WB63T10019 GE Oven Bottom
211GEN WB02K5266
212WB2K5390 GE Insulation Retainer
213GEN WB02K5265
213WB02T10019 GE Oven Retainer Insulation Right Rear
215GEN WB38T10003
221GEN WB63K5099
222WB56T10006 GE Oven Lower Front Panel Assembly Black
224WB4K5005 GE Flue Gasket
226WB15K5028 GE Oven Door Handle
230GEN WB35K5056
231WB35K5124 GE Outer Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
234GEN WB35K5125
235GEN WB35K5064
241WB48T10094 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262WB07T10372 GE Vertical Side Trim
266GEN WB02X9634
267DRAWER GUIDE-RT
267WB39M3 GE Oven Drawer Assembly
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
274WB07T10371 GE Lower Front Trim Frame
274GEN WB07T10368
277WB55T10025 GE Oven Lower Panel Liner
278GEN WB34K5100
279WB38T10010 GE Vent Box
281GEN WB14K5006
281GEN WB14K5007
286UNKNOWN
289ROLLER
290ROLLER
291GEN WB02X9152
296GEN WB02X9635
300SPACER FRT TRIM (WHT)
691WB1K5162 GE Oven Black Screw
691WB1K5177 GE Oven Trim Screw
691GEN WB01K5192
691GEN WB01K5163
801WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB1K5166 GE White Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
858WB1K5167 GE Screw 8-18 X 3/8"
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
