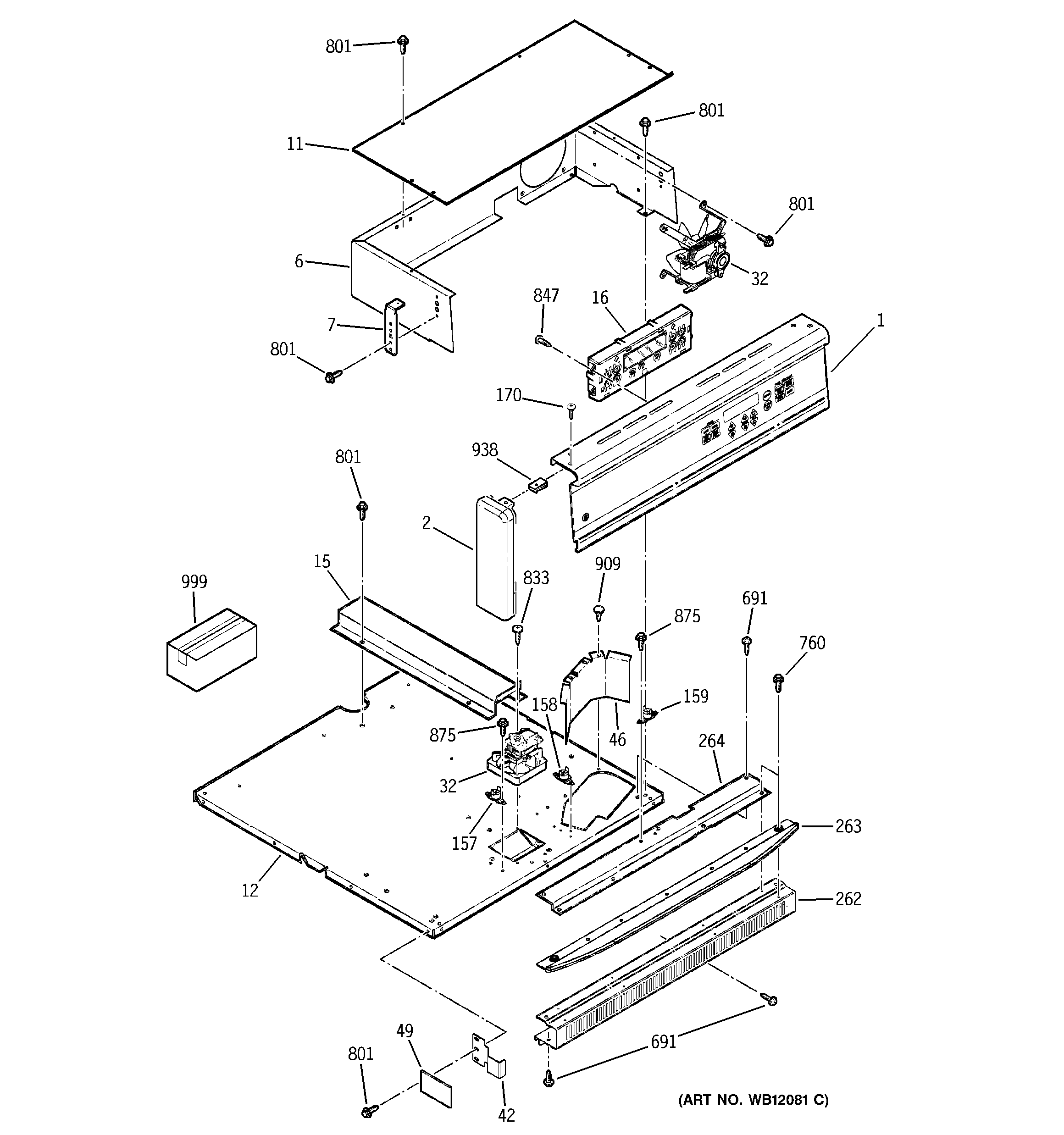

JGRP17WEW6WW CONTROL PANEL

Products

Position	Product
1	GEN WB36T10543
2	GEN WB36T10068
2	GEN WB36T10067
6	WB36K5699 GE Oven Control Panel Housing
7	WB2K5406 GE Bracket
11	WB37K5040 GE Top Control Housing
12	WB63K5198 GE Oven Cabinet Top
15	WB2X9665 GE Wire Cover
16	GEN WB27T10267
32	WB26X114 GE Oven Lower Fan Assembly
32	WB26K5061 GE Oven Upper Fan Assembly
42	GEN WB34K5249
46	WB34K5263 GE Wire Shield
49	WB35K5129 GE Heat Shield Insulation
157	LIMIT SWITCH-TO CAB TOP
158	WB24K5041 GE Oven Fan Limit Switch
159	WB24K5085 GE Oven Limit Switch
170	WB1K58 GE Screw 8-18
262	WB07T10372 GE Vertical Side Trim
263	GEN WB07K5494
691	WB1K5162 GE Oven Black Screw
691	GEN WB01K5192
691	WB1K5177 GE Oven Trim Screw
691	GEN WB01K5163
760	WB1X536 GE Oven Screw
801	WB1M1 GE Oven Screw
833	WB1X1131 GE Screw 6-32
847	WB1X1118 GE Oven Screw 6-32T
875	WH2X930 GE Screw
909	WB1X1173 GE Rivet
938	WB1K5209 GE Oven Clip
999	GEN 31-10298
999	USE CARE MANUAL
999	GEN WB18K5600
999	GEN WB18K5642
999	WB18K5490 GE Oven Door Switch Wire Harness
999	WB18K5422 GE Oven Control Valve Wire Harness
999	GEN 31-14049
