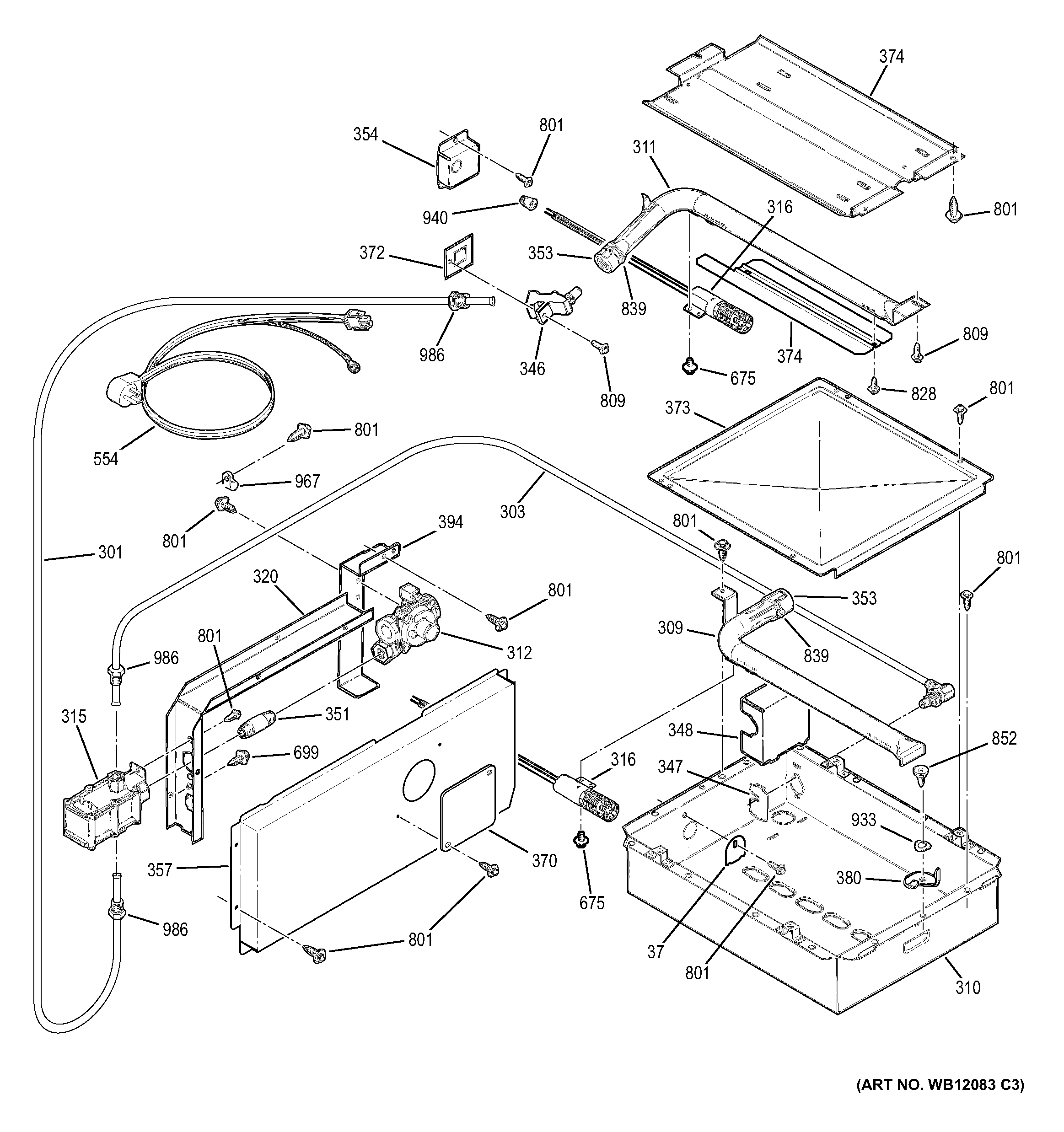

JGRP20WEJ2WW GAS & BURNER PARTS

JGRP20WEJ2WW GAS & BURNER PARTS

Written by

in

JGRP20WEJ2WW GAS & BURNER PARTS

Products

PositionProduct
37WB34K14 GE Igniter Cover
301GEN WB28K5021
303WB28K5026 GE Oven Tube Assembly
309WB16K5062 GE Oven Bake Burner
310WB64K5098 GE Burner Box Assembly
311WB16K5064 GE Oven Broiler Burner
312WB19T10079 GE Oven Regulator Convert Press
315WB20X126 GE Stove Range Gas Valve
316WB2X9154 GE Oven Igniter with 8" Leads
320WB34K5212 GE Valve Wire Cover
346GEN WB02X9646
347WB2X9163 GE Plate
348WB34T10096 GE Shield Orifice
351WB2X9611 GE 3/8" Nipple
353AIR SHUTTER-OVEN
354WB34K5257 GE Wire Cover Igniter
357WB34T10007 GE Regulator Cover
370WB34T10021 GE Regulator Cover Plate
372WB6K5043 GE Cover Chip
373WB34K5095 GE Oven Bottom Baffle
374WB34K5256 GE Oven Broiler Burner Baffle
380WB14X115 GE Oven Latch
394WB2K5343 GE Regulator Support
554WB8K5039 GE Range Power Cord
675WB1K5213 GE Oven Screw
699WB1M1 GE Oven Screw
801WB01M10002 GE Oven Screw
809WB1X1137 GE Oven Screw
828WB1X1141 GE Oven Screw 8-32
839AIR SHUTTER SCREW-OVEN
852WB01T10009 GE Screw 10-16 Shoulder Type A
933GEN WB01X1256
940WB1X371D Package of 12 Ceramic Wire Connector
967GEN WB02X9020
986NUT
