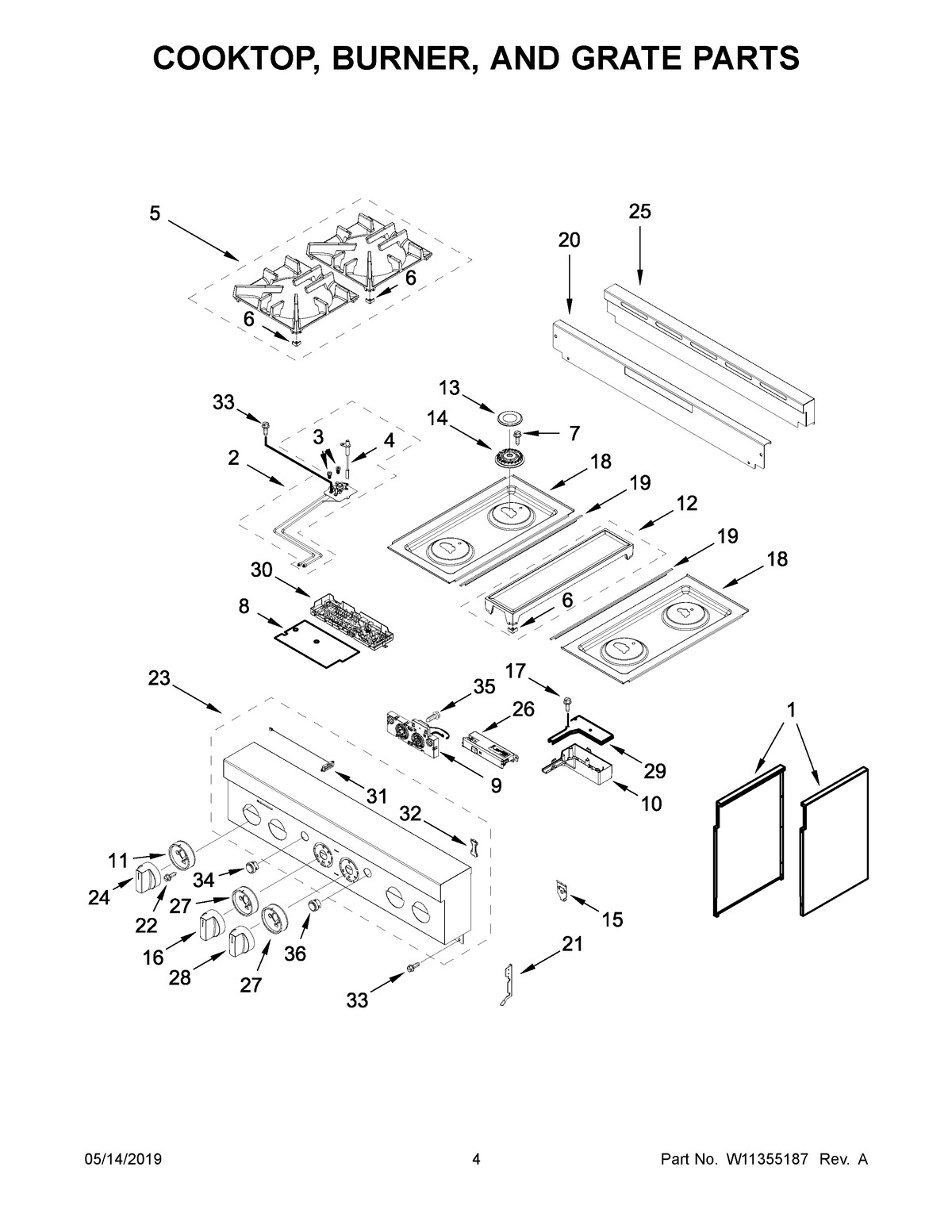

JGRP430HL00 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

Position	Product
1A	MAY W11106880
1	MAY W11106881
2	MAY W10892793
2A	MAY W10892494
2B	MAY W10892475
2C	MAY W10892730
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095712
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	MAY W11179866
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	MAY W11092267
17	SCREW
18	PANEL, COOKTOP (BLACK (LEFT))
18A	MAY W10804371
19	TRIM, T-STRIP
20	MAY W10323248
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253776
24	KNOB, BURNER (STAINLESS)
25	MAY W11183085
26	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	MAY W11100274
31	ANTENNA, WIFI
32	ASSEMBLY, LIGHT PIPE
33	MAY 7101P426- 60
34	BUTTON ASSEMBLY, OVEN LIGHT
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
