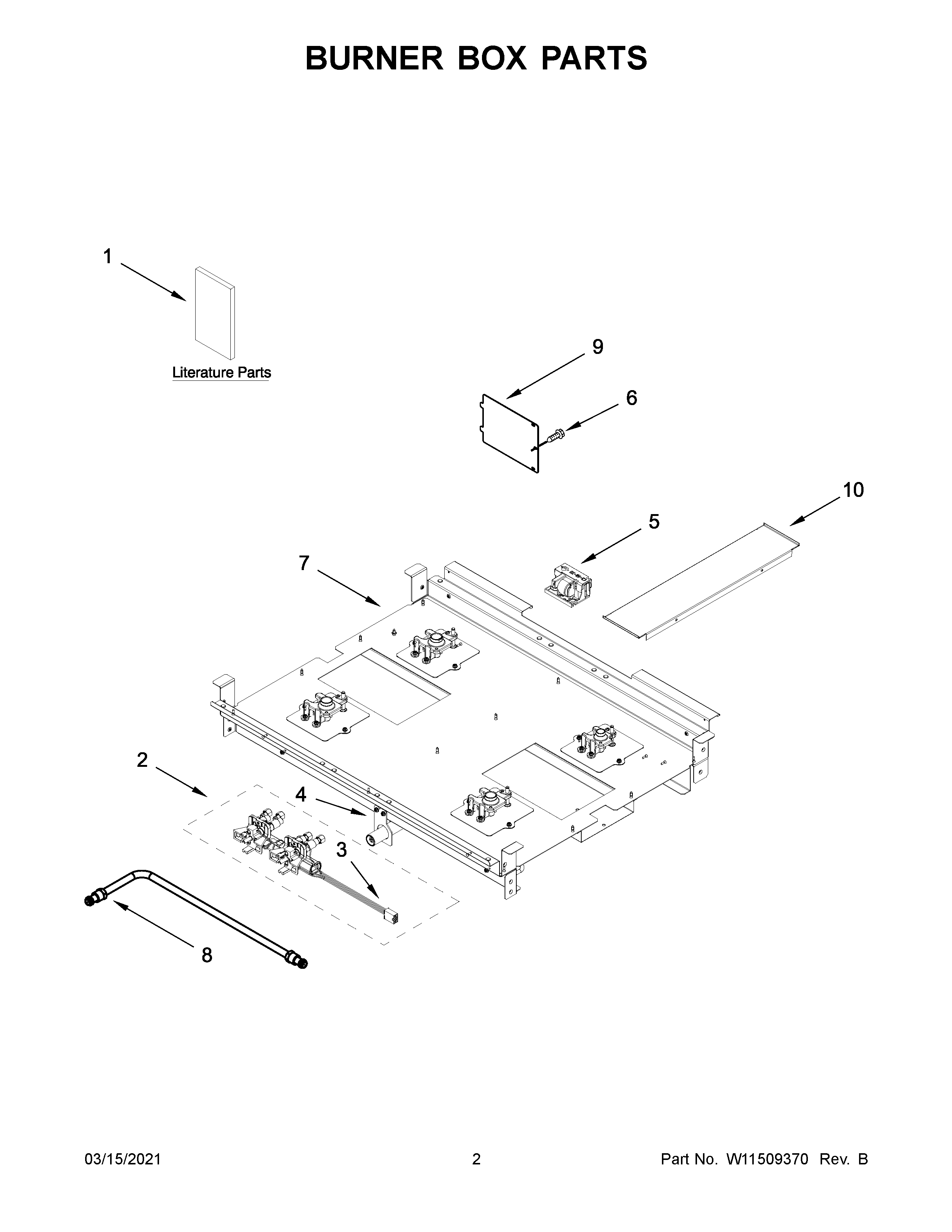

JGRP430HL01 02 – BURNER BOX PARTS

Products

Position	Product
NI	HARNESS, MAIN (30")
NI	HARNESS, COOKTOP
NI	W11317791 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	SCREW, ANTI-TIP KIT
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11428599 Whirlpool Conversion Kit
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	W11446236 Whirlpool Wire Harness
1D	DIAGRAM, WIRING (OVEN)
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
1B	GUIDE, QUICK START
1E	SHEET, TECH
1C	GUIDE, INTERNET CONNECTIVITY
2	W11320025 Whirlpool Manifold
2A	W11320019 Whirlpool Manifold
3	W11320016 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	W10115843 Whirlpool Access Cover
10	FILLER, COOKTOP
