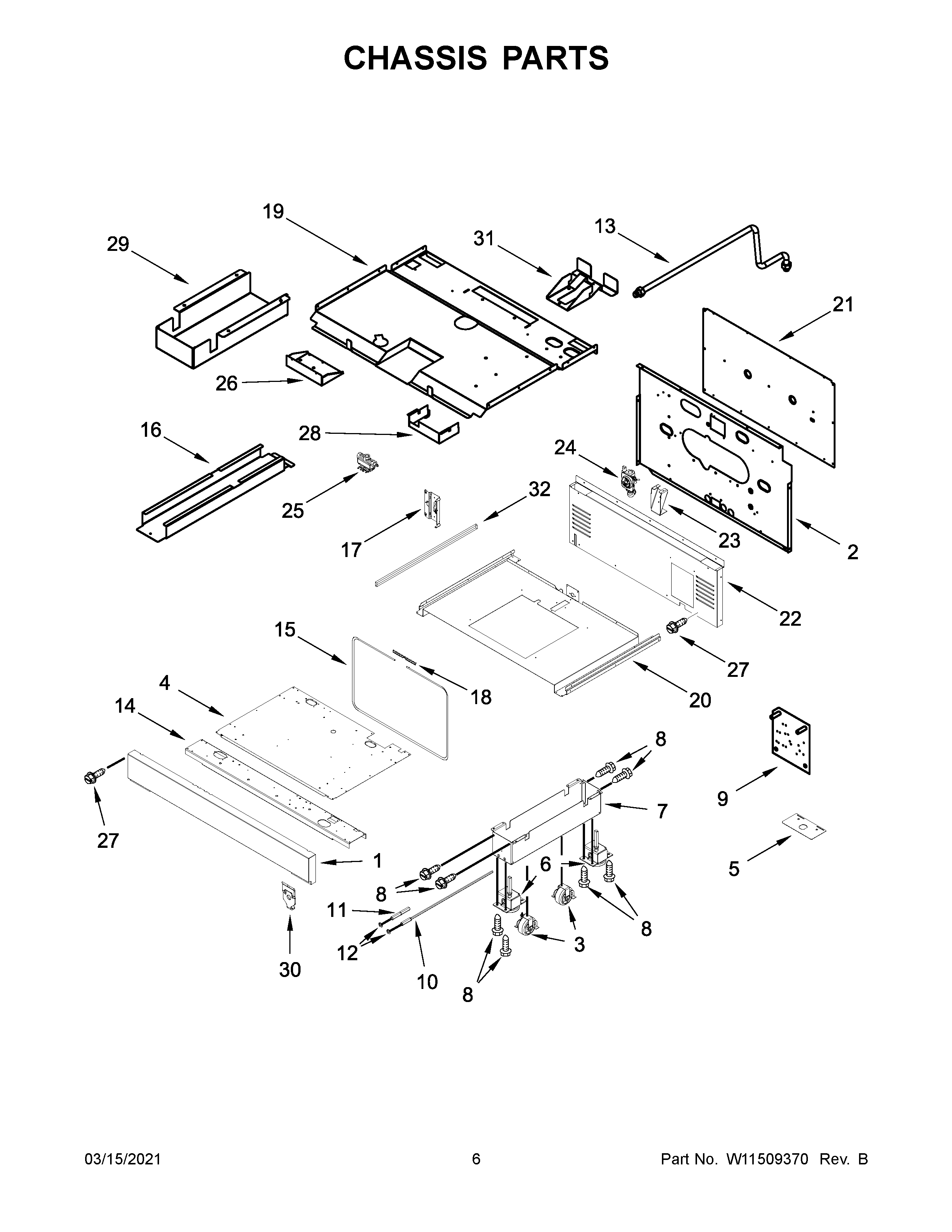

JGRP430HL01 04 – CHASSIS PARTS

JGRP430HL01 04 – CHASSIS PARTS

Written by

in

JGRP430HL01 04 – CHASSIS PARTS

Products

PositionProduct
1W11335272 Whirlpool Cover Plate
2BACK, CHASSIS
3WPW10138054 Whirlpool Refrigerator Cabinet Roller
4DUCT, BOTTOM (30 IN)
5W10115855 Whirlpool Support Bracket
6W10859931 Whirlpool Foot Level
7W10908710 Whirlpool Mounting Bracket
8WP4449743 Whirlpool Screw
9WPW10511278 Whirlpool Spark Module
10W10115869 Whirlpool Shaft
11W10115793 Whirlpool Shaft
12489504 Whirlpool Oven Ring
13W11364214 Whirlpool Gas Tubing
14SUPPORT, CHANNEL
15W11675844 Whirlpool Oven Gasket
16W11050145 Whirlpool HVAC Air Duct
17W10145362 Whirlpool Control Bracket
18W11362015 Whirlpool Retainer
19TOP, CHASSIS
20CHASSIS, BOTTOM
21PANEL, BACK TOP
22PANEL, BACK BOTTOM
23W11320155 Whirlpool Mounting Bracket
24W11193822 Whirlpool Regulator
25W11239228 Whirlpool Gas Valve
26DRAWER, APPLIANCE MANAGER
27SCREW
28CABINET, APPLIANCE MANAGER
29CHANNEL, WIRE
30W11318207 Whirlpool Clip Assembly
31W11190223 Whirlpool Bracket Assembly
32W11175143 Whirlpool Gasket
