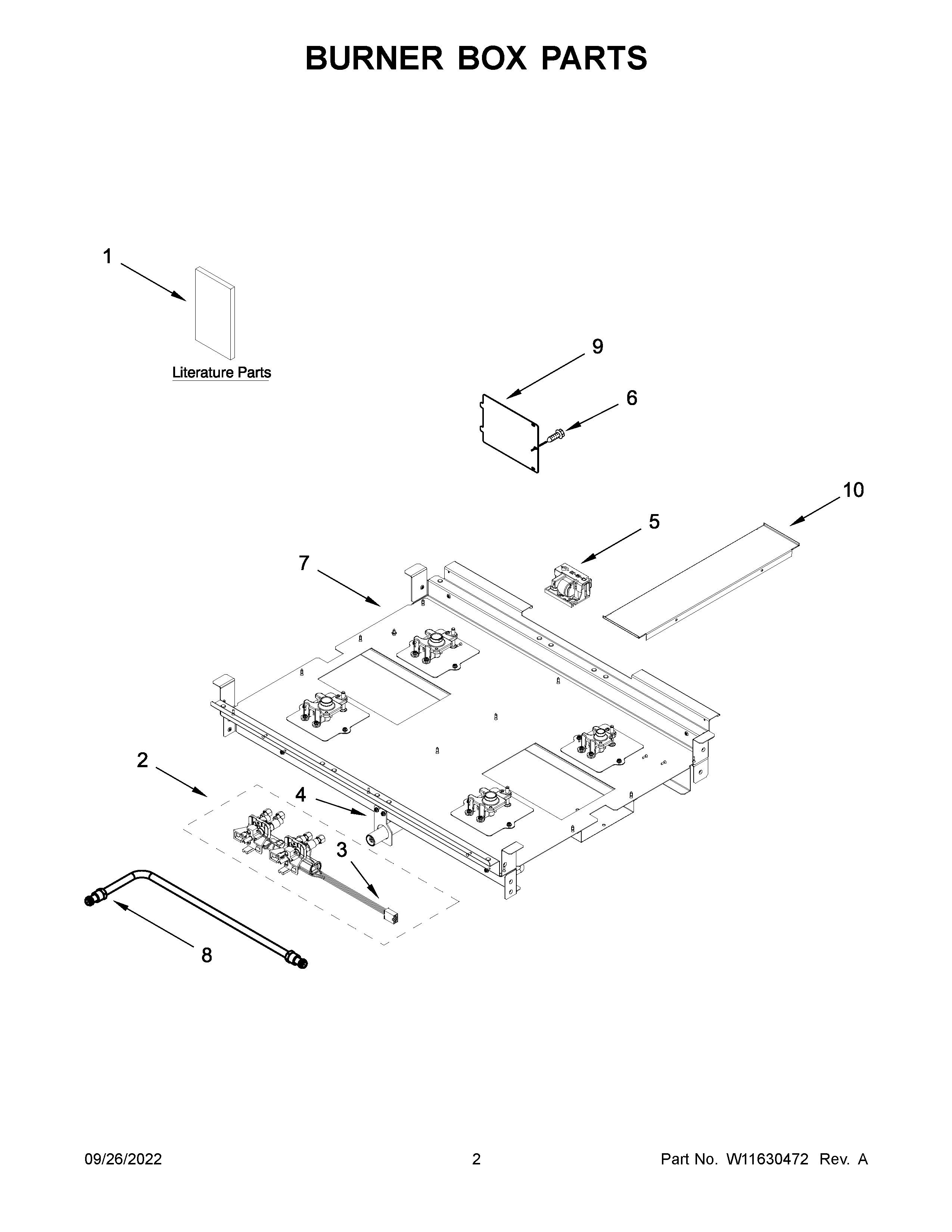

JGRP430HL05 02 – BURNER BOX PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W10780278 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	W11317791 Whirlpool Wire Harness
NI	HARNESS, COOKTOP
NI	W11200325 Whirlpool Wire Harness
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	16515 Whirlpool Clip
NI	W11446236 Whirlpool Wire Harness
NI	W11428599 Whirlpool Conversion Kit
1F	SHEET, TECH
1E	DIAGRAM, WIRING (OVEN)
1D	DIAGRAM, WIRING (COOKTOP)
1B	GUIDE, QUICK START
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1C	GUIDE, INTERNET CONNECTIVITY
2	W11320025 Whirlpool Manifold
2A	W11320019 Whirlpool Manifold
3	W11320016 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	W10115843 Whirlpool Access Cover
10	FILLER, COOKTOP
