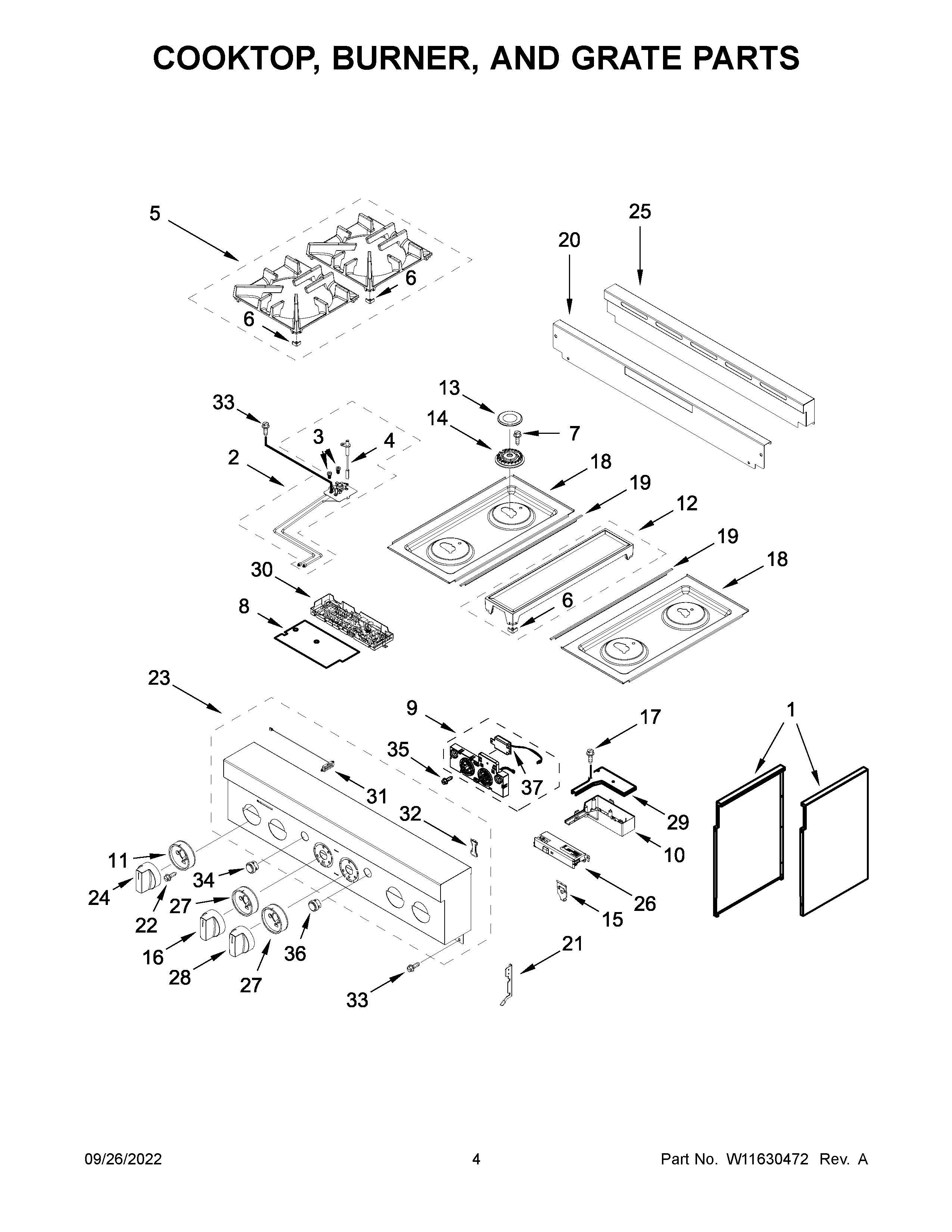

JGRP430HL05 03 – COOKTOP, BURNER, AND GRATE PARTS

JGRP430HL05 03 – COOKTOP, BURNER, AND GRATE PARTS

Written by

in

JGRP430HL05 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

Position	Product
1	W11333179 Whirlpool Side Assembly
1A	W11333303 Whirlpool Side Complete Assembly
2B	W11333307 Whirlpool Orifice Holder
2	W11333305 Whirlpool Holder Orifice
2A	W11333306 Whirlpool Orifice Holder Assembly
2C	W11333309 Whirlpool Orifice Holder
3C	W11661909 Whirlpool Range Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3A	W10892418 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
3D	W10892429 Whirlpool Orifice Spud
4A	W11238756 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5	W11515370 Whirlpool Burner Grate
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492291 Whirlpool Electronic Control Board + Core
10	COVER, WIFI OUTER
11	BEZEL-KNOB
12	WPL W11291175
13	W11328971 Whirlpool Burner Cap
14	W11319683 Whirlpool Burner Head
14A	W11319673 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11574370 Whirlpool Knob
17	WPL 7101P62460
18	W11316696 Whirlpool Cooktop
18A	W11334155 Whirlpool Cooktop
19	W10271524 Whirlpool Trim Top
20	W10323248 Whirlpool Top Trim
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	W11509770 Whirlpool Screw
23	W11289589 Whirlpool Control Panel
24	W11574368 Whirlpool Knob
25	W11477029 Whirlpool Top Trim
26	W11234290 Whirlpool Electronic Control Board
27	W11317499 Whirlpool Knob Bezel
28	W11574369 Whirlpool Range Knob
29	WPL W11205794
30	W11620689 Whirlpool Electronic Control Board + Core
31	W11318855 Whirlpool Antenna
32	WPL W10896369
33	SCREW
34	W11318857 Whirlpool Push Button
35	WP3400814 Whirlpool Screw
36	W11319196 Whirlpool Push Button
37	W11123146 Whirlpool Speaker
