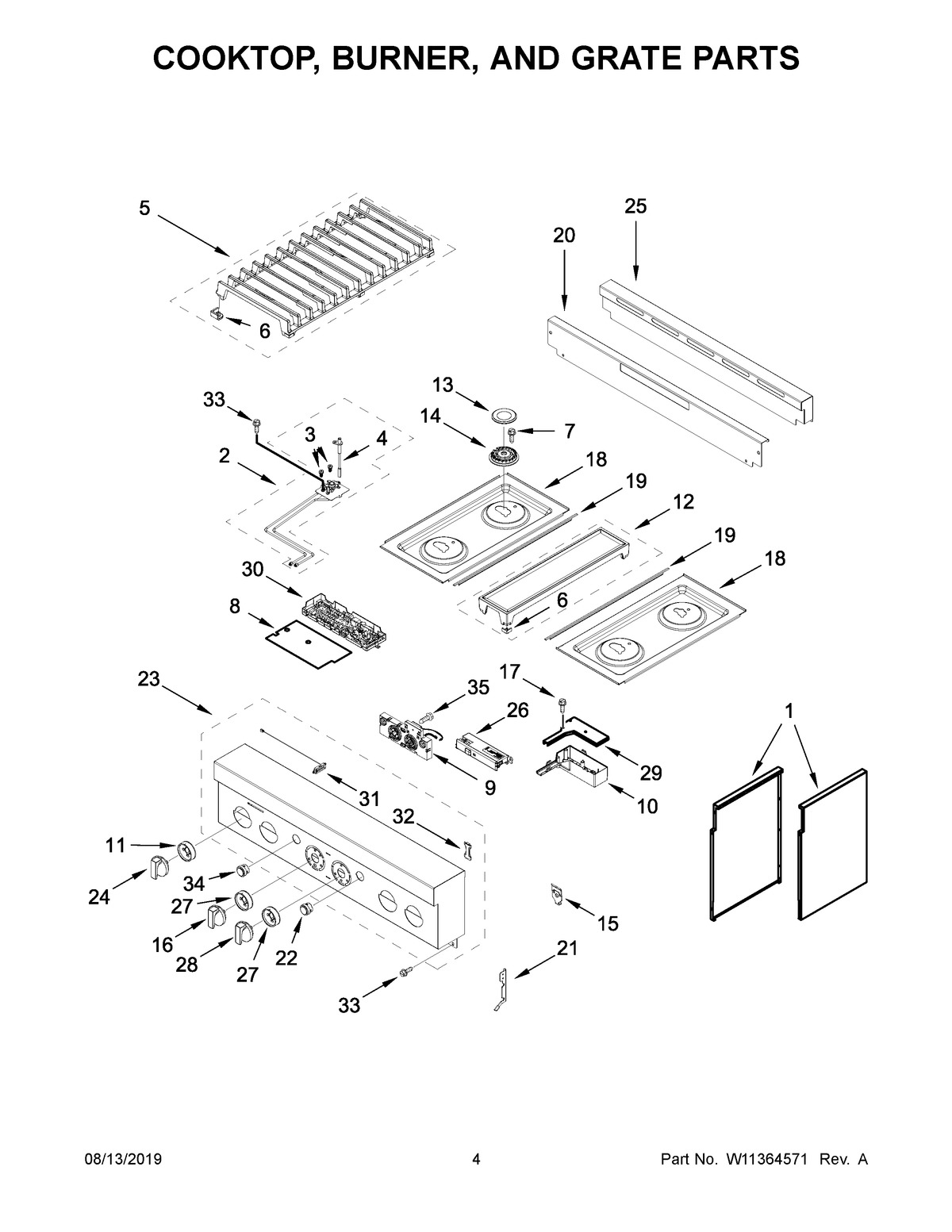

JGRP430HM00 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2	MAY W10892793
2C	MAY W10892730
2B	MAY W10892475
2A	MAY W10892494
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	MAY W11323260
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095712
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	MAY W11172800
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	MAY W11317854
17	SCREW
18A	PANEL, COOKTOP (BLACK) (RIGHT)
18	PANEL, COOKTOP (BLACK) (LEFT)
19	TRIM, T-STRIP
20	MAY W10323248
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	BUTTON ASSEMBLY, OVEN START
23	MAY W11253776
24	KNOB, BURNER (STAINLESS)
25	MAY W11183085
26	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	MAY W11100274
31	ANTENNA, WIFI
32	ASSEMBLY, LIGHT PIPE
33	MAY 7101P426- 60
34	BUTTON ASSEMBLY, OVEN LIGHT
35	SCREW
