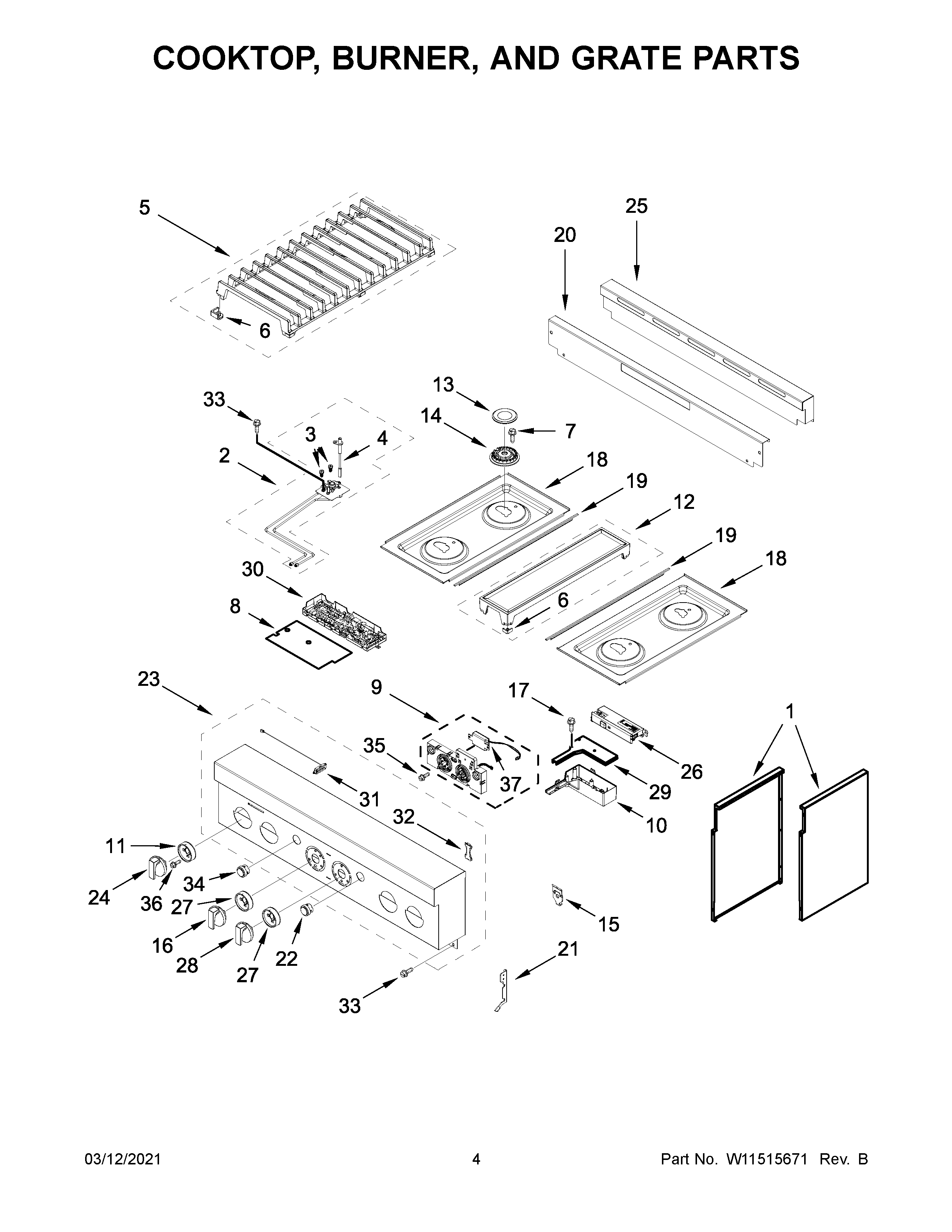

JGRP430HM01 03 – COOKTOP, BURNER, AND GRATE PARTS

JGRP430HM01 03 – COOKTOP, BURNER, AND GRATE PARTS

Written by

in

JGRP430HM01 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2BW11333307 Whirlpool Orifice Holder
2W11333305 Whirlpool Holder Orifice
2AW11333306 Whirlpool Orifice Holder Assembly
2CW11333309 Whirlpool Orifice Holder
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
3DW10892429 Whirlpool Orifice Spud
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5W11516449 Whirlpool Grate Burner
5AW11516462 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492291 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11W11317889 Whirlpool Knob Bezel
12W11516488 Whirlpool Burner Grate Assembly
13W11328971 Whirlpool Burner Cap
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11397970 Whirlpool Knob Assembly
17WPL 7101P62460
18W11316700 Whirlpool Cooktop
18APANEL, COOKTOP (BLACK (RIGHT))
19W10271524 Whirlpool Trim Top
20W10323248 Whirlpool Top Trim
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22W11319196 Whirlpool Push Button
23W11289589 Whirlpool Control Panel
24W11317537 Whirlpool Knob
25W11477029 Whirlpool Top Trim
26W11234290 Whirlpool Electronic Control Board
27W11317892 Whirlpool Bezel Knob
28W11317539 Whirlpool Knob
29WPL W11205794
30W11356591 Whirlpool Electronic Control Board + Core
31W11318855 Whirlpool Antenna
32WPL W10896369
33SCREW
34W11318857 Whirlpool Push Button
35WP3400814 Whirlpool Screw
36W11509770 Whirlpool Screw
37W11123146 Whirlpool Speaker
