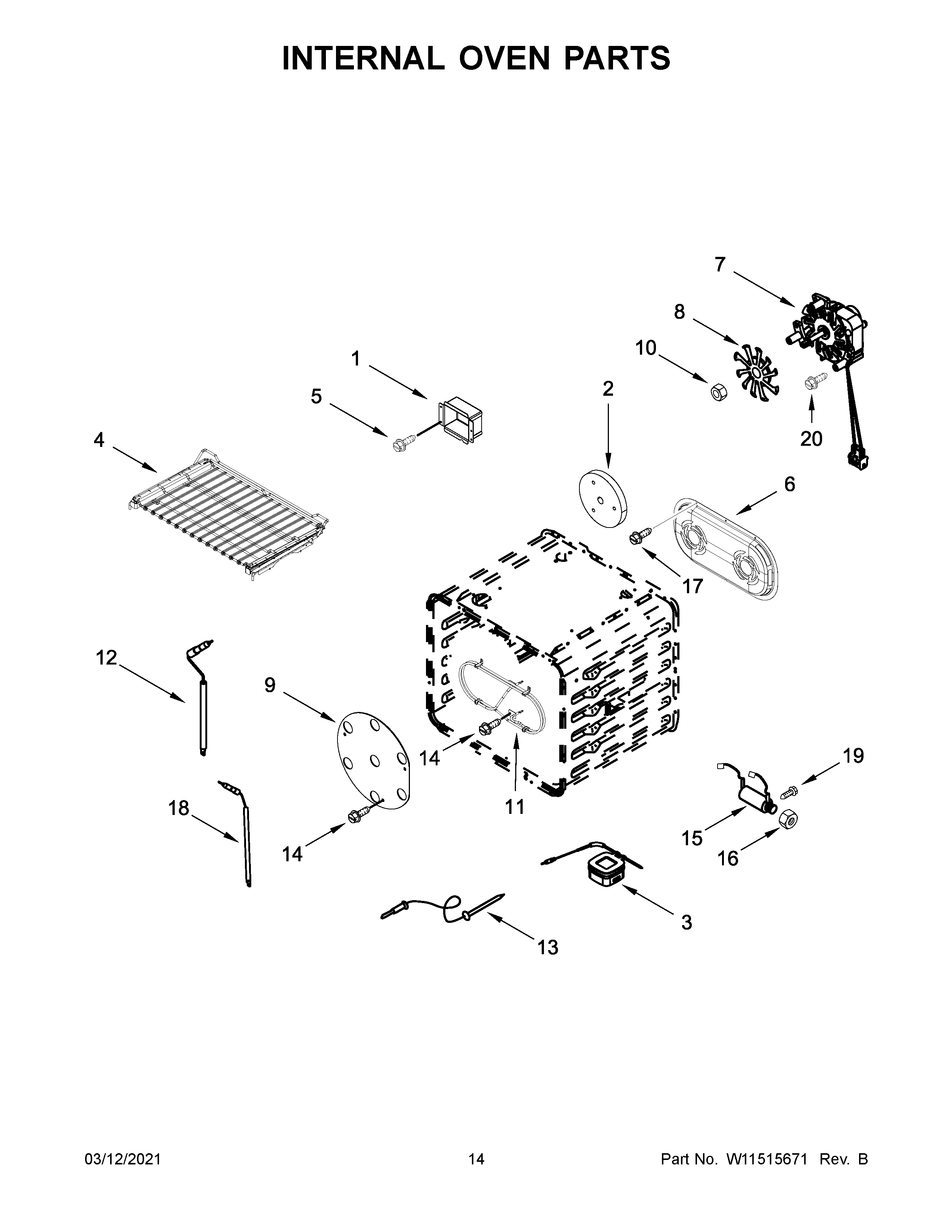

JGRP430HM01 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W10308051 Whirlpool Burner Box
2	W11688507 Whirlpool Insulation
3	W11318341 Whirlpool Meat Probe
4	W11563568 Whirlpool Oven Rack
5	SCREW
6	W11232487 Whirlpool Convection Baffle
7	W10794440 Whirlpool Fan Motor
8	W11320150 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W11033310 Whirlpool Heating Element
12	W11355920 Whirlpool Surface Igniter
13	WP9755542 Whirlpool Oven Meat Probe
14	WP4449154 Whirlpool Screw
15	8186589 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	SCREW
18	W11355922 Whirlpool Surface Igniter
19	WP12992902 Whirlpool Refrigerator Screw
20	W10850807 Whirlpool Screw
