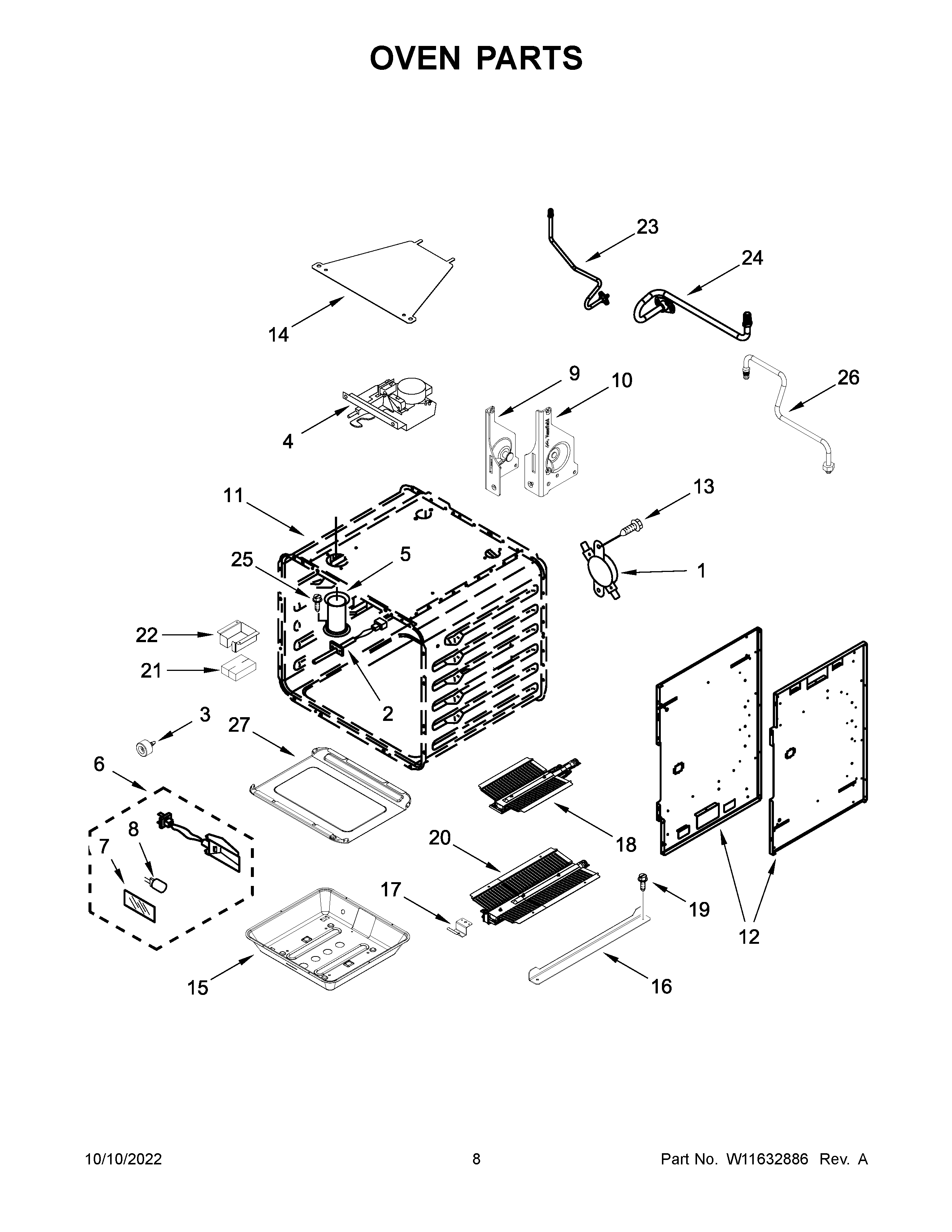

JGRP430HM05 05 – OVEN PARTSadmin2025-04-26T11:51:39+00:00JGRP430HM05 05 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP (30 IN) |
| NI | INSULATION, BOTTOM |
| NI | INSULATION, BACK, (30 IN) |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | WP3400968 Whirlpool Nut |
| 1 | WP4450249 Whirlpool Thermostat |
| 2 | W10859573 Whirlpool Range Oven Temperature Sensor |
| 3 | WPW10351278 Whirlpool Bumper |
| 4 | W11029221 Whirlpool Door Latch |
| 5 | TUBE, VENT |
| 6 | W11233684 Whirlpool Oven Light Assembly |
| 7 | W10169756 Whirlpool Light Lens |
| 8 | BULB-LIGHT |
| 9 | RECEIVER, HINGE (LEFT) |
| 10 | RECEIVER, HINGE (RIGHT) |
| 12A | CHASSIS, SIDE (RIGHT) |
| 12 | W11320145 Whirlpool Cabinet Panel |
| 13 | SCREW |
| 14 | W10160858 Whirlpool Lid Cover |
| 15 | WPW10145744 Whirlpool Support |
| 16 | W10317437 Whirlpool Support Assembly |
| 17 | W10308040 Whirlpool Pan Bracket |
| 18 | W11643161 Whirlpool Oven Burner |
| 19 | SCREW |
| 20 | W11661180 Whirlpool Burner Broiler |
| 21 | INSULATION, BROIL COVER |
| 22 | W10310985 Whirlpool Access Cover |
| 23 | W11355244 Whirlpool Gas Tubing |
| 24 | W11355919 Whirlpool Range Gas Tubing |
| 25 | SCREW |
| 26 | TUBE, GAS |
| 27 | W11661576 Whirlpool Oven Bottom Pan |
