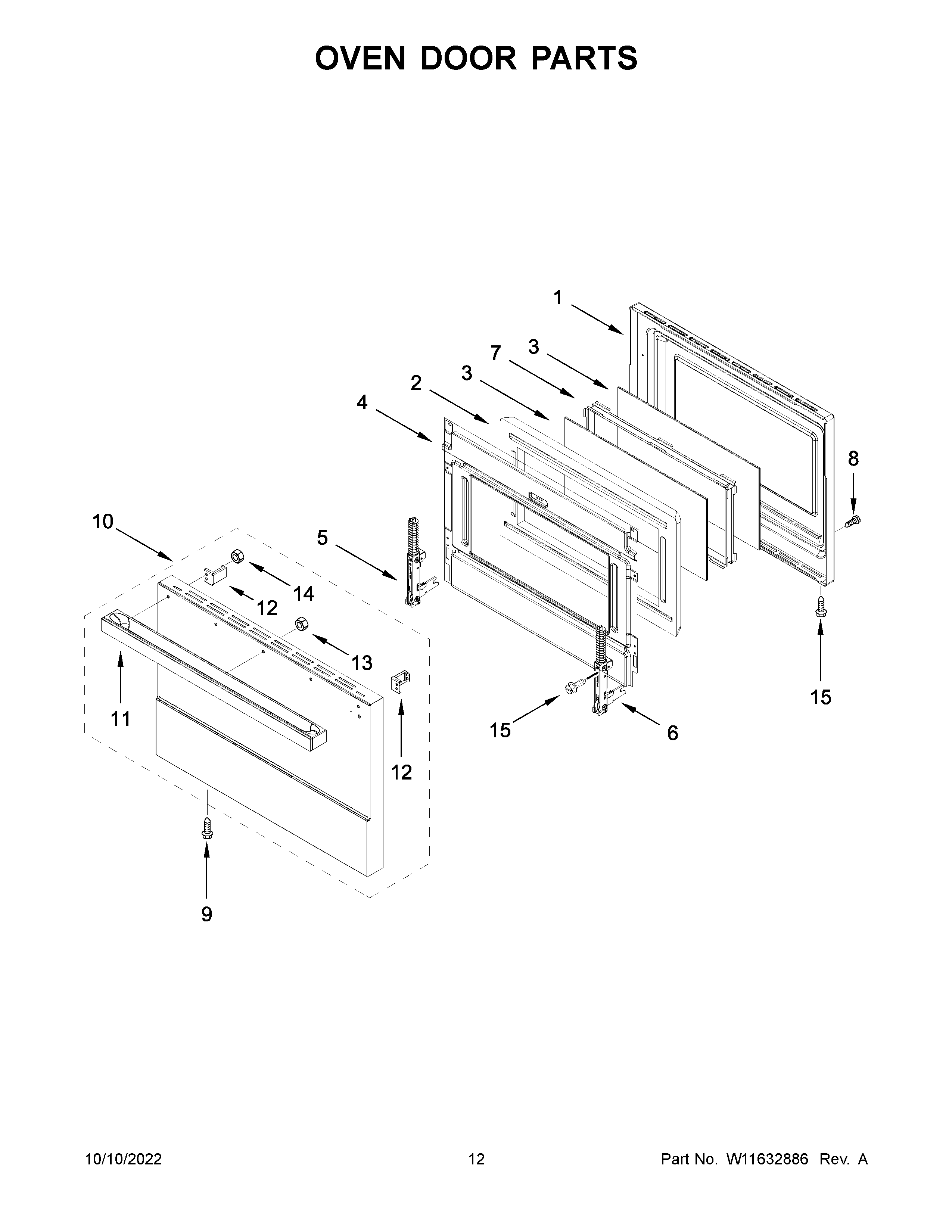

JGRP430HM05 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11318831 Whirlpool Glass Frame
2	INSULATION, DOOR (30 IN)
3	W11318823 Whirlpool Door Glass
4	RETAINER, GLASS
5	W11568941 Whirlpool Door Hinge Assembly
6	W11568813 Whirlpool Door Hinge
7	WPW10272594 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10162096 Whirlpool Screw
10	W11315556 Whirlpool Glass Door
11	HANDLE, DOOR
12	W11317894 Whirlpool Mounting Bracket
13	NUT
14	NUT
15	W11193480 Whirlpool Screw
