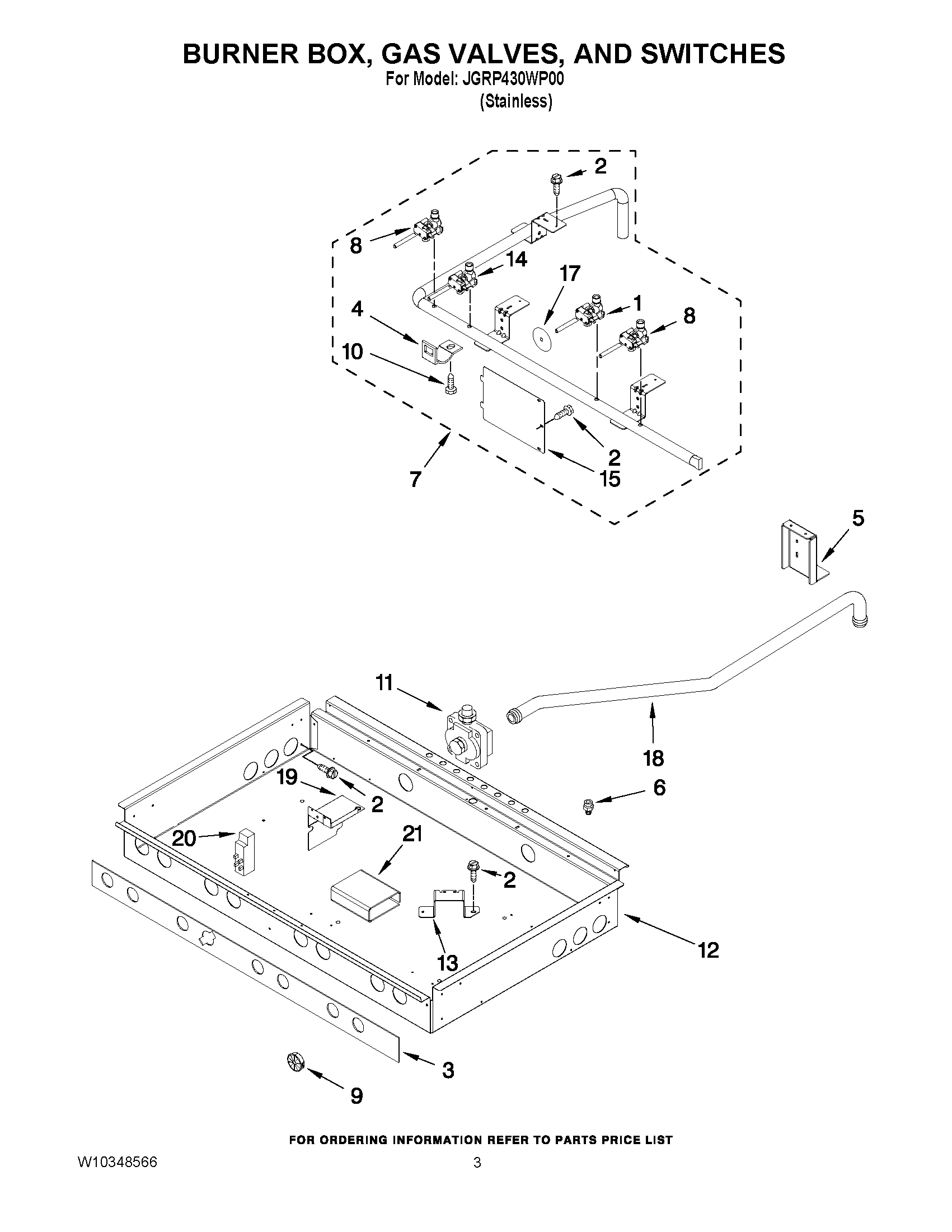

JGRP430WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIMAY W10145480
NIMAY W10276501
NITUBING, GAS (RF – RIGHT)
NIMAY W10145481
NIMAY W10145479
1VALVE, GAS (LF & RF)
2MAY 7101P426- 60
3MAY W10276534
4MAY W10189107
5MAY W10308042
6ADAPTER, FEMALE
7MAY W10145506
8VALVE, SINGLE LR,CF,RR
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10145584
12MAY W10272891
13BRACKET, BURNER (CR)
13BRACKET, BURNER (RF,RR,CF,LR,LF)
14VALVE, SINGLE (CR)
15MAY W10115843
17MAY W10189177
18MAY W10348600
19MAY W10325491
20MAY 7431P038-60
21INSULATION, SPARK MODULE
