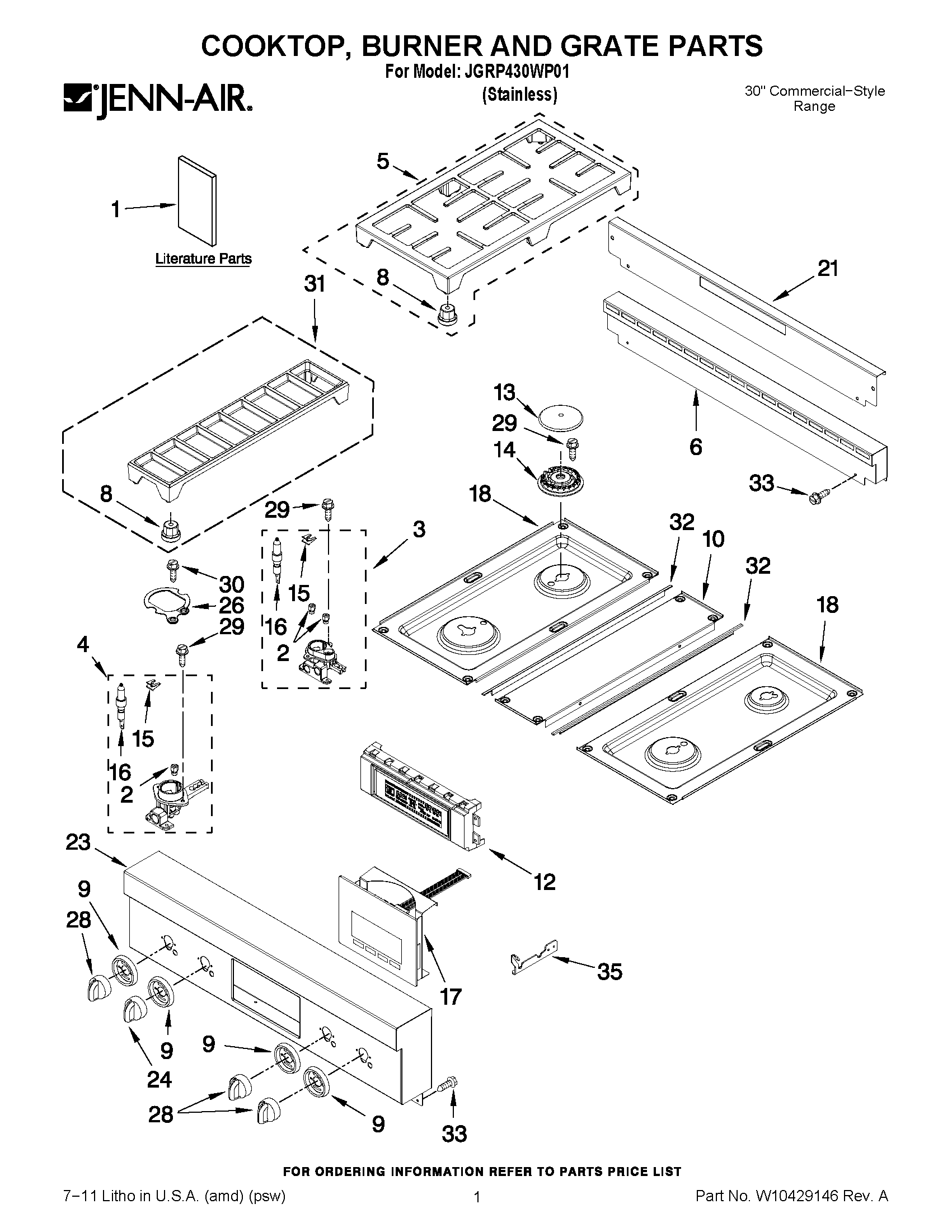

JGRP430WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	MAY W10399389
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10403309
1	MAY W10403308
1	MAY W10394575
2	ORIFICE (LF-HIGH)
2	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2	ORIFICE (LF-LOW)
2	ORIFICE (CR)
3	ORIFICE HOLDER (DUAL-LF)
4	MAY W10364556
4	ORIFICE HOLDER (RR)
5	MAY W10276551
6	MAY W10323247
8	RUBBER, FOOT
9	MAY W10276494
10	MAY W10189105
12	MAY W10344181
13	MAY W10256034
13	MAY W10364463
13	MAY W10256032
14	BURNER, HEAD (LF)
14	BURNER HEAD (RR)
14	BURNER, HEAD (LR,RF)
15	SPRING, ELECTRODE (RR)
15	MAY W10256046
16	ELECTRODE (LR, RF & RR)
16	ELECTRODE, WIRE
17	ASSEMBLY, POWER SUPPLY
18	MAY W10352968
18	MAY W10352969
21	MAY W10323248
23	MAY W10295784
24	KNOB, CONTROL LF
26	MAY 8286930
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	MAY 3196160
31	MAY W10276495
32	TRIM, T-STRIP
33	SCREW (8BX3/8-NI)
35	BRACKET,CONSOLE (LEFT)
35	BRACKET,CONSOLE (RIGHT)
