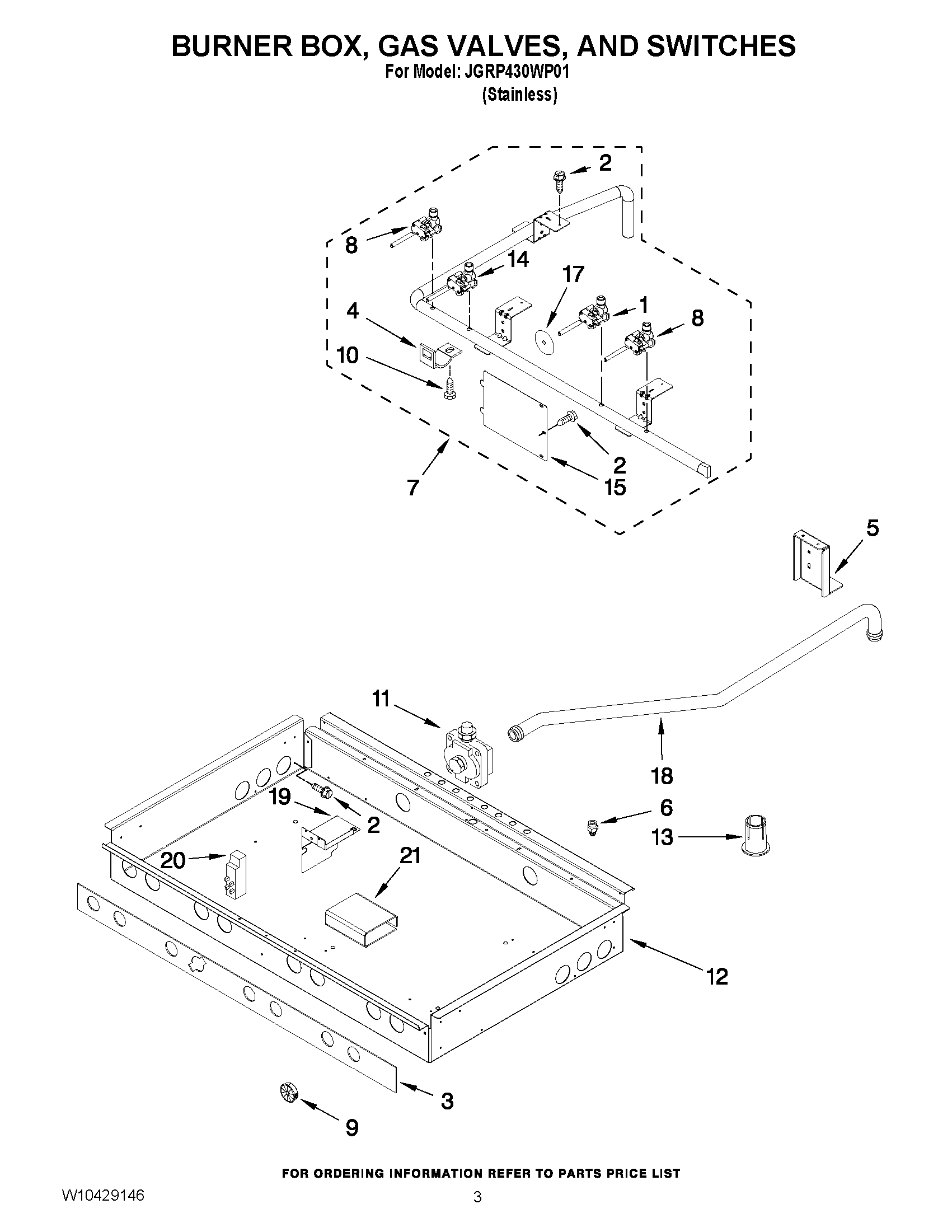

JGRP430WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LR)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LF-RIGHT)
NIMAY W10276501
NIMAY W10368335
1VALVE, GAS (LF)
2MAY 7101P426- 60
3MAY W10276534
4MAY W10189107
5MAY W10308042
6ADAPTER, FEMALE
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10145584
12MAY W10371518
13MAY WW10340850
14VALVE, SIMMER
15MAY W10115843
17MAY W10423373
18MAY W10348600
19MAY W10367054
20MAY 7431P038-60
21INSULATION, SPARK MODULE
