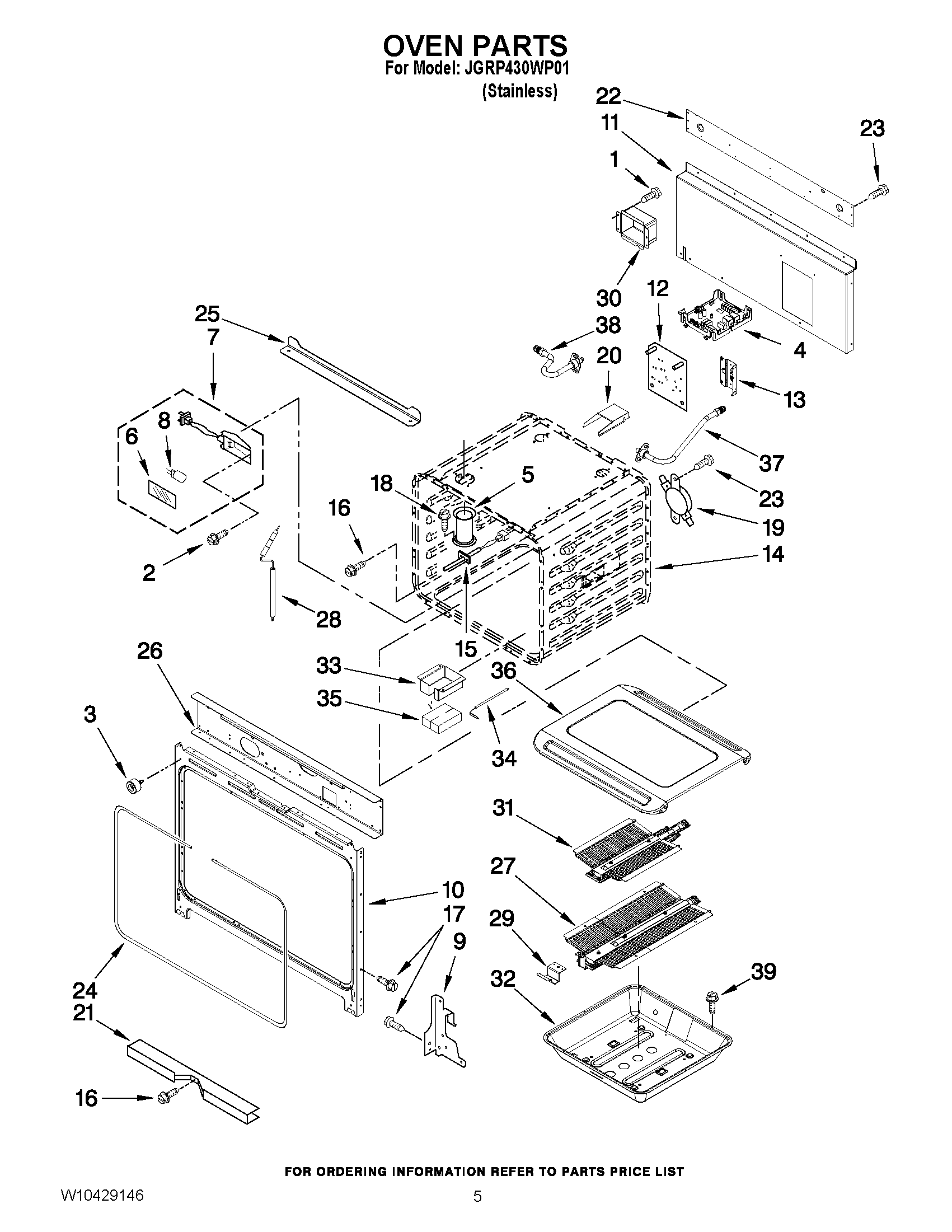

JGRP430WP01 03 – OVEN PARTS

JGRP430WP01 03 – OVEN PARTS

Written by

in

JGRP430WP01 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP, 30“
NI	MAY W10299354
NI	MAY W10299350
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10335645
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455606
9	MAY 4455605
10	MAY W10115831
11	MAY W10145392
12	MAY 9758080
13	MAY W10145362
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
20	DRAWER
21	MAY W10157511
22	MAY W10321813
23	MAY 7101P426- 60
24	MAY W10160890
25	MAY W10317437
26	MAY W10145377
27	MAY W10311335
28	MAY W10332287
29	MAY W10308040
30	MAY W10308051
31	MAY W10311409
32	SUPPORT, BAKE PAN
33	MAY W10310985
34	MAY W10332290
35	MAY W10311009
36	BOTTOM, OVEN GAS
37	MAY W10145716
38	MAY W10145715
39	MAY W10272525
